Total Number of Ports:
2
Management Port:
Yes
Number of Network (RJ-45) Ports:
1
Number of Serial Ports:
1
Number of RJ-48 Ports:
1
Adtran Parts Accessory Model Overview
Products and parts from Adtran.

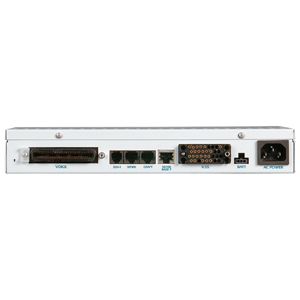

Adtran 4203680L1#TDM Data Networking Overview
With millions of small to medium sized enterprises existing today, the requirement for carriers to provide integrated voice and data solutions is growing at a rapid rate. ADTRAN delivers with the Total Access System of Multiservice Access Platforms and Integrated Access Devices. The Total Access 608 is cost effective, fixed-port, integrated access devices designed to support TDM. These systems offer enterprise users and integrated communications providers, such as CLECs, ILECs, and ISPs, a means to offer combined voice and data traffic over a single network interface terminating at the customer's premises.
The Total Access 608 provides eight fixed analog voice interfaces. These analog FXS interfaces support the stringent design and full feature set required by today's carriers. Total Access 608 provide a builtin IP router and an integrated Nx56/64 V.35 port for synchronous data applications, allowing the customer to combine a broad variety of voice and dataservices into a single platform. The Total Access 608 are compatible with industry leading VoBB Gateways. The FXS interfaces support all popular CLASS features.
The Total Access 608 provides eight fixed analog voice interfaces. These analog FXS interfaces support the stringent design and full feature set required by today's carriers. Total Access 608 provide a builtin IP router and an integrated Nx56/64 V.35 port for synchronous data applications, allowing the customer to combine a broad variety of voice and dataservices into a single platform. The Total Access 608 are compatible with industry leading VoBB Gateways. The FXS interfaces support all popular CLASS features.
Interfaces/Ports
Media & Performance
Carrier Supported:
T-carrier
Network & Communication
Network Technology:
- 10/100Base-TX
- T1
Management & Protocols
Security Features:
- PAP, CHAP, EAP and Radius
- NAT with multi-point to single-point
- Future support for NAT multi-point to multi-point
- PAT with DHCP
- Filtering (Pattern, IP, Bridge)
- Password protection
Power Description
Input Voltage:
110 V AC
Physical Characteristics
Form Factor:
- Wall Mountable
- Desktop
Height:
2"
Width:
11.3"
Depth:
7.5"
Weight (Approximate):
2 lb
Miscellaneous
Additional Information:
- Migration path to packet-based technologies such as ATM with software download
- TA 608 includes Echo Cancellation (G.168) and ADPCM (G.726) compression resources for instances when the unit is to be upgraded to T1 ATM
- Assured Dialtone with Lifeline POTS
- Durable metal casing
- Modes: FXS Loop Start, Ground Start
- Ringing: balanced, 15 REN, total
- Programmable DC offset: 45Vrms -60Vrms
- Copper Mountain Compatible
- Copper Mountain CE fragmentation support
- Framing: D4 (SF)/ESF, AT&T 54016, ANSI T1.403
- Line Code: AMI / B8ZS
Certifications & Standards:
- IEEE 802.3
- IEEE 802.1D
- Agency Approvals:
- EN55022
- EN50082-1
- EN60950
- ETSI 300-386-2
- UL1950
- CUL
- FCC Part 15 (Class A)
- FCC Part 68
Warranty
Limited Warranty:
10 Year
Item Numbers
GTIN:
0607565012686
UPC:
607565012686
EAN:
0607565012686
UNSPSC:
43222609
