Adtran 4203680L1#ATM Data Networking

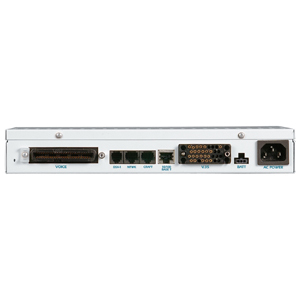

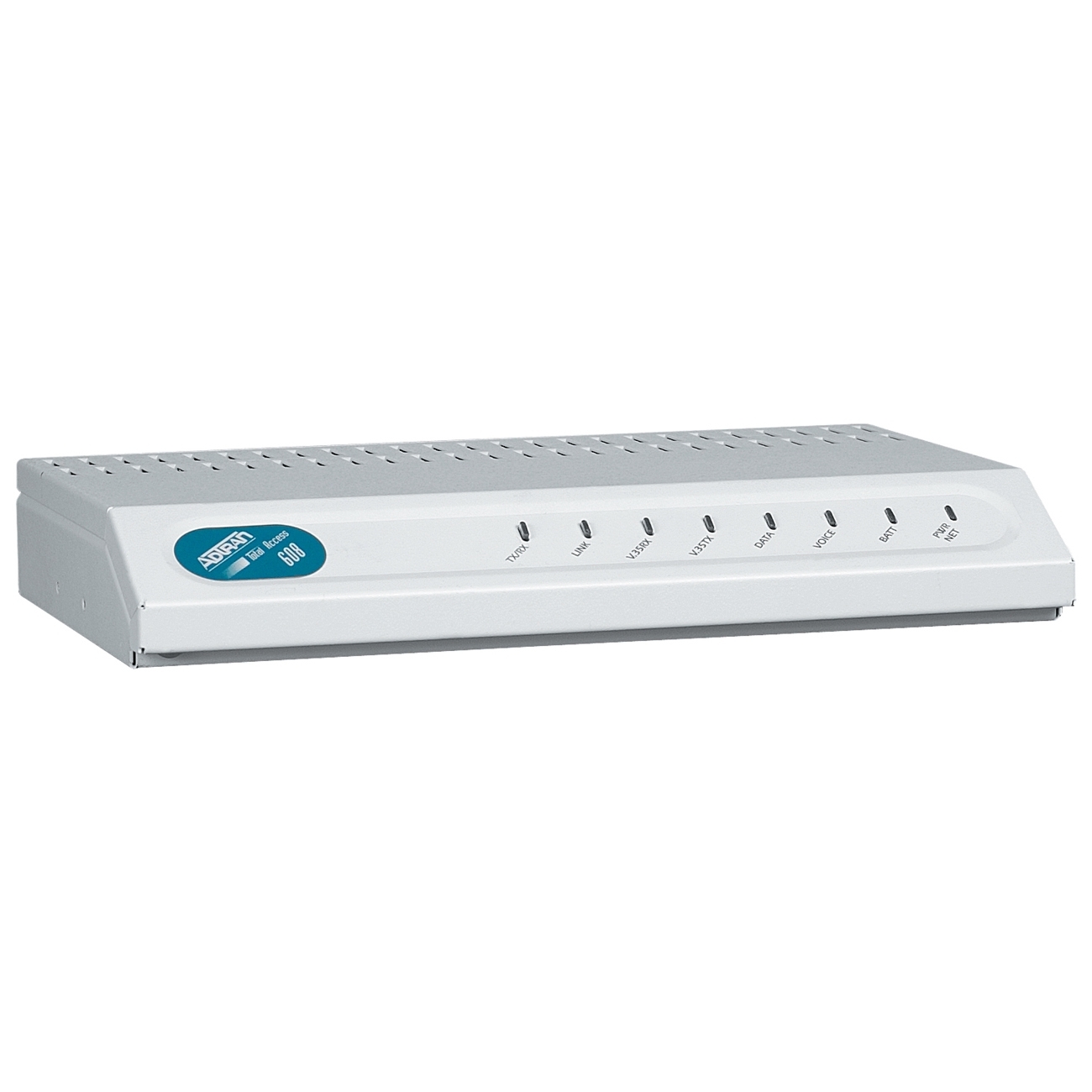

Adtran - Adtran Total Access 608 ATM Gateway - 8 x FXS, 1 x T1 WAN, 1 x Serial, 10/100Base-TX LAN
  • Create a wired network with all the PCs connected with this router and share your Internet connection as well as files while checking emails
  • With 10/100Base-TX technology, get up to 100 mbps data transfer rate over twisted pair cable
  • Features management port for a reliable networking
Read More
$993.26
Recommended TrueSupport Coverage (/mo.)

x

Are you sure you don't need TrueSupport?

The average internal IT
cost for device support is over per year!

With TrueSupport you're
covered - and for way less!
  • Hardware Helpdesk Support
  • RMA Repair Facilitation
  • OEM Service Contract Management
  • Premium Phone & Email Support
  • Billed annually per device

Only /month
Subtotal ( items)

x
You've just added this product to the cart:

Go To Cart
Add to Quote
Adtran Parts Accessory Model Overview
Products and parts from Adtran.
Adtran 4203680L1#ATM Data Networking Overview
With millions of small to medium sized enterprises existing today, the requirement for carriers to provide integrated voice and data solutions is growing at a rapid rate. ADTRAN delivers with the Total Access System of Multiservice Access Platforms and Integrated Access Devices. The Total Access 608 is cost effective, fixed-port, integrated access devices designed to support ATM. These systems offer enterprise users and integrated communications providers, such as CLECs, ILECs, and ISPs, a means to offer combined voice and data traffic over a single network interface terminating at the customer's premises.

The Total Access 608 provides eight fixed analog voice interfaces. These analog FXS interfaces support the stringent design and full feature set required by today's carriers. Total Access 608 provide a builtin IP router and an integrated Nx56/64 V.35 port for synchronous data applications, allowing the customer to combine a broad variety of voice and dataservices into a single platform. The Total Access 608 are compatible with industry leading VoBB Gateways. The FXS interfaces support all popular CLASS features.
Interfaces/Ports
Total Number of Ports:
2
Management Port:
Yes
Number of Network (RJ-45) Ports:
1
Number of Serial Ports:
1
Number of RJ-48 Ports:
1
Media & Performance
Carrier Supported:
T-carrier
Network & Communication
Network Technology:
  • 10/100Base-TX
  • T1
Management & Protocols
Security Features:
  • PAP, CHAP, EAP and Radius
  • NAT with multi-point to single-point
  • Future support for NAT multi-point to multi-point
  • PAT with DHCP
  • Filtering (Pattern, IP, Bridge)
  • Password protection
Power Description
Input Voltage:
110 V AC
Physical Characteristics
Form Factor:
  • Wall Mountable
  • Desktop
Height:
2"
Width:
11.3"
Depth:
7.5"
Weight (Approximate):
2 lb
Miscellaneous
Additional Information:
  • Designed for VoATM applications
  • Includes Echo Cancellation and ADPCM compression resources
  • Assured Dialtone with Lifeline POTS
  • Durable metal casing
  • Voice Codes: PCM, 32k ADPCM
  • Echo cancellation, 8 ms echo tail
  • Idle channel suppression
  • Copper Mountain CE fragmentation support
  • Modes: FXS Loop Start, Ground Start
  • Ringing: balanced, 15 REN, total
  • Programmable DC offset: 45Vrms -60Vrms
  • Copper Mountain Compatible
  • Framing: D4 (SF)/ESF, AT&T 54016, ANSI T1.403
  • Line Code: AMI / B8ZS
Certifications & Standards:
  • IEEE 802.3
  • IEEE 802.1D
  • RFC 1483
  • RFC 2364
  • I.610
  • G.165
  • G.168
  • G.711
  • G.726
  • Agency Approvals:
  • EN55022
  • EN50082-1
  • EN60950
  • ETSI 300-386-2
  • UL1950
  • CUL
  • FCC Part 15 (Class A)
  • FCC Part 68
Warranty
Limited Warranty:
10 Year
Item Numbers
GTIN: 0607565012693
UPC: 607565012693
EAN: 0607565012693
UNSPSC: 43222609
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Adtran 4203680L1#ATM Data Networking is also known as ADN-4203680L1ATM
