Adtran 4203616L1#ATM

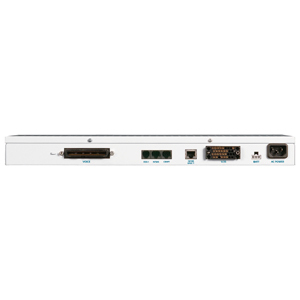

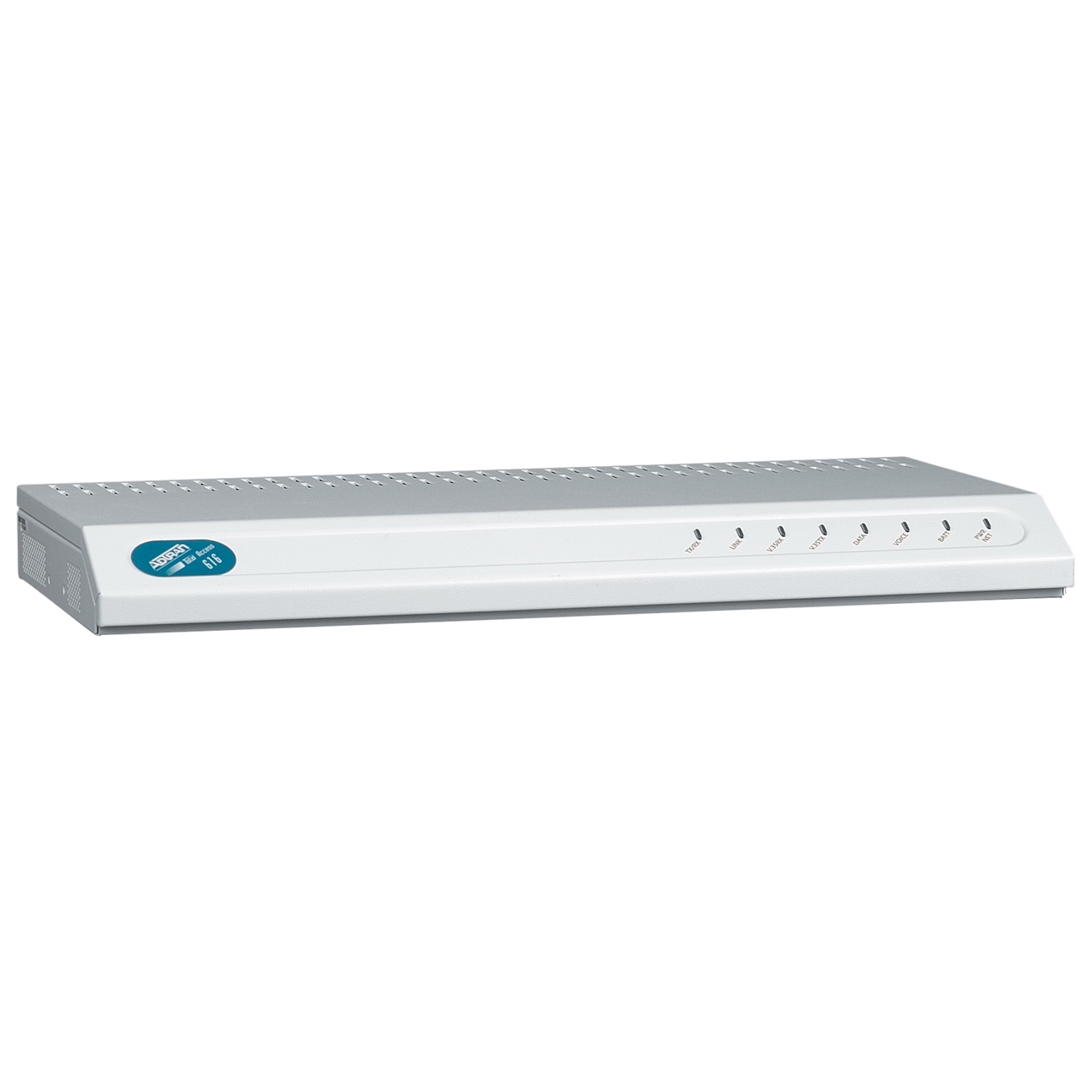

Adtran Total Access 600 Series T1 ATM - Total Access 616 T1 ATM Gateway - 16 x FXS, 1 x Serial, 1 x T1 WAN, 10/100Base-TX LAN
  • Offers high performance and reliable connectivity to the Internet and other offices
  • With 10/100Base-TX technology, get up to 100 mbps data transfer rate over twisted pair cable
  • Tuck the router out of the way with its wall mounting feature
Read More
$1,323.72
Interfaces/Ports
Total Number of Ports:
2
Management Port:
Yes
Number of Network (RJ-45) Ports:
1
Number of Serial Ports:
1
Number of RJ-48 Ports:
1
Media & Performance
Carrier Supported:
T-carrier
Network & Communication
Network Technology:
  • 10/100Base-TX
  • T1
Management & Protocols
Security Features:
  • PAP, CHAP, EAP and Radius
  • NAT with multi-point to single-point
  • Future support for NAT multi-point to multi-point
  • PAT with DHCP
  • Filtering (Pattern, IP, Bridge)
  • Password protection
Power Description
Input Voltage:
110 V AC
Physical Characteristics
Form Factor:
  • Rack-mountable
  • Wall Mountable
  • Desktop
Height:
1.8"
Width:
17"
Depth:
8.5"
Weight (Approximate):
7 lb
Miscellaneous
Additional Information:
  • Seamless voice and data integration over T1 or packet-based architectures
  • ATM and nextgeneration packet support
  • Integral IP router for data support and Internet access
  • Optional DSX-1 for PBX connectivity
  • Rugged metal case
  • Optional battery backup
  • Multiprotocol over ATM
  • QoS Support: VBR-rt (voice), UBR (data)
  • Echo cancellation, 8ms echo tail
  • Idle channel suppression
  • Copper Mountain CE fragmentation support
  • FRF.5 and FRF.8 support (V.35)
  • Modes: FXS Loop Start, Ground Start
  • Assured Dialtone Lifeline POTS port
  • Ringing: unbalanced, 20 REN, continuous, output ring voltage 105 Vrms, nominal
  • Framing: D4 (SF)/ESF, AT&T 54016, ANSI T1.403
  • Line Code: AMI/B8ZS
  • Voice Codes: PCM, 32k ADPCM
Certifications & Standards:
  • RFC 1483
  • RFC 2364
  • IEEE 802.3
  • IEEE 802.1D
  • G.165
  • G.168
  • G.711
  • G.726
  • Agency Approvals:
  • EN55022
  • EN50082-1
  • EN60950
  • ETSI 300-386-2
  • UL 1950
  • CUL
  • FCC Part 15 (Class A)
  • FCC Part 68
Warranty
Limited Warranty:
10 Year
Item Numbers
GTIN: 0607565012433
UPC: 607565012433
EAN: 0607565012433
UNSPSC: 43222609


The Adtran 4203616L1#ATM is also known as ADN-4203616L1#ATM or 4203616L1ATM .
