Adtran 4202820L1

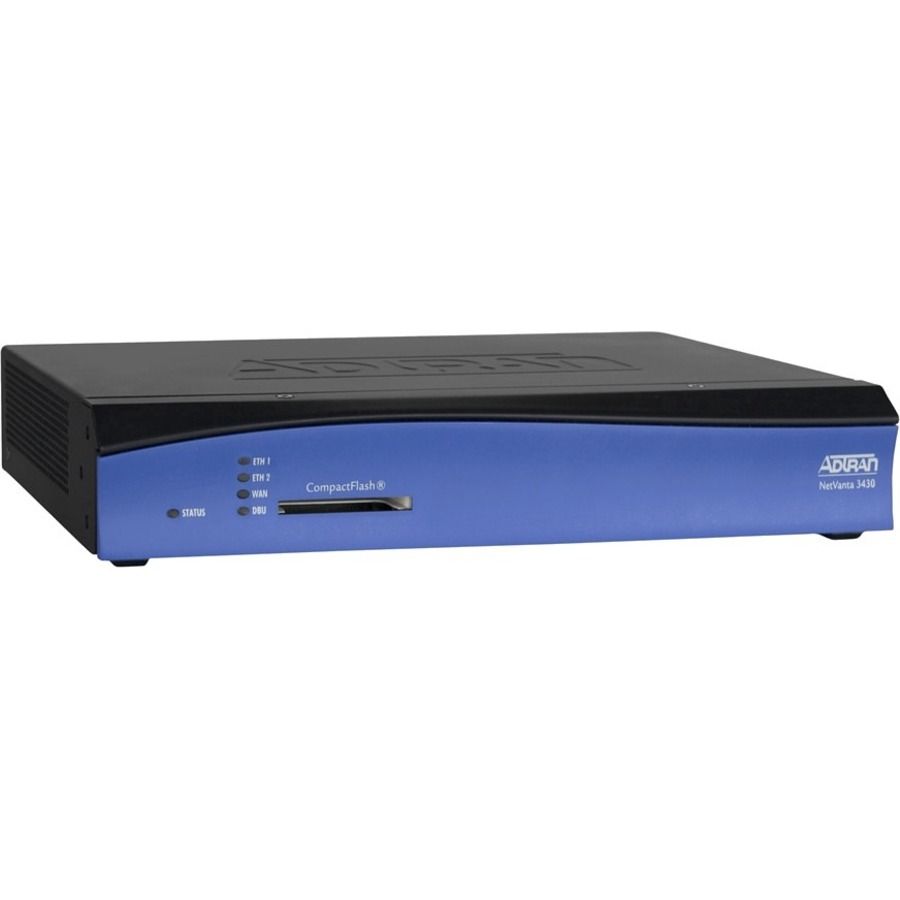

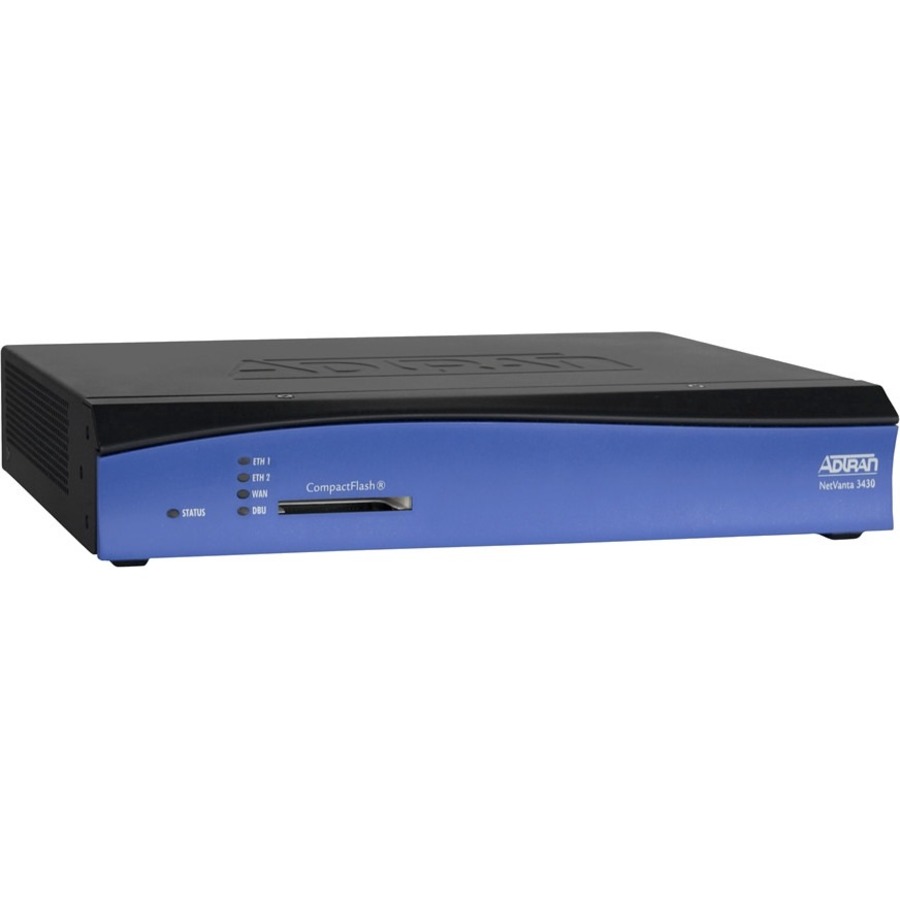

Adtran - NetVanta 3430 with Dual T1 NIM - T-carrier - 2 Ports - Management Port - 1 Slots - Fast Ethernet - 1U - Rack-mountable, Wall Mountable, Desktop
  • Offers high performance and reliable connectivity to the Internet and other offices
  • Features management port for a reliable networking
  • With 10/100Base-TX technology, get up to 100 mbps data transfer rate over twisted pair cable
  • Featuring Fast Ethernet port to speed up the transfer rate up to 100 Mb/sec to connect your wired network
Read More
$1,289.62
Adtran Networking products.
Adtran 4202820L1 Overview

A Modular Access Router that delivers the high-packet throughput required for IP Telephony, corporate connectivity, and Internet access. This performance-enhanced routing platform delivers wire-speed throughput, even with advanced services like QoS, NAT, and Firewall-enabled.

  • RapidRoute technology for greater performance
  • Single Network Interface Module (NIM) slot
  • Dual Ethernet LAN interfaces for LAN segmentation of broadband backup
  • Inherent URL filtering for easy content filtering
  • CompactFlash slot for auto-provisioning
  • IPv6 ready

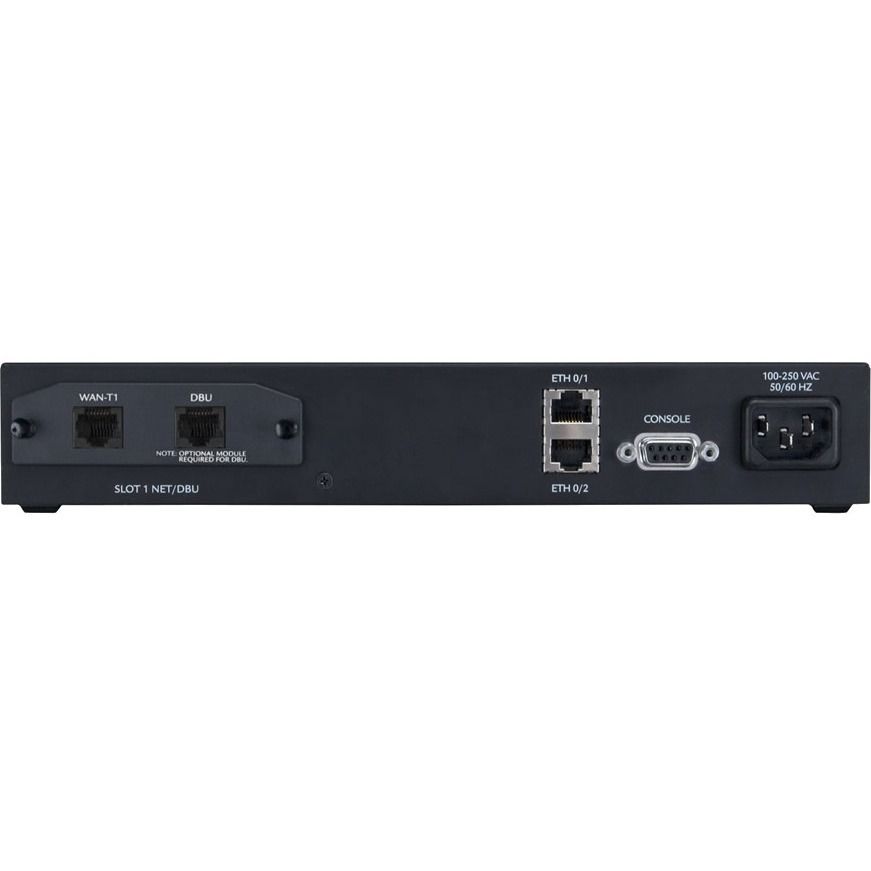

Interfaces/Ports
Total Number of Ports:
2
USB:
No
Management Port:
Yes
Token Ring Port:
No
Serial V.35 Interface:
No
Number of Network (RJ-45) Ports:
2
Media & Performance
Carrier Supported:
T-carrier
I/O Expansions
Number of Total Expansion Slots:
1
Expansion Slot Type:
Network Interface Module (NIM)
Network & Communication
Network Technology:
10/100Base-TX
Ethernet Technology:
Fast Ethernet
VoIP Supported:
Yes
Management & Protocols
Security Features:
  • URL filtering
  • SPI
  • VPN
  • IPsec
  • NAT
  • DoS
  • DES
  • 3DES
  • AES
  • PPPoE
  • PPPoA
  • Multi-level Access Control
  • TACACS+
  • RADIUS
  • AAA
  • SSH
  • SSL
  • IEEE 802.1x
  • ACL
Memory
Standard Memory:
128 MB
Flash Memory:
32 MB
Memory Card Supported:
CompactFlash
Power Description
PoE (RJ-45) Port:
No
Input Voltage:
  • 120 V AC
  • 230 V AC
Physical Characteristics
Compatible Rack Unit:
1U
Form Factor:
  • Rack-mountable
  • Wall Mountable
  • Desktop
Height:
1.7"
Width:
10.5"
Depth:
5.8"
Weight (Approximate):
8.82 lb
Miscellaneous
Certifications & Standards:
IEEE Standards:
  • 802.1x
  • 802.1Q
Warranty
Limited Warranty:
5 Year
Item Numbers
GTIN: 0607565032080
UPC: 607565032080
EAN: 0607565032080
UNSPSC: 43222609


The Adtran 4202820L1 is also known as ADN-4202820L1 .
