Adtran 4200882L1 Data Networking

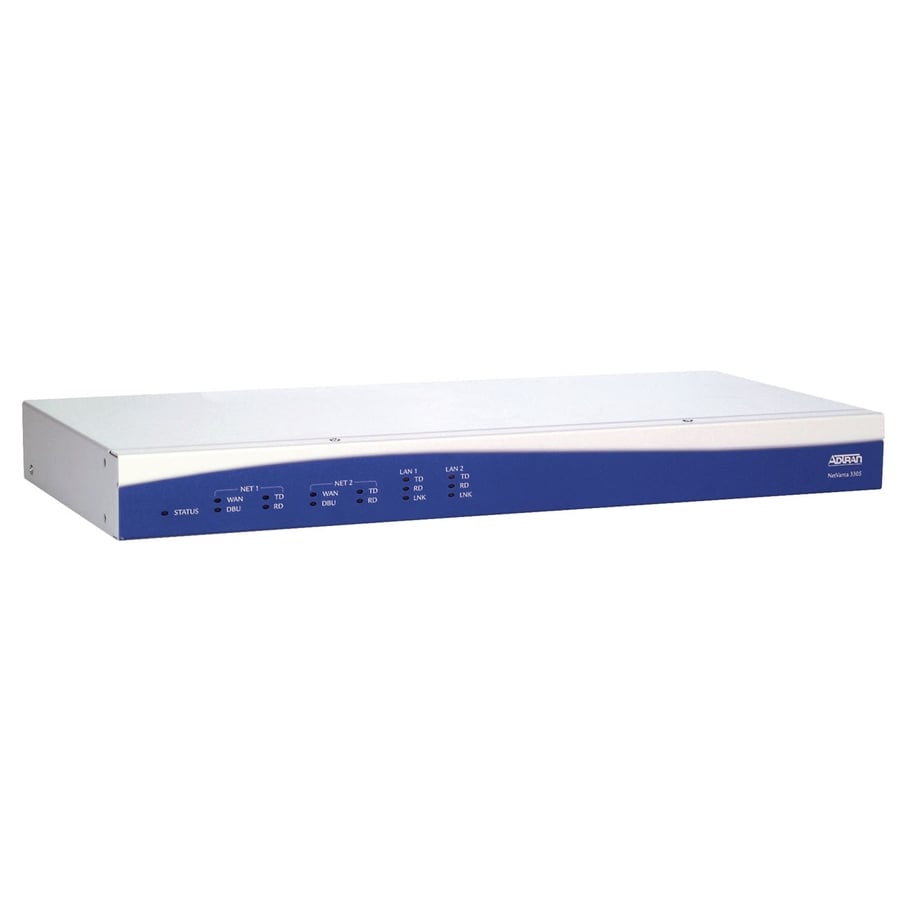

Adtran Networking - Adtran NetVanta 3305 Access Router - 2 x 10/100Base-TX LAN, 1 x T1/FT1 WAN
  • Create a wired network with all the PCs connected with this router and share your Internet connection as well as files while checking emails
  • With T1/FT1 technology, get up to 1.544Mbps data transfer rate over service provider link
  • Link your router traffic to your wired network with the Fast Ethernet port
  • Rack-mountable feature for convenient and safe installation of the router
Read More

Need a different version? See all Adtran Networking Accessories

$1,438.97
Recommended TrueSupport Coverage (/mo.)
Add to Quote
Add to My Shopping List Add to Compare
Adtran 4200882L1 Data Networking
Adtran 4200882L1 Data Networking Adtran 4200882L1 Data Networking Adtran 4200882L1 Data Networking
Adtran 4200882L1 Data Networking
Adtran 4200882L1 Data Networking
Adtran 4200882L1 Data Networking
Adtran Networking Accessory Model Overview
Adtran Networking products.
Adtran 4200882L1 Data Networking Overview
  • Access router for Internet access, public and private Frame Relay, leased line connections, and Virtual Private Networking (VPN)
  • Supports E1 for global applications
  • Built-in DSU/CSU protects circuit
  • Auto-sensing 10/100BaseT interface to accomodate mixed Ethernet environments
  • Command Line Interface (CLI) mimics de facto industry standard
  • Optional DSX-1 interface available for voice connectivity to a PBX
  • Optional dial backup system prevents network downtime
  • Analog VPN Modem module used for dial backup or remote management
Interfaces/Ports
Total Number of Ports:
1
Management Port:
Yes
Number of Network (RJ-45) Ports:
2
Number of RJ-48 Ports:
1
I/O Expansions
Number of Total Expansion Slots:
2
Network & Communication
Network Technology:
  • 10/100Base-TX
  • T1/FT1
Ethernet Technology:
Fast Ethernet
Memory
Standard Memory:
128 MB
Maximum Memory Supported:
512 MB
Flash Memory:
8 MB
Power Description
Input Voltage:
  • 110 V AC
  • 220 V AC
Physical Characteristics
Compatible Rack Unit:
1U
Form Factor:
Rack-mountable
Height:
1.3"
Width:
17.3"
Depth:
7.8"
Weight (Approximate):
7.50 lb
Miscellaneous
Package Contents:
  • User Manual
  • Quick Start Guide
  • AC Power Cord
Additional Information:
  • Dual Interchangeable Network Interface Modules (NIMs)
  • Command Line Interface (CLI) mimics de facto industry standard
  • Comprehensive dial backup system prevents network downtime
  • Stateful inspection firewall protects against cyber attacks
  • Network Address Translation (NAT) conceals private IP addresses
  • VPN for secure corporate connectivity across the Internet

    Frame Relay:
  • Point-to-point
  • RFC 1490 Encapsulation (Multiprotocol Over Frame Relay)
  • LMI types: LMI, ANSI (Annex D), CCITT (Annex A) and Static
Certifications & Standards:
  • FCC Part 68
  • Industry Canada CS03
  • UL & Canadian UL (CUL), IEC/EN, CSA
  • CE Mark
Warranty
Limited Warranty:
5 Year
Item Numbers
GTIN: 0607565012921, 7426802925953
UPC: 607565012921
EAN: 0607565012921, 7426802925953
UNSPSC: 43222609
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Adtran 4200882L1 Data Networking is also known as ADN-4200882L1
