Adtran 4200862L1 Data Networking

The Adtran 4200862L1 Data Networking has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.

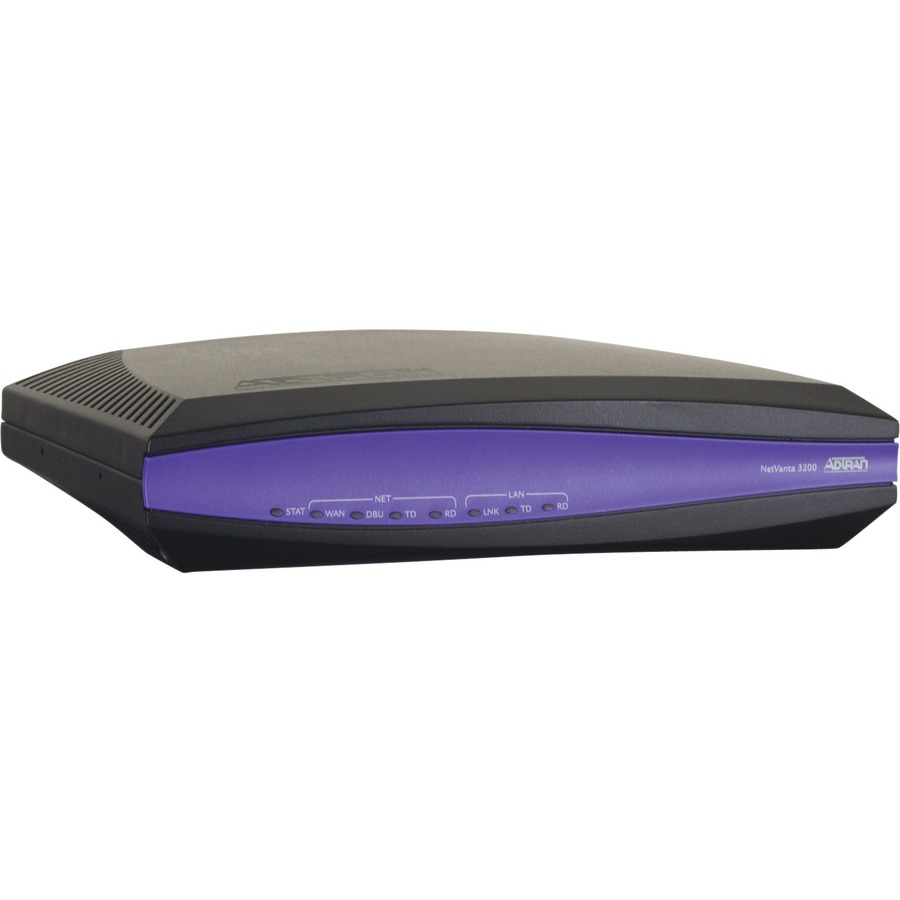

Adtran NetVanta 3200 - Adtran NetVanta 3200 Access Router - 1 x 10/100Base-TX LAN, 1 x T1/FT1 WAN
  • Create a wired network with all the PCs connected with this router and share your Internet connection as well as files while checking emails
  • With 10/100Base-TX technology, get up to 100 mbps data transfer rate over twisted pair cable
  • Management capability provides control over the router's setup and configuration
  • Link your router traffic to your wired network with the Fast Ethernet port
  • Desktop installation - Ideal for deployments outside the wiring closet
Read More

Need a different version? See all Adtran NetVanta 3200 Data Networkings

Discontinued Need Assistance?
Add to Quote
Add to My Shopping List Add to Compare
Adtran 4200862L1 Data Networking
Adtran 4200862L1 Data Networking Adtran 4200862L1 Data Networking Adtran 4200862L1 Data Networking
Adtran 4200862L1 Data Networking
Adtran 4200862L1 Data Networking
Adtran 4200862L1 Data Networking
Full specifications (PDF)
Adtran NetVanta 3200 Data Networking Model Overview
The NetVanta 3200 of modular access routers is designed for cost-effective Internet access, corporate Frame Relay, point-to-point connectivity, ADSL, and VPN. The NetVanta 3200 currently consists of the NetVanta 3200, 3205, and 3305 with a variety of interchangeable NIMs and DIMs.
Adtran 4200862L1 Data Networking Overview
  • Modular Network Interface Module (NIM) offering flexibility
  • Modular Dial Backup Interface Module (DIM) guaranteeing bandwidth
  • Stateful inspection firewall for network security
  • Network Address Translation (NAT) for IP Address Concealing
  • Command Line Interface (CLI) that mimics industry de facto standard
  • Auto-sensing 10/100BaseT Ethernet interface for flexible connectivity
  • Built-in DSU/CSU for circuit protection
  • ADTRAN's Safe-T-Net disaster recovery solution
  • Feature-rich ADTRAN Operating System (OS)
  • Industry-leading five-year warranty
Full specifications (PDF)
Interfaces/Ports
Total Number of Ports:
2
Management Port:
Yes
Number of Network (RJ-45) Ports:
1
Number of Serial Ports:
1
Number of RJ-48 Ports:
1
Media & Performance
Carrier Supported:
T-carrier
I/O Expansions
Number of Total Expansion Slots:
1
Network & Communication
Network Technology:
  • 10/100Base-TX
  • T1/FT1
Ethernet Technology:
Fast Ethernet
Memory
Standard Memory:
16 MB
Memory Technology:
DRAM
Flash Memory:
8 MB
Power Description
Input Voltage:
  • 110 V AC
  • 220 V AC
Physical Characteristics
Form Factor:
Desktop
Height:
1.6"
Width:
9"
Depth:
6.4"
Weight (Approximate):
2 lb
Miscellaneous
Additional Information:
Firewall:
  • Stateful Inspection Firewall
  • Cyber Assault Protection
  • Denial of Service (DoS) Protection

    Administration:
  • SYSLOG logging
  • Email alerts (SMTP)
  • Access control policies
  • Policy statistics
Certifications & Standards:
  • FCC Part 68
  • Industry Canada CS03
  • UL & Canadian UL (CUL), IEC/EN, CSA
  • CE Mark
Warranty
Limited Warranty:
5 Year
Item Numbers
GTIN: 0607565011184
UPC: 607565011184
EAN: 0607565011184
UNSPSC: 43222609
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Adtran 4200862L1 Data Networking is also known as ADN-4200862L1
