Adtran 4200860G2

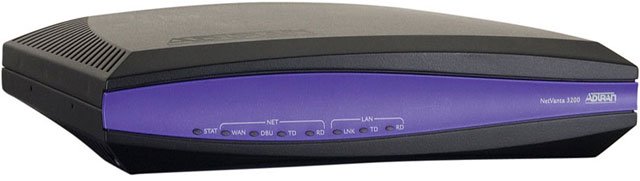

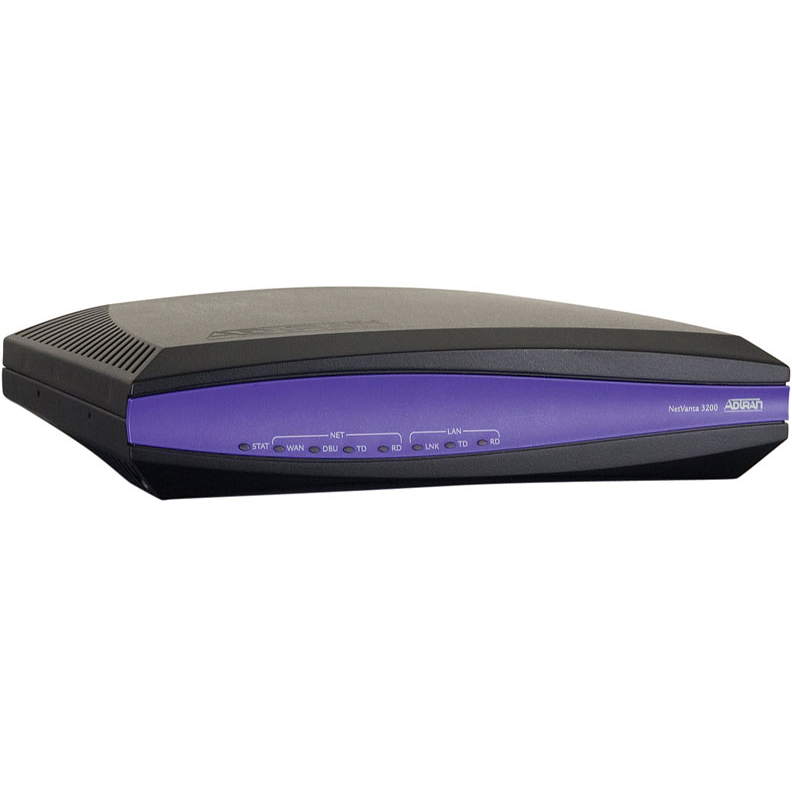

Adtran NetVanta 3200 - NetVanta 3200 Modular Access Router with Enhanced Feature Pack - 1 Ports - Management Port - 1 Slots - Fast Ethernet - Desktop
  • Offers high performance and reliable connectivity to the Internet and other offices
  • Management capability provides control over the router's setup and configuration
  • With 10/100Base-TX technology, get up to 100 mbps data transfer rate over twisted pair cable
  • Featuring Fast Ethernet port to speed up the transfer rate up to 100 Mb/sec to connect your wired network
  • Can be placed on desktop surfaces for standalone installation
Read More
$983.21

Full specifications (PDF)

Modular Access Router Supporting up to Two T1s of Bandwidth
The NetVanta 3200 of modular access routers is designed for cost-effective Internet access, corporate Frame Relay, point-to-point connectivity, ADSL, and VPN. The NetVanta 3200 currently consists of the NetVanta 3200, 3205, and 3305 with a variety of interchangeable NIMs and DIMs.
Adtran 4200860G2 Overview

The NetVanta 3000 Series of modular access routers is designed for cost-effective Internet access, corporate Frame Relay, point-to-point connectivity, ADSL, and VPN. The NetVanta 3000 Series currently consists of the NetVanta 3200, 3205, and 3305 with a variety of inter-changeable NIMs and DIMs.

Modular Hardware

The NetVanta 3200 is a single-slot, single-Ethernet standalone unit in a plastic housing. A single slot within any of the NetVanta 3000 Series will house a variety of NIMs and DIMs, which include an E1/FE1, E1/FE1 with G.703, ADSL, SHDSL, or Serial interface.

Full specifications (PDF)

Interfaces/Ports
Total Number of Ports:
1
Management Port:
Yes
Number of Network (RJ-45) Ports:
1
I/O Expansions
Number of Total Expansion Slots:
1
Expansion Slot Type:
Network Interface Module (NIM)
Network & Communication
Network Technology:
10/100Base-TX
Ethernet Technology:
Fast Ethernet
Management & Protocols
Security Features:
  • Stateful Inspection Firewall
  • Denial of Service (DoS) Protection
  • Access Control Lists
  • Application Level Gateways (ALGs)
  • NAT
  • RADIUS AAA
  • TACACS+
  • SSL
  • SSH
  • Port Authentication (802.1x)
  • IPSec Tunnel
  • DES
  • 3DES
  • MD5
  • AES
  • SHA1
  • Dead Peer Detection
  • NAT Traversal
  • PAP
  • CHAP
Memory
Standard Memory:
32 MB
Flash Memory:
16 MB
Power Description
Input Voltage:
12 V DC
Physical Characteristics
Form Factor:
Desktop
Height:
9"
Width:
1.6"
Depth:
6.4"
Weight (Approximate):
2.20 lb
Item Numbers
GTIN: 0607565026928
UPC: 607565026928
EAN: 0607565026928
UNSPSC: 43222609


The Adtran 4200860G2 is also known as ADN-4200860G2 .
