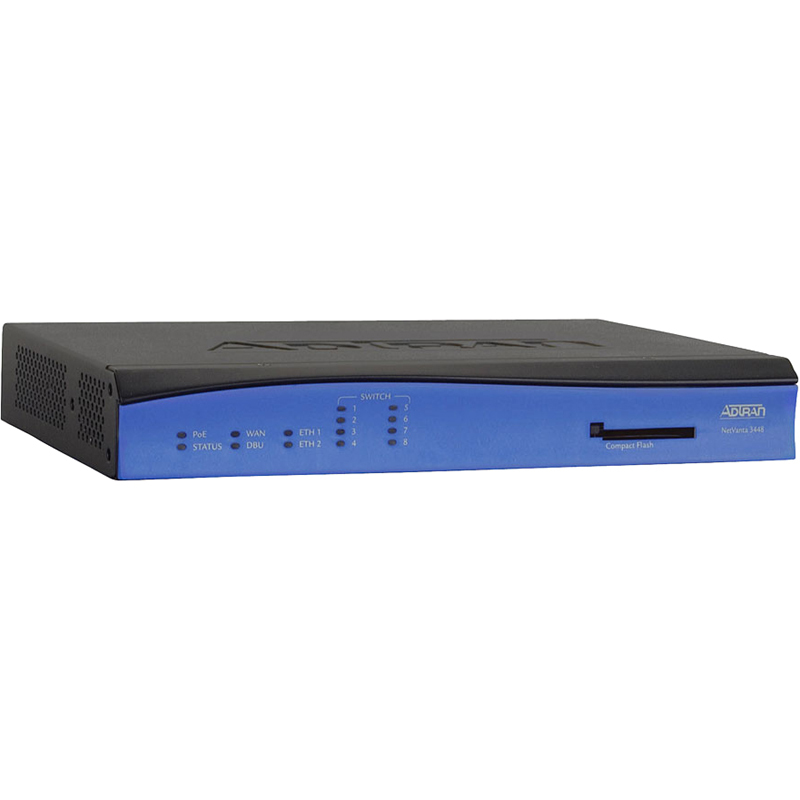

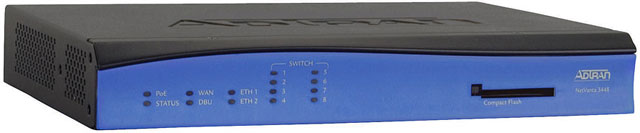

Adtran NetVanta 3448 Data Networking Model Overview
The NetVanta 3448 is a high-performance multiservice access router designed for businesses needing robust and reliable connectivity. Utilizing RapidRoute™ technology, it ensures exceptional packet throughput, ideal for IP telephony and secure corporate connections. This compact 1U rackmountable router accommodates two T1 lines, features an integral eight-port Ethernet switch with Power over Ethernet (PoE) options, and supports advanced security protocols including IPSec VPN for safe Internet access. With tools like Voice Quality Monitoring, this router delivers both operational efficiency and superior voice quality, making it a top choice for mission-critical applications. Key features:
Multiservice access router supporting up to two T1s
RapidRoute™ technology for enhanced performance
Eight-port non-blocking Ethernet switch with optional Power over Ethernet
Voice Quality Monitoring (VQM) and Mean Opinion Score (MOS) prediction
Stateful inspection firewall for robust network security
Modular design for easy upgrades and maintenance
Five-year warranty for peace of mind
Specifications:
Physical Interface:
NIM options: T1/FT1, E1/FE1, ADSL, SHDSL, Serial
DIM: Analog Modem and ISDN BRI
Two Auto-sensing 10/100Base-T ports
Eight-port, Auto-sensing Ethernet Switch
Memory:
RAM: 128 MB
FLASH: 32 MB
Protocols Supported:
eBGP/iBGP, OSPF, RIP
MPLS, Frame Relay, PPP, HDLC
Quality of Service:
Low Latency Queuing, Weighted Fair Queuing
DiffServ Packet Marking
Security Features:
Stateful inspection firewall with DoS Protection
Inherent URL filtering capability
Supports up to 100 simultaneous IPSec VPN tunnels
Environment:
Operating Temperature: 0° to 50°C
Storage Temperature: -20° to 70 °C
Dimensions:
Height: 1.75" | Width: 11.75" | Depth: 7.5"
Weight: 4 lbs
Adtran 4200821G4SBC Data Networking Overview
As a multiservice access router, the NetVanta 3448 uses RapidRoute technology to deliver the high-packet throughput required for IP telephony, corporate connectivity, and Internet access. This performance-enhanced platform delivers wire-speed throughput, even with advanced services enabled like Quality of Service (QoS), NAT, firewall, and VPN.
Modular Hardware
The NetVanta 3448 is a modular, 1U-high, rackmountable metal chassis that offers a single slot to house any of the NetVanta Series Network Interface Modules (NIMs) and Dial Backup Interface Modules (DIMs). For dial backup, an Analog Modem DIM or an ISDN BRI DIM is available, preventing downtime by dialing around a failed circuit to any PPP-compliant device. The NetVanta 3448 also includes two 10/100Base-T Ethernet interfaces and a fully managed, non-blocking, eightport switch which can be separately powered to yield an 802.3af-compliant PoE switch delivering a full 15.4 watts per port.
The Adtran 4200821G4SBC Data Networking is also known as
ADN-4200821G4SBC
IMPORTANT UPDATE: Due to memory chip industry demands, manufacturers are signaling price increases and supply constraints. Contact us now to secure inventory and pricing.IMPORTANT UPDATE: Due to memory chip industry demands, manufacturers are signaling price increases and supply constraints. Contact us now to secure inventory and pricing.
Full specifications (PDF)
