Adtran 4200821G3SBC Data Networking

The Adtran 4200821G3SBC Data Networking has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.

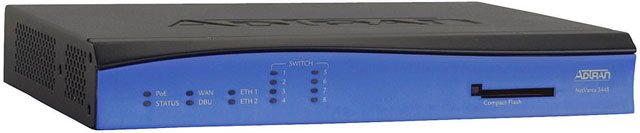

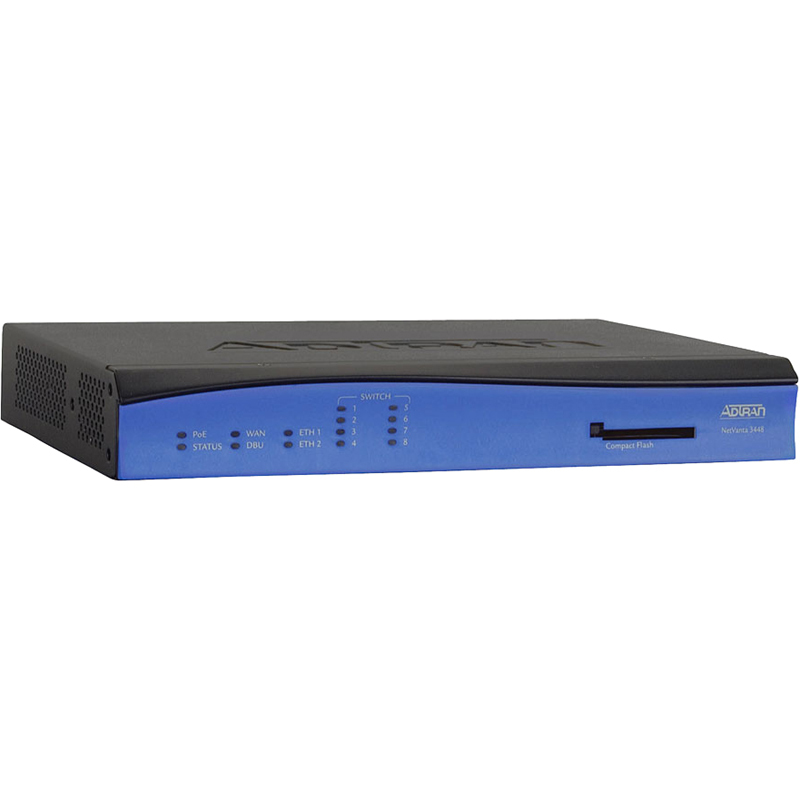

Adtran NetVanta 3448 - Adtran NetVanta 3448 Router - 10 Ports - PoE Ports - Management Port - 1 Slots - Fast Ethernet - 1U - Rack-mountable

With 10/100Base-TX technology, get up to 100 mbps data transfer rate over twisted pair cable
Management capability provides control over the router's setup and configuration
Link your router traffic to your wired network with the Fast Ethernet port
Built-in power supply to ensure all components are being supplied with accurate voltage

Need a different version? See all Adtran NetVanta 3448 Data Networkings

Discontinued Need Assistance?

Chat Now for Qty Discount

Add to Quote

Overview

Full specifications (PDF)

Adtran NetVanta 3448 Data Networking Model Overview

As a multiservice access router, the NetVanta 3448 uses RapidRoute technology to deliver the high-packet throughput required for IP telephony, corporate connectivity, and Internet access. This performance-enhanced platform delivers wire-speed throughput, even with advanced services enabled like Quality of Service (QoS), NAT, firewall, and VPN

Adtran 4200821G3SBC Data Networking Overview

As a multiservice access router, the NetVanta 3448 uses RapidRoute technology to deliver the high-packet throughput required for IP telephony, corporate connectivity, and Internet access. This performance-enhanced platform delivers wire-speed throughput, even with advanced services enabled like Quality of Service (QoS), NAT, firewall, and VPN.

Modular Hardware

The NetVanta 3448 is a modular, 1U-high, rackmountable metal chassis that offers a single slot to house any of the NetVanta Series Network Interface Modules (NIMs) and Dial Backup Interface Modules (DIMs). For dial backup, an Analog Modem DIM or an ISDN BRI DIM is available, preventing downtime by dialing around a failed circuit to any PPP-compliant device. The NetVanta 3448 also includes two 10/100Base-T Ethernet interfaces and a fully managed, non-blocking, eightport switch which can be separately powered to yield an 802.3af-compliant PoE switch delivering a full 15.4 watts per port.

Detailed Specs

Full specifications (PDF)

Interfaces/Ports

Total Number of Ports:

USB:

Powerline:

Management Port:

Yes

Token Ring Port:

Serial V.35 Interface:

Number of Network (RJ-45) Ports:

I/O Expansions

Number of Total Expansion Slots:

Expansion Slot Type:

Network Interface Module (NIM)

Network & Communication

Ethernet Technology:

Fast Ethernet

Network Technology:

10/100Base-TX

VoIP Supported:

Yes

Management & Protocols

Security Features:

DoS
Stateful Inspection Firewal
Access Control Lists (ACLs)
NAT
TACACS+
SSH
RADIUS
AAA
IPSec
DES
3DES
AES
CHAP
PAP
URL Filter
Content Filtering

Memory

Standard Memory:

128 MB

Flash Memory:

32 MB

Memory Card Supported:

CompactFlash

Power Description

PoE (RJ-45) Port:

Yes

Input Voltage:

110 V AC
220 V AC

Redundant Power Supply Supported:

Power Source:

Power Supply

Physical Characteristics

Compatible Rack Unit:

Form Factor:

Rack-mountable

Height:

1.8"

Width:

11.8"

Depth:

7.5"

Weight (Approximate):

4.01 lb

Miscellaneous

Certifications & Standards:

CE Mark
UL & Canadian UL (CUL)
IEC/EN
CSA

IEEE Standards:

802.3
802.3u

Environmentally Friendly:

Yes

Environmental Certification:

RoHS

Warranty

Limited Warranty:

5 Year

Item Numbers

GTIN: 0607565036965

UPC: 607565036965

EAN: 0607565036965

UNSPSC: 43222609
