Adtran 1703599G1 Products

The Adtran 1703599G1 Products has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.

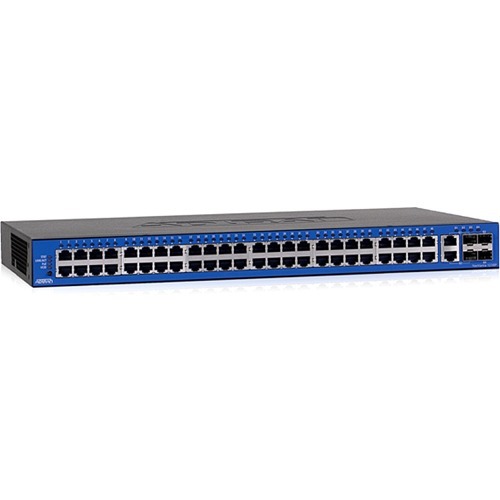

Adtran - Adtran 1238P Layer 3 Switch - 48 Ports - Manageable - 3 Layer Supported - 1U High - Desktop, Rack-mountable - Lifetime Limited Warranty

Layer 3 Switch provides reliable, efficient connectivity to ensure maximum feasibility
Electrical power is transmitted along with data in a single cable?to devices such as Access Points, IP cameras or IP phones
Features 48 networking ports to establish large network
Built-in power supply to ensure all components are being supplied with accurate voltage
Supports layer 3 switching for enhanced performance and usability
Desktop form factor for added reliability and dependability
Managed switch provides a reliable foundation for your network
Fast Ethernet technology gives ideal solution for extending network connections to conference rooms, labs, lobbies and department workgroups
Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters

Need a different version? See all Adtran Parts Accessories

Discontinued Need Assistance?

Add to Quote

Overview

Adtran Parts Accessory Model Overview

Products and parts from Adtran.

Adtran 1703599G1 Products Overview

The NetVanta® 1200 Series of managed, Layer 3 Lite, Ethernet switches is designed for fast, secure, cost-effective Local Area Network (LAN) switching. These scalable, full-featured business-class switches are perfect for Voice over IP (VoIP) applications. The switches use robust Quality of Service (QoS) features and Power over Ethernet (PoE) capabilities to power IP Phones, protecting the organization with advanced security capabilities, and ease of management with an easy-to-use Web-based Graphical User Interface (GUI) and familiar Command Line Interface (CLI).

Hardware

The NetVanta 1234P and 1238P rackmount switches support 24 and 48 10/100Base-T Ethernet ports with auto-rate, auto-duplexing and MDI/MDI-X sensing. In addition, each switch supports two 1.0 Gbps shared Small Form-factor Pluggable (SFP) or copper ports, and two 2.5 Gbps enhanced SFP ports. Together the four uplink ports can provide up to 14 Gbps of bandwidth between interconnected NetVanta 1234P or 1238P switches.

Detailed Specs

Interfaces/Ports

Total Number of Network Ports:

Token Ring Port:

LRE Port:

Management Port:

Yes

Number of PoE (RJ-45) Ports:

Number of Network (RJ-45) Ports:

Port/Expansion Slot Details:

48 x Fast Ethernet Network
2 x Gigabit Ethernet Network
4 x Gigabit Ethernet Expansion Slot

Media & Performance

Media Type Supported:

Twisted Pair

Ethernet Technology:

Fast Ethernet
Gigabit Ethernet

Network Technology:

10/100/1000Base-T
1000Base-X

I/O Expansions

Number of Total Expansion Slots:

Expansion Slot Type:

SFP

Shared SFP Slot:

Yes

Number of SFP Slots:

Network & Communication

Layer Supported:

Management & Protocols

Manageable:

Yes

Management:

CLI
Web Based Management
Syslog
SNMP v3
IPv6 Management

Power Description

PoE (RJ-45) Port:

Input Voltage:

120 V AC
230 V AC

Power Source:

Power Supply

Physical Characteristics

Compatible Rack Unit:

Form Factor:

Desktop
Rack-mountable

Height:

1.7"

Width:

17.2"

Depth:

15.4"

Weight (Approximate):

13.50 lb

Miscellaneous

Certifications & Standards:

FCC Part 15 Class A
UL 1950/CSA

IEEE Standards:

802.3ad
802.1d
802.1s
802.1w
802.1q
802.1p
802.1x
802.3af
802.3x
802.1AB

Warranty

Limited Warranty:

Lifetime

Item Numbers

GTIN: 0607565038716, 0735548566601, 0818217096729

UPC: 607565038716, 735548566601, 818217096729

EAN: 0607565038716, 0735548566601, 0818217096729

UNSPSC: 43222612
