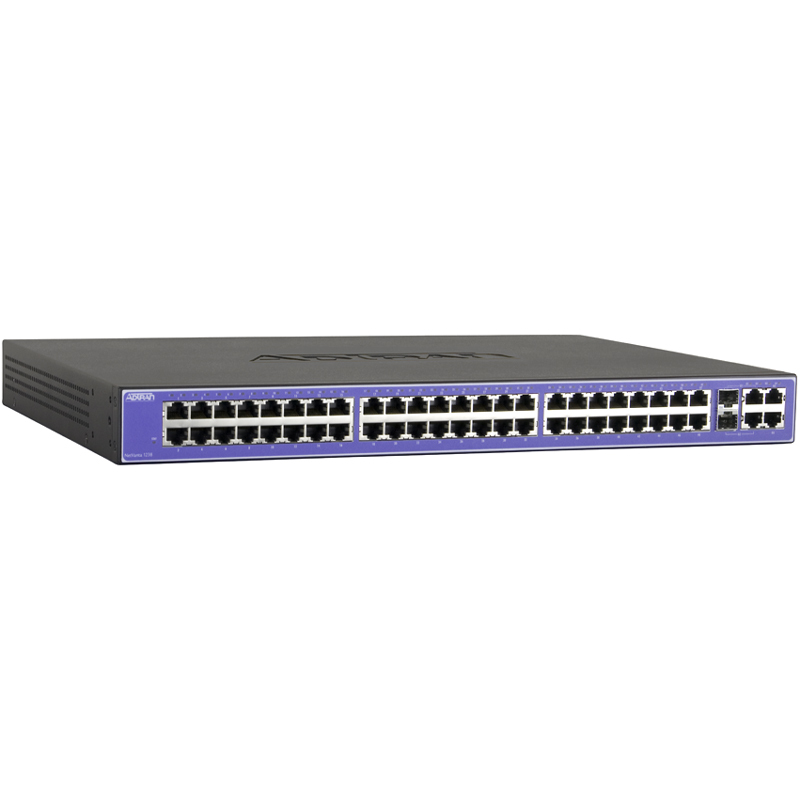

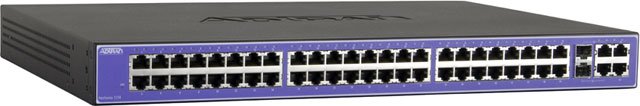

Adtran 1702598G1 Data Networking Device

Adtran NetVanta 1238 - NetVenta 1238 Ethernet Switch - 48 Ports - Manageable - 2 Layer Supported - Twisted Pair - 1U High - Rack-mountable, Desktop - Lifetime Limited Warranty
Low cost, fully managed, 48-port Layer 2 Ethernet switch

The NetVanta 1238 is a managed, Layer 2, 48-port Ethernet switch designed for fast, secure, cost-effective Ethernet switching. Ideal for new installations and network upgrades, this switch is perfect for larger switching applications, interconnecting LAN devices, network segmentation, and protecting the organization with advanced security capabilities.

General Information

  • Product Type: Ethernet Switch
  • Product Series: 1230
  • Brand Name: Adtran
  • Manufacturer: Adtran
  • Product Model: 1238
  • Product Name: NetVenta 1238 Ethernet Switch
  • Product Line: NetVanta

Physical Characteristics

  • Compatible Rack Unit: 1U
  • Height: 1.7"
  • Width: 17.2"
  • Depth: 7.8"
  • Form Factor:
    • Rack-mountable
    • Desktop

Interfaces/Ports

  • Number of Network (RJ-45) Ports: 50
  • Stack Port: No
  • Total Number of Network Ports: 48
  • Token Ring Port: No
  • LRE Port: No
  • USB: No
  • Modular: No
  • Management Port: Yes
  • Uplink Port: Yes
  • Bypass: No

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority:
    • RoHS
    • WEEE
  • Package Contents:
    • NetVenta 1238 Ethernet Switch
    • Quick Start Guide
    • Rackmount Brackets
    • Screws
    • All Necessary Power Cords
    • NetVenta 1238 Ethernet Switch
    • Quick Start Guide
    • Rackmount Brackets
    • Screws
    • All Necessary Power Cords
  • Certifications & Standards:
    • IEEE 802.1D
    • IEEE 802.1w
    • IEEE 802.1Q
    • IEEE 802.1p
    • IEEE 802.3ad

Management & Protocols

  • Manageable: Yes
  • Management:
    • CLI
    • GUI
    • SNMP v2
    • Telnet
    • QoS
    • DHCP
    • VLAN

Media & Performance

  • Ethernet Technology:
    • Fast Ethernet
    • Gigabit Ethernet
  • Media Type Supported: Twisted Pair
  • Network Technology:
    • 10/100Base-TX
    • 10/100/1000Base-T
  • Twisted Pair Cable Standard: Category 5

Power Description

  • PoE (RJ-45) Port: No
  • Input Voltage:
    • 110 V AC
    • 220 V AC
  • Power Source: Power Supply

I/O Expansions

  • Number of Total Expansion Slots: 4
  • Expansion Slot Type: SFP
  • Number of SFP Slots: 4
  • Shared SFP Slot: Yes

Warranty

  • Limited Warranty: Lifetime

Network & Communication

  • Layer Supported: 2

Full specifications (PDF)



The Adtran 1702598G1 is also known as ADN-1702598G1 .
