Adtran 1700952F1 Data Networking

Adtran Bluesocket 1900 Series Access Points - Adtran Bluesocket 1940 IEEE 802.11n 900 Mbit/s Wireless Access Point - 1 x Network (RJ-45) - Ethernet, Fast Ethernet, Gigabit Ethernet
  • When connected to a compatible router or a network switch, this wireless access point lets you enjoy wireless internet connectivity throughout your home or office
  • 900 Mbit/s wireless transmission speed is ideal for fast data transfer with maximum reliability
  • Ensure speedy data transfer of up to 900 Mbit/s with the IEEE 802.11n wireless technology
  • Featuring Fast Ethernet port to speed up the transfer rate up to 100Mb/sec to connect your wired network
  • MIMO Technology feature for maximum efficiency and convenience
Read More

Need a different version? See all Adtran Bluesocket 1900 Series Access Points Accessories

$736.97
Recommended TrueSupport Coverage (/mo.)
Add to Quote
Add to My Shopping List Add to Compare
Adtran 1700952F1 Data Networking
Adtran 1700952F1 Data Networking Adtran 1700952F1 Data Networking
Adtran 1700952F1 Data Networking
Adtran 1700952F1 Data Networking
Adtran Bluesocket 1900 Series Access Points Accessory Model Overview
The Adtran Bluesocket 1900 Series family of high-performance Access Points (APs) is the perfect fit for educational institutions, enterprises, and service providers who are looking to deploy secure wireless networks. Bluesocket APs are completely plug-and-play requiring no manual configuration and deliver optimal performance. Whether you want to add wireless to your office or deploy across an entire campus, the Bluesocket 1900 Series APs are designed to meet your needs.
Adtran 1700952F1 Data Networking Overview

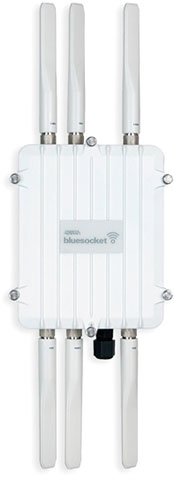

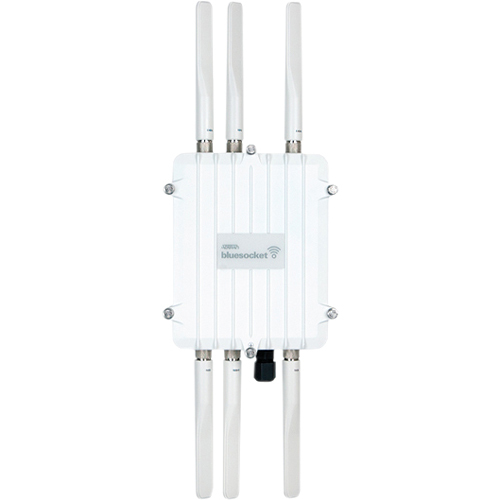

The Bluesocket 1940 is a high-performance, 3x3:3, 802.11n outdoor Access Point with six N-type antenna connectors offering up to 900 Mbps throughput. As an integral part of the Bluesocket virtual Wireless LAN (vWLAN) solution, the Bluesocket 1940 AP is engineered for outdoor deployments, completely plug-and-play requiring no manual configuration, has a built-in stateful firewall to enforce security at the edge, and includes a Wireless Intrusion-Detection System (W-IDS) to ensure a secure computing experience. Whether you want to add wireless to your office or light up an entire campus, the Bluesocket APs are designed for your needs.

Technical Information
Wireless LAN Standard:
IEEE 802.11n
ISM Band:
Yes
UNII Band:
Yes
ISM Maximum Frequency:
2.40 GHz
UNII Maximum Frequency:
5 GHz
Total Number of Antennas:
6
Antenna Connector:
N-Type
Wireless Transmission Speed:
900 Mbit/s
Wireless Security:
  • IEEE 802.1X
  • WEP
  • WPA
  • WPA2
  • EAP-TTLS
  • EAP-PEAP
  • EAP-FAST
  • EAP-TLS
  • EAP-SIM
  • EAP-AKA
Features:
  • MIMO Technology
  • Quality of Service (QoS)
Interfaces/Ports
Ethernet Technology:
  • Ethernet
  • Fast Ethernet
  • Gigabit Ethernet
Number of Network (RJ-45) Ports:
1
Network (RJ-11):
No
PoE (RJ-45) Port:
No
PoE PD Port:
Yes
VGA:
No
HDMI:
No
Audio Line Out:
No
Serial Port:
No
USB:
No
Powerline:
No
Management Port:
No
Physical Characteristics
Height:
1.9"
Width:
7.8"
Depth:
9.6"
Weight (Approximate):
3.20 lb
Miscellaneous
Certifications & Standards:
  • IP67
  • ISO 9001
  • ISO 14001

Electrical/Safety Compliance:

  • UL 1950 m CSA 22.2
  • IEC 60950 m EN 60950

Radio Approvals:

  • FCC Part 15.247
  • RSS-210 (Canada)
  • ICES-003 (Canada)
  • EN 300.328 (Europe)
  • EN 300.893 (Europe)
  • EN 301.489-1/-17 (Europe)
  • AS/NZS 44268/C-Tick (Australia & New Zealand)

IEEE Standards:

  • 802.11a
  • 802.11b
  • 802.11g
  • 802.11n
  • 802.1X
  • 802.3at
  • 802.11e
Warranty
Limited Warranty:
1 Year
Item Numbers
GTIN: 0607565035531
UPC: 607565035531
EAN: 0607565035531
UNSPSC: 43222631
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Adtran 1700952F1 Data Networking is also known as ADN-1700952F1
