Adtran 1700949F1 Data Networking

Part Number: 1700949F1
Model: Parts
Add to My Shopping List Add to Compare
Discontinued Need Assistance?

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Wireless LAN Standard
IEEE 802.11ac
Frequency Band
2.40 GHz5 GHz
ISM Band
Yes
UNII Band
Yes

Product Description:

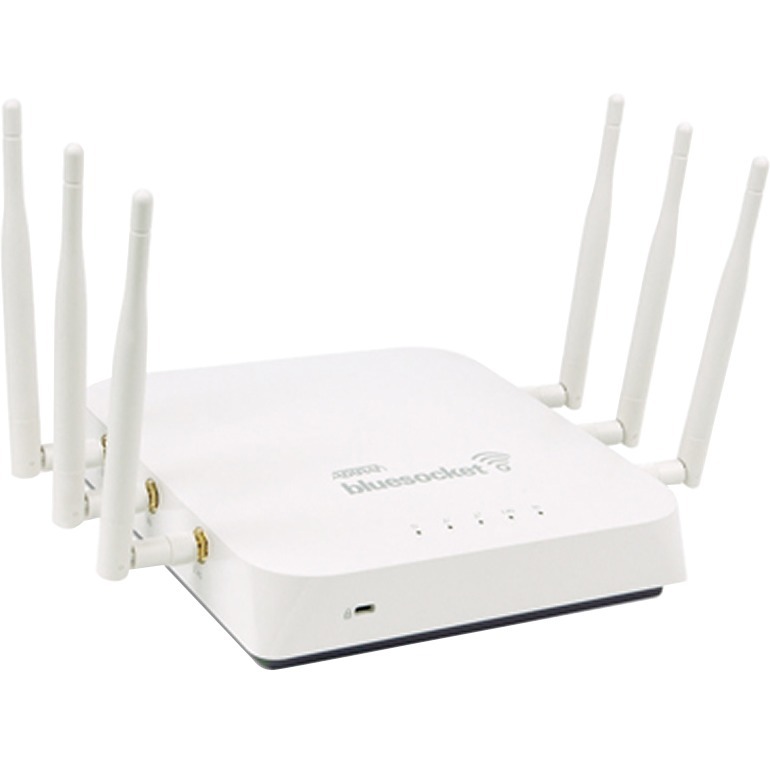

  Adtran Bluesocket 2035 IEEE 802.11ac 1.71 Gbit/s Wireless Access Point - 2.40 GHz, 5 GHz - 1 x Network (RJ-45) - Ethernet, Fast Ethernet, Gigabit Ethernet - Wall Mountable, Ceiling Mountable
Explore all Adtran Parts Accessories
Add to Quote
Adtran 1700949F1 Data Networking
Adtran 1700949F1 Data Networking

Adtran Parts Accessory Model Overview

Products and parts from Adtran.
Adtran 1700949F1 Data Networking Overview
The Bluesocket 2035 is a high-performance, 3x3:3, 802.11ac indoor Access Point with six external RP-SMA antenna connectors providing 1.3 Gbps on the 5GHz radio and 450 Mbps on the 2.4GHz for a total of 1.75 Gbps. The Bluesocket 2035 802.11ac AP is designed for high-density environments and does not include limits on number of devices per radio. The Bluesocket 2035 is ideal for convention centers, cafeterias and indoor arenas, and provides higher throughput for video streaming and applications with large file transfers. The Bluesocket 2035 AP is fully functional with 802.3af Power over Ethernet (PoE), has a built-in stateful firewall and Wireless Intrusion-Detection System (Wi-IDS), and is completely plug-and-play to ensure quicker deployments.
Technical Information
Wireless LAN Standard:
IEEE 802.11ac
Frequency Band:
  • 2.40 GHz
  • 5 GHz
ISM Band:
Yes
UNII Band:
Yes
ISM Maximum Frequency:
2.40 GHz
UNII Maximum Frequency:
5 GHz
Antenna Connector:
RP-SMA Connector
Wireless Transmission Speed:
1.71 Gbit/s
Wireless Security:
  • IEEE 802.1X
  • Open System (WEP-64/128)
  • Shared System (WEP-64/128)
  • WPA-Personal
  • WPA2-Personal
  • WPA-Enterprise
  • WPA2-Enterprise
  • EAP-TTLS
  • EAP-PEAP
  • EAP-FAST
  • EAP-TLS
  • EAP-SIM
  • EAP-AKA
Features:
  • MIMO Technology
  • Quality of Service (QoS)
Data Encryption:
Yes
Encryption Standard:
  • WEP
  • WPA
  • WPA2
  • WPA-PSK
  • WPA2-ENT
Interfaces/Ports
Ethernet Technology:
  • Ethernet
  • Fast Ethernet
  • Gigabit Ethernet
Number of Network (RJ-45) Ports:
1
Network (RJ-11):
No
PoE (RJ-45) Port:
No
VGA:
No
HDMI:
No
Audio Line Out:
No
Serial Port:
No
USB:
No
Powerline:
No
Management & Protocols
Management:
  • DynamicRF (Radio Resource Management)
  • Smart Bandwidth Management
Power Description
Input Voltage:
12 V DC
Physical Characteristics
Form Factor:
  • Wall Mountable
  • Ceiling Mountable
Height:
1.4"
Width:
6.5"
Depth:
6.5"
Weight (Approximate):
1.32 lb
Miscellaneous
Package Contents:
  • Bluesocket 2035 802.11ac (3x3:3) Indoor AP
  • Wall/Ceiling/T-bar Mount Kit
Certifications & Standards:
Electrical/Safety Compliance:
  • UL 1950
  • CSA 22.2
  • IEC 60950
  • EN 60950
Radio Approvals:
  • FCC Part 15.247
  • RSS-210 (Canada)
  • EN 300.328 (Europe)
  • AS/NZS 4771 (Australia & New Zealand)
  • NCC (Taiwan) and IDA (Singapore)
  • EMI and Susceptibility (Class A)
  • FCC Part 15.107 and 15.109
  • ICES-003 (Canada)
  • EN 301.489-1 and -17 (Europe)
  • AS/NZS 3548
IEEE Standards:
  • 802.11a
  • 802.11b
  • 802.11g
  • 802.11n
  • 802.11ac
  • 802.11e
  • 802.1p
  • 802.1X
  • 802.3af
Warranty
Limited Warranty:
Lifetime
Item Numbers
GTIN: 0607565037344
UPC: 607565037344
EAN: 0607565037344
UNSPSC: 43222631
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Adtran 1700949F1 Data Networking is also known as ADN-1700949F1
