Adtran 1700948F1 Products

Adtran - Adtran Bluesocket 2030 IEEE 802.11ac 1.71 Gbit/s Wireless Access Point - 2.40 GHz, 5 GHz - 1 x Network (RJ-45) - Ethernet, Fast Ethernet, Gigabit Ethernet - Wall Mountable, Ceiling Mountable
  • When connected to a compatible router or a network switch, this wireless access point lets you enjoy wireless internet connectivity throughout your home or office
  • 1.71 Gbit/s wireless transmission speed provides better reception, and dependable connectivity with maximum productivity
  • Ensure speedy data transfer of up to 1.71 Gbit/s with the IEEE 802.11ac wireless technology
  • Gigabit Ethernet port for ultra-fast wired network speeds
  • MIMO Technology feature for maximum efficiency and convenience
  • Wall Mountable form factor for your usage convenience and better reliance
Read More

Need a different version? See all Adtran Parts Accessories

$415.38
Add to Quote
Add to My Shopping List Add to Compare
Adtran 1700948F1 Products
Adtran 1700948F1 Products
Adtran 1700948F1 Products
Adtran Parts Accessory Model Overview
Products and parts from Adtran.
Adtran 1700948F1 Products Overview

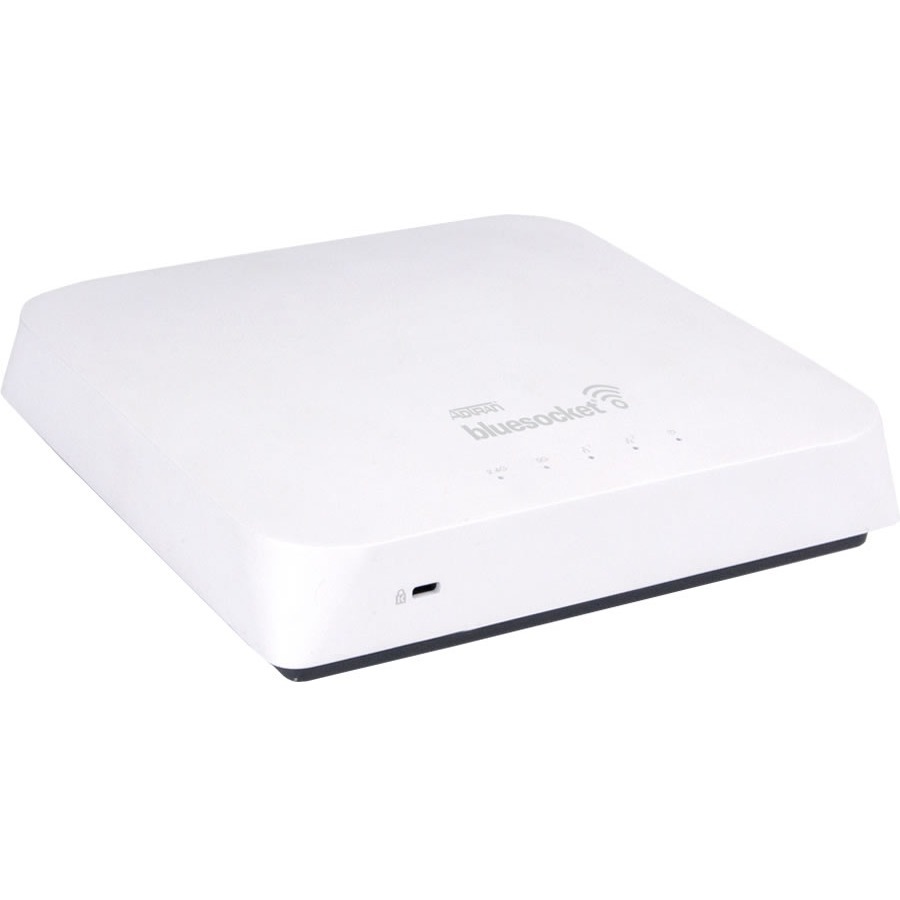

The Bluesocket 2030 is a high-performance, 802.11ac indoor Access Point with 3x3:3 MIMO internal antennas providing 1.3 Gbps on the 5GHz radio and 450 Mbps on the 2.4GHz for a total of 1.75 Gbps. The Bluesocket 2030 802.11ac AP is designed for high user density environments such as conference centers and lecture halls, high throughput applications such as video and applications with large file transfers such as CAD. The Bluesocket 2030 AP is fully functional with 802.3af Power over Ethernet (PoE), has a built-in stateful firewall, Wireless Intrusion-Detection System (W-IDS) and is completely plug-and-play ensuring simple and secure deployments.
Technical Information
Wireless LAN Standard:
IEEE 802.11ac
Frequency Band:
  • 2.40 GHz
  • 5 GHz
ISM Band:
Yes
UNII Band:
Yes
ISM Maximum Frequency:
2.40 GHz
UNII Maximum Frequency:
5 GHz
Total Number of Antennas:
6
Number of Internal Antennas:
6
Antenna Gain:
5.5 dBi
Wireless Transmission Speed:
1.71 Gbit/s
Wireless Security:
  • IEEE 802.1X
  • Open System (WEP-64/128)
  • Shared System (WEP-64/128)
  • WPA-Personal
  • WPA2-Personal
  • WPA-Enterprise
  • WPA2-Enterprise
  • EAP-TTLS
  • EAP-PEAP
  • EAP-FAST
  • EAP-TLS
  • EAP-SIM
  • EAP-AKA
Features:
  • MIMO Technology
  • Quality of Service (QoS)
Data Encryption:
Yes
Encryption Standard:
  • WEP
  • WPA-PSK
  • WPA2-PSK
  • WPA2-ENT
Interfaces/Ports
Ethernet Technology:
  • Ethernet
  • Fast Ethernet
  • Gigabit Ethernet
Number of Network (RJ-45) Ports:
1
Network (RJ-11):
No
PoE (RJ-45) Port:
No
VGA:
No
HDMI:
No
Audio Line Out:
No
Serial Port:
No
USB:
No
Powerline:
No
Management & Protocols
Management:
  • DynamicRF (Radio Resource Management)
  • Smart Bandwidth Management
Power Description
Input Voltage:
12 V DC
Physical Characteristics
Form Factor:
  • Wall Mountable
  • Ceiling Mountable
Height:
1.4"
Width:
6.5"
Depth:
6.5"
Weight (Approximate):
1.32 lb
Miscellaneous
Package Contents:
  • Bluesocket 2030 High-Performance Dual Radio 802.11ac Access Point
  • Wall/Ceiling/T-bar Mount Kit
Certifications & Standards:
Electrical/Safety Compliance:
  • UL 1950
  • CSA 22.2
  • IEC 60950
  • EN 60950
Radio Approvals:
  • FCC Part 15.247
  • RSS-210 (Canada)
  • EN 300.328 (Europe)
  • AS/NZS 4771 (Australia & New Zealand)
  • NCC (Taiwan) and IDA (Singapore)
  • EMI and Susceptibility (Class A)
  • FCC Part 15.107 and 15.109
  • ICES-003 (Canada)
  • EN 301.489-1 and -17 (Europe)
  • AS/NZS 3548
IEEE Standards:
  • 802.11a
  • 802.11b
  • 802.11g
  • 802.11n
  • 802.11ac
  • 802.11e
  • 802.1p
  • 802.1X
  • 802.3af
Warranty
Limited Warranty:
Lifetime
Item Numbers
GTIN: 0607565037337, 0735548566212
UPC: 607565037337, 735548566212
EAN: 0607565037337, 0735548566212
UNSPSC: 43222631
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Adtran 1700948F1 Products is also known as ADN-1700948F1
