Input Voltage:
120 V AC
Maximum Power Consumption:
9 W
Adtran Parts Accessory Model Overview
Products and parts from Adtran.

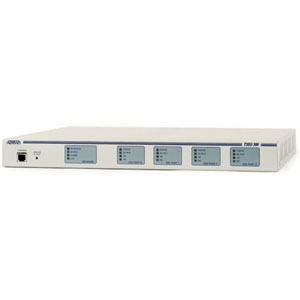

Adtran 1202217L2 Data Networking Overview
The ADTRAN T3SU 300 is a cost-effective multiport T3 DSU/CSU capable of providing users up to four DTE data ports for broadband connectivity over unchannelized T3 networks. This multiport DSU/CSU allows users to share the cost of a T3 line between multiple applications. The affordable T3SU 300 is one of many broadband access products from ADTRAN.
Power Description
Physical Characteristics
Height:
1.7"
Width:
11.6"
Depth:
17"
Weight (Approximate):
5 lb
Miscellaneous
Package Contents:
- One 8-pin to 8-pin modular cable
- Modular-to-female DB9 adapter
- User Manual
Additional Information:
- T3SU 300 Interface:
- Network Interface:
- Clear channel, non-channelized DS3
- Line build out: short (0 to 50 feet) and long (50 to 450 feet)
- Framing format: M13 and C-bit parity
- Line interface: 75-ohm BNC coax female connectors
- DTE Interface(s):
- Single integrated HSSI port, SCSI-II 50-pin female
- Three (3) option slots accept any combination of: HSSI Port, SCSI-II 50-pin female; High-speed V.35 port, M34 female
- All option cards are hot swappable
- LAN Interface(s):
- Supports up to 3 Quad (4-port) Bridge modules
- Module provides four auto-sensing 10/100 BaseT Ethernet ports
- Acts as a bridge for data transport over the WAN
- Provides Ethernet switching between each of the LAN ports
- DSX-1 Interface:
- Supports up to 3 Quad DSX modules
- ANSI T1.403, AT&T TR 62411
- SF/ESF AMI/B8ZS
- Auto line build-out for 0-655 ft
- VT 100 Terminal Interface:
- RJ48, EIA-232 compatible, female DB9 adapter provided
- Inband remote configuration and statistics - DTE Rates Supported:
- Bandwidth selectable in 75 Kbps increments - Clocking:
- Loop (slaved to network receive clock)
- Local (private network master) - Performance Monitoring:
- Local and Remote Network Port Statistics:
- Current 15-minute, 24-hour (96 15-minute intervals) and total for 24 hours
- P-bit errored & severely errored seconds
- Severely errored framing seconds
- Line, P-bit, C-bit coding violations
- Line errored, unavailable seconds
- C-bit errored & severely errored seconds
- DTE Ports: Inactive based on loss of DTR and/or RTS
- Integrated 10BaseT Ethernet and SLIP/PPP (async) port
- MIB II, RFC 1213 & 1407 compliant
- ADTRAN Enterprise MIB for extended monitoring and DSU control/configuration
Certifications & Standards:
- FCC Part 15
- Class A
- UL and CUL
Warranty
Limited Warranty:
5 Year
Item Numbers
GTIN:
0607565011931
UPC:
607565011931
EAN:
0607565011931
UNSPSC:
43222611
