Adtran 1200500L1 Data Networking

The Adtran 1200500L1 Data Networking has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.

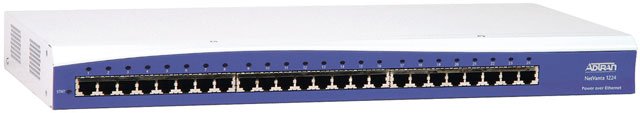

Adtran NetVanta 1224 - Adtran NetVanta 1224 Ethernet Switch - 24 x 10/100Base-TX
  • Features 24 networking ports to establish large network
  • Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
  • Fast Ethernet technology gives ideal solution for extending network connections to conference rooms, labs, lobbies and department workgroups
  • Management capability provides control over setup and configuration of your network
  • Rack mounting enables you to organize wires & secure cables for professional installation
Read More

Need a different version? See all Adtran NetVanta 1224 Data Networkings

Discontinued Need Assistance?
Add to Quote
Add to My Shopping List Add to Compare
Adtran 1200500L1 Data Networking
Adtran 1200500L1 Data Networking Adtran 1200500L1 Data Networking Adtran 1200500L1 Data Networking
Adtran 1200500L1 Data Networking
Adtran 1200500L1 Data Networking
Adtran 1200500L1 Data Networking
Adtran NetVanta 1224 Data Networking Model Overview
NetVanta 1224 from Adtran.
Adtran 1200500L1 Data Networking Overview

The NetVanta 1224 managed Ethernet switch is designed for costeffective Local Area Network (LAN) switching. This scalable, full-featured product line is suitable for networks requiring access switches for interconnecting LAN devices or network segmentation. It is ideal for applications requiring Fast Ethernet and Gigabit Ethernet switch functionality.

Interfaces/Ports
Total Number of Network Ports:
24
Management Port:
Yes
Number of Network (RJ-45) Ports:
24
Port/Expansion Slot Details:
  • 24 x Fast Ethernet Network
  • 2 x Gigabit Ethernet Expansion Slot
Media & Performance
Media Type Supported:
Twisted Pair
Ethernet Technology:
Fast Ethernet
Network Technology:
10/100Base-TX
I/O Expansions
Number of Total Expansion Slots:
2
Expansion Slot Type:
SFP
Number of SFP Slots:
2
Management & Protocols
Manageable:
Yes
Management:
Management Methods:
  • Telnet CLI
  • Web-based GUI
  • SSH CLI
  • Management Features:
  • NTP (Network Time Protocol)
  • TFTP/FTP firmware update
  • Dual firmware images stored in unit
  • DHCP client/server
  • Configuration script download
Memory
Standard Memory:
16 MB
Power Description
Input Voltage:
  • 110 V AC
  • 220 V AC
Frequency:
60 Hz
Power Consumption:
25 W
Physical Characteristics
Form Factor:
Rack-mountable
Height:
1.7"
Width:
17.2"
Depth:
7.8"
Weight (Approximate):
7 lb
Miscellaneous
Additional Information:
Storm Control:
  • Broadcast
  • Unicast
  • Multicast
Certifications & Standards:
  • IEEE 802.1D: Spanning Tree
  • IEEE 802.1w: Rapid Spanning Tree
  • IEEE 802.3ad: Link Aggregation
  • IEEE 802.1p: priorities
  • IEEE 802.1Q: tagged trunked VLANs
  • Agency Approvals:
  • FCC Part 15 Class A
  • UL 1950/CSA
  • CE Mark
  • C-tick
Warranty
Limited Warranty:
5 Year
Item Numbers
GTIN: 0607565014260
UPC: 607565014260
EAN: 0607565014260
UNSPSC: 43222612
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Adtran 1200500L1 Data Networking is also known as ADN-1200500L1
