Adtran 1200315L1 Data Networking

The Adtran 1200315L1 Data Networking has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
Adtran ATLAS 550 - Adtran Atlas 550 Expansion Module - 4 x ISDN BRI (U)
Recommended TrueSupport Coverage (/mo.)

Are you sure you don't need TrueSupport?

The average internal IT
cost for device support is over per year!

With TrueSupport you're
covered - and for way less!
  • Hardware Helpdesk Support
  • RMA Repair Facilitation
  • OEM Service Contract Management
  • Premium Phone & Email Support
  • Billed annually per device

Only /month
Subtotal ( items)
You've just added this product to the cart:

Go To Cart
Add to Quote

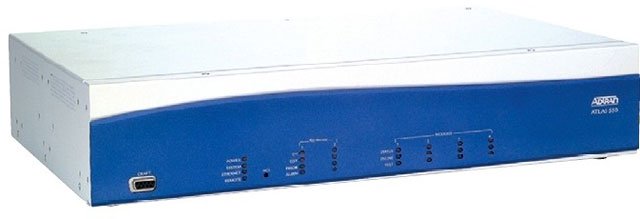

Adtran ATLAS 550 Data Networking Model Overview
The Adtran ATLAS 550 of Integrated Access Devices (IADs) offers one of the most versatile integrated access platforms available on the market today for converging voice, video, data, and Internet communications. This series includes the ATLAS 550 Integrated Access Device (IAD) chassis, modules, and bundled systems designed to improve and lower network costs for enterprise businesses and network service providers.
Adtran 1200315L1 Data Networking Overview
ATLAS includes an advanced access architecture for switching dial-up calls to specific ports or DS0s. The Quad Basic Rate ISDN (BRI) Module contains four ISDN U-Interfaces and combines with other ATLAS 550 components to implement an ISDN access switch. The Quad BRI Module can connect to the ISDN network (NT mode), or it can emulate the ISDN network to other ISDN access devices (LT mode) that support the U-Interface, such as terminal adapters and network termination units.

As a component in an ATLAS 550 access switching application, the Quad BRI Module can consolidate multiple Basic Rate ISDN (BRI) connections onto T1/PRI access lines. The module also supports BRI-to-BRI, BRIto-PRI, and PRI-to-PRI switching. In addition, the ATLAS 550 can convert between ISDN D channel (PRI or BRI) and T1 robbed bit signaling, allowing non-ISDN equipment to access a more efficient PRI or BRI facility. Moreover, the module's call filtering feature allows you to program on a per-user basis, the call types that will be answered and originated.

The Quad BRI module can be configured through a variety of mechanisms, including Telnet or VT100 emulation. SNMP management is supported for alarm and event reporting.

The Quad BRI Module includes an extensive array of diagnostic tools to assist in identifying and correcting network problems including a built-in self-test utility, local and remote loopback testing for B1, B2, and 2B+D, and performance monitoring to ensure the quality of the ISDN line.
Technical Information
Data Networking
Total Number of Ports:
Connector Type:
Interfaces/Ports Details:
4 x RJ-45 ISDN BRI (U)
Media & Performance
Maximum Distance Supported:
18000 ft
Maximum Data Transfer Rate:
160 kbit/s
Package Contents:
  • Four RJ-45 to RJ-11 cables (7 ft) and user manual
  • Quick Start Guide
Additional Information:
  • Four basic rate ISDN U-Interfaces
  • LT mode and NT mode support
  • ANSI T1.601 compliant
  • Compliant with Lucent 5ESS, Nortel DMS100, and National ISDN
  • Near-end and far-end block error monitoring
  • Flash upgradable
  • Occupies a single user slot in the ATLAS 550 chassis
  • Hot swappable

    Termination Modes:
  • LT (Network Emulation)
  • NT (DCE)

  • Self-test
  • B1, B2, & 2B+D Local and Remote Loopbacks

    Performance Monitoring:
  • Near-End Block Errors (NEBES), & Far-End Block Errors (FEBES)

    Switch Compatibility:
  • Lucent 5ESS
  • Nortel DMS-100
  • National ISDN

    BRI Line Rate
  • 2B+D, 160 Kbps full duplex
  • ATLAS 550

    Switch Compatibility:
  • Lucent 5ESS
  • Nortel DMS-100
  • National ISDN
Limited Warranty:
5 Year
Item Numbers
GTIN: 0607565005213
UPC: 607565005213
EAN: 0607565005213
UNSPSC: 43201404
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Adtran 1200315L1 Data Networking is also known as ADN-1200315L1
