Encoding Method:
AMI/B8ZS
Adtran 1200060L2 Data Networking
Part Number:
1200060L2
Model:
Parts
Adtran Parts Accessory Model Overview
Products and parts from Adtran.

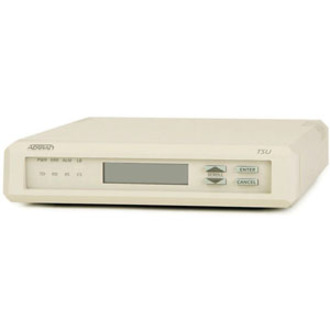

Adtran 1200060L2 Data Networking Overview
The ADTRAN TSU is a low cost, full-featured T1/FT1 Data Service/ Channel Service Unit (DSU/CSU). The TSU provides an interface between T1 or Fractional T1 service and the end user's Data Terminal Equipment (DTE) for applications such as LAN to LAN bridging, Frame Relay circuit termination and videoconferencing. The TSU provides access to traditional dedicated point-to-point T1 services as well as network termination for Frame Relay.
Technical Information
Interfaces/Ports
Serial V.35 Interface:
Yes
Power Description
Input Voltage:
115 V AC
Maximum Power Consumption:
5 W
Physical Characteristics
Height:
1.5"
Width:
9"
Depth:
6.3"
Weight (Approximate):
2 lb
Miscellaneous
Additional Information:
- Auto and manual D4(SF) or ESF framing support
- Easy to use front panel keypad for unit configuration and monitoring
- Remote TSU configuration via FDL or 8k in-band
- Local and remote loopback capability
- Extensive built in test capabilities
- Support for T-Watch PRO software for optional PC based configuration
- Single V.35 DTE interface for applications such as LAN-to-LAN bridging, Frame Relay circuit termination, and dedicated videoconferencing
- Synchronous DTE rates in increments of 56 Kbps or 64 Kbps up to 1.536 Mbps
- Bantam test jacks
- Supports VT100 terminal configuration and remote - configuration using the control port
- Metal chassis
- Framing:
- SF/ESF
- Auto detection - ESF Format:
- AT&T 54016
- ANSI T1.403 - DSO Assignment:
- Contiguous
- Alternating - T1 Transmit Timing:
- Loop timed
- Internal
- DTE - DTE Transmit Clock: Automatic
- Performance Monitor Performance Data: BPVs/CRCs, ES, SES, UAS, % AS, % EFSEC, alarms, errors
- Reports: NI information stored for last 24 hours in 15 minute increments
- PRMS: ANSI performance report messages (user selectable)
- Built-In Test Patterns:
- 511 (active DS0s) with error insert available
- 1:8 (all DS0s)
- All 1's (all DS0s)
- All 0's (all DS0s)
- QRSS (active DS0s) w/ error insert available
Certifications & Standards:
- FCC part 15
- Class A
- FCC Part 68
- Industry
- Canada CS03, UL, CUL
Warranty
Limited Warranty:
5 Year
Item Numbers
GTIN:
0607565003783
UPC:
607565003783
EAN:
0607565003783
UNSPSC:
43222611
