Full specifications (PDF)
Application/Usage:
Voice
Adtran 1180430L1 Data Networking
Part Number:
1180430L1
Model:
Total Access 1500

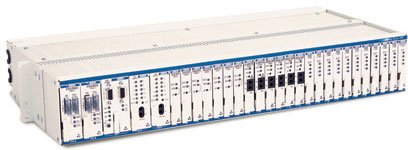

Adtran Total Access 1500 Accessory Model Overview
The Total Access 1500 Narrowband Multiservice Access Platform is designed for carriers seeking efficient TDM network access solutions. Compact and versatile, this platform integrates multiple functionalities within a sleek, 2U-high chassis, making it ideal for tight spaces in Central Offices (COs) or Remote Terminals (RTs). It supports a variety of services like POTS, special services, and data applications, enabling service providers to meet diverse customer needs with ease and reliability. With a 10-year warranty and NEBS Level 3 compliance, the Total Access 1500 ensures unmatched reliability and long-term performance.
Key Features
Specifications
Key Features
- Up to 96 two-wire interfaces
- Compact 2U design
- Fully redundant commons
- Five times the density of competing platforms
- SNMP management and TL1 interface support
- Integrated testing capabilities
- Industry-leading 10-year warranty
Specifications
- Mechanical:
- Dimensions: 3.5 in. H X 23 in. W X 11 in. D
- Weight: 12 lbs. (chassis only)
- Network Interfaces:
- Transport: DS1
- Capacity: 1 to 4 T1 plus 1 protect T1
- Line Rate: 1.544 Mbps +/- 75 bps
- Physical interface: Wire wrap
- Framing: D4 (SF)/ESF, TR-08
- Input signal: 0 to -36 dB
- Environmental:
- Operating temperature: -40°C to +65°C
- Storage temperature: -20° to +70° C
- Relative humidity: Up to 95 percent, non-condensing
- Electrical:
- DC Power: -40 to +56 VDC
- Connection: Screw terminals (A and B feed)
- Regulatory Standards:
- NEBS Level 3
- UL 1950
- FCC Part 15 (Class A) and Part 68
Adtran 1180430L1 Data Networking Overview
Complete array of Centrex business phone features and functions.
Technical Information
Interfaces/Ports
Total Number of Ports:
1
Connector Type:
Amphenol
Interfaces/Ports Details:
1 x 50-pin Amphenol T1
Media & Performance
Maximum Data Transfer Rate:
1.544
Physical Characteristics
Form Factor:
Hot-pluggable
Height:
3"
Width:
0.6"
Depth:
10"
Weight (Approximate):
0.28 lb
Miscellaneous
Additional Information:
- Maximum heat dissipation: 2.414 W
- Nominal voltage: -48 VDC
Maximum power draw:
- -7.0 V @ 0.2 W
- +5.0 V @ 0.52 W
- +3.3 V @ 0.029 W
- Extended Super Frame (ESF) signaling
- Remote provisioning
- Standard Warranty: 10 Year Repair/Replace
Compatibility:
Adtran Total Access 1500 chassis.
Warranty
Limited Warranty:
10 Year
Item Numbers
GTIN:
0607565015564
UPC:
607565015564
EAN:
0607565015564
UNSPSC:
43201547
