Full specifications (PDF)
Application/Usage:
Voice
Adtran 1180407L1 Data Networking
Part Number:
1180407L1
Model:
Total Access 1500

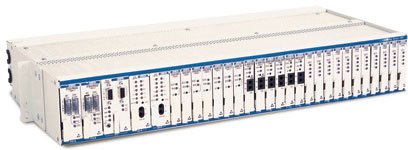

Adtran Total Access 1500 Accessory Model Overview
The Total Access 1500 Narrowband Multiservice Access Platform is designed for carriers seeking efficient TDM network access solutions. Compact and versatile, this platform integrates multiple functionalities within a sleek, 2U-high chassis, making it ideal for tight spaces in Central Offices (COs) or Remote Terminals (RTs). It supports a variety of services like POTS, special services, and data applications, enabling service providers to meet diverse customer needs with ease and reliability. With a 10-year warranty and NEBS Level 3 compliance, the Total Access 1500 ensures unmatched reliability and long-term performance.
Key Features
Specifications
Key Features
- Up to 96 two-wire interfaces
- Compact 2U design
- Fully redundant commons
- Five times the density of competing platforms
- SNMP management and TL1 interface support
- Integrated testing capabilities
- Industry-leading 10-year warranty
Specifications
- Mechanical:
- Dimensions: 3.5 in. H X 23 in. W X 11 in. D
- Weight: 12 lbs. (chassis only)
- Network Interfaces:
- Transport: DS1
- Capacity: 1 to 4 T1 plus 1 protect T1
- Line Rate: 1.544 Mbps +/- 75 bps
- Physical interface: Wire wrap
- Framing: D4 (SF)/ESF, TR-08
- Input signal: 0 to -36 dB
- Environmental:
- Operating temperature: -40°C to +65°C
- Storage temperature: -20° to +70° C
- Relative humidity: Up to 95 percent, non-condensing
- Electrical:
- DC Power: -40 to +56 VDC
- Connection: Screw terminals (A and B feed)
- Regulatory Standards:
- NEBS Level 3
- UL 1950
- FCC Part 15 (Class A) and Part 68
Adtran 1180407L1 Data Networking Overview
The Foreign Exchange Office (FXO) module is used in the Total Access 1500 multiservice platform, to provide analog voice extension. The FXO interfaces to the central office switch and to an FXS or RPOTS card over a T1 facility.
Four analog voice ports on the FXO access module provide four individual connections to the switch. The FXO supports standard loop start and ground start options. The FXO also supports Dial Pulse Originate (DPO) functionality.
Technical Information
Interfaces/Ports
Total Number of Ports:
4
Interfaces/Ports Details:
4 x T1 FXO
Media & Performance
Network Technology:
T1
Maximum Data Transfer Rate:
1.544
Physical Characteristics
Form Factor:
Hot-swappable
Height:
3.3"
Depth:
10"
Weight (Approximate):
1 lb
Miscellaneous
Additional Information:
- Supports FXO or DPT operating modes
- Meets the requirements of NEBS Level 3
Compatibility:
Adtran Total Access 1500 chassis
Item Numbers
UNSPSC:
43201547
