Application/Usage:
Access Control
Adtran 1180212L2 Data Networking
Part Number:
1180212L2
Model:
Total Access 1500

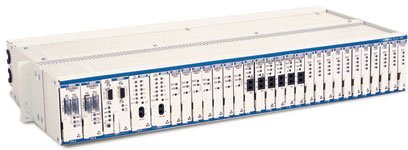

Adtran Total Access 1500 Accessory Model Overview
The Total Access 1500 Narrowband Multiservice Access Platform is designed for carriers seeking efficient TDM network access solutions. Compact and versatile, this platform integrates multiple functionalities within a sleek, 2U-high chassis, making it ideal for tight spaces in Central Offices (COs) or Remote Terminals (RTs). It supports a variety of services like POTS, special services, and data applications, enabling service providers to meet diverse customer needs with ease and reliability. With a 10-year warranty and NEBS Level 3 compliance, the Total Access 1500 ensures unmatched reliability and long-term performance.
Key Features
Specifications
Key Features
- Up to 96 two-wire interfaces
- Compact 2U design
- Fully redundant commons
- Five times the density of competing platforms
- SNMP management and TL1 interface support
- Integrated testing capabilities
- Industry-leading 10-year warranty
Specifications
- Mechanical:
- Dimensions: 3.5 in. H X 23 in. W X 11 in. D
- Weight: 12 lbs. (chassis only)
- Network Interfaces:
- Transport: DS1
- Capacity: 1 to 4 T1 plus 1 protect T1
- Line Rate: 1.544 Mbps +/- 75 bps
- Physical interface: Wire wrap
- Framing: D4 (SF)/ESF, TR-08
- Input signal: 0 to -36 dB
- Environmental:
- Operating temperature: -40°C to +65°C
- Storage temperature: -20° to +70° C
- Relative humidity: Up to 95 percent, non-condensing
- Electrical:
- DC Power: -40 to +56 VDC
- Connection: Screw terminals (A and B feed)
- Regulatory Standards:
- NEBS Level 3
- UL 1950
- FCC Part 15 (Class A) and Part 68
Adtran 1180212L2 Data Networking Overview
The Dual 4-Wire TO Access Module is intended to be deployed in the Total Access 1500 Chassis. The Dual 4-Wire TO provides for two individual 4-wire analog interfaces between a VF transmission facility and the Total Access 1500 Pulse Coded Modulation (PCM) backplane. Each TO interface provides 4-wire voice-grade (analog) data services with no signaling associated with the circuit, or where signaling is provided by in-band tones.
Technical Information
Physical Characteristics
Height:
3.1"
Width:
0.6"
Depth:
10.1"
Weight (Approximate):
1 lb
Miscellaneous
Additional Information:
- Supports configurations for Sink,Source or No Sealing Current
- Provisioning by craft interface or Site Manager
- Digital Loopback and 1004 Hz Digital Reference Signal (DRS)Tone Tests via craft port or Site Manager
- NEBS Level 3 and UL 1950 compliant
- Standard Warranty: 10 Year Repair/Replace
Compatibility:
Total Access 1500 chassis
Warranty
Limited Warranty:
10 Year
Item Numbers
GTIN:
0550099969431, 5053204767144
UPC:
550099969431
EAN:
0550099969431, 5053204767144
UNSPSC:
43222634
