Application/Usage:
Data Networking
Adtran 1180207L4 Data Networking
Part Number:
1180207L4
Model:
Total Access 1500

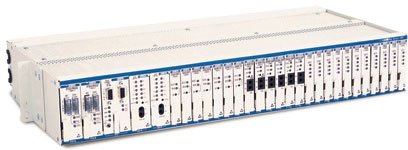

Adtran Total Access 1500 Accessory Model Overview
The Total Access 1500 Narrowband Multiservice Access Platform is designed for carriers seeking efficient TDM network access solutions. Compact and versatile, this platform integrates multiple functionalities within a sleek, 2U-high chassis, making it ideal for tight spaces in Central Offices (COs) or Remote Terminals (RTs). It supports a variety of services like POTS, special services, and data applications, enabling service providers to meet diverse customer needs with ease and reliability. With a 10-year warranty and NEBS Level 3 compliance, the Total Access 1500 ensures unmatched reliability and long-term performance.
Key Features
Specifications
Key Features
- Up to 96 two-wire interfaces
- Compact 2U design
- Fully redundant commons
- Five times the density of competing platforms
- SNMP management and TL1 interface support
- Integrated testing capabilities
- Industry-leading 10-year warranty
Specifications
- Mechanical:
- Dimensions: 3.5 in. H X 23 in. W X 11 in. D
- Weight: 12 lbs. (chassis only)
- Network Interfaces:
- Transport: DS1
- Capacity: 1 to 4 T1 plus 1 protect T1
- Line Rate: 1.544 Mbps +/- 75 bps
- Physical interface: Wire wrap
- Framing: D4 (SF)/ESF, TR-08
- Input signal: 0 to -36 dB
- Environmental:
- Operating temperature: -40°C to +65°C
- Storage temperature: -20° to +70° C
- Relative humidity: Up to 95 percent, non-condensing
- Electrical:
- DC Power: -40 to +56 VDC
- Connection: Screw terminals (A and B feed)
- Regulatory Standards:
- NEBS Level 3
- UL 1950
- FCC Part 15 (Class A) and Part 68
Adtran 1180207L4 Data Networking Overview
This ADTRAN Total Access 1500 Dual Foreign Exchange Office Dial Pulse Terminate with Transmission Only (FXO/DPT/TO) Access Module provides for two individual interfaces between a Total Access 1500 Pulse Code Modulation (PCM) backplane and a 2-wire voice frequency (VF) transmission and signaling facility. Each FXO interface provides for simultaneous signaling in each direction for use with 2-wire Off-Premises Station Lines, carrier extended PBX Trunks, or subscriber line Foreign Exchanges using ground or loop start signaling systems.
Technical Information
Interfaces/Ports
Total Number of Ports:
2
Interfaces/Ports Details:
2 x FXO Full-duplex
Physical Characteristics
Height:
3.1"
Width:
0.6"
Depth:
10.1"
Miscellaneous
Compatibility:
AdtranTotal Access 1500 chassis
Warranty
Limited Warranty:
10 Year
Item Numbers
UNSPSC:
43201404
