Full specifications (PDF)
Application/Usage:
Data Networking
Adtran 1180109L2 Data Networking
Part Number:
1180109L2
Model:
Total Access 1500

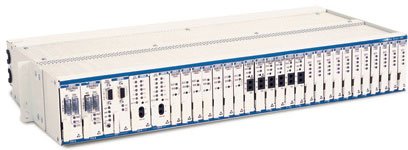

Adtran Total Access 1500 Accessory Model Overview
The Total Access 1500 Narrowband Multiservice Access Platform is designed for carriers seeking efficient TDM network access solutions. Compact and versatile, this platform integrates multiple functionalities within a sleek, 2U-high chassis, making it ideal for tight spaces in Central Offices (COs) or Remote Terminals (RTs). It supports a variety of services like POTS, special services, and data applications, enabling service providers to meet diverse customer needs with ease and reliability. With a 10-year warranty and NEBS Level 3 compliance, the Total Access 1500 ensures unmatched reliability and long-term performance.
Key Features
Specifications
Key Features
- Up to 96 two-wire interfaces
- Compact 2U design
- Fully redundant commons
- Five times the density of competing platforms
- SNMP management and TL1 interface support
- Integrated testing capabilities
- Industry-leading 10-year warranty
Specifications
- Mechanical:
- Dimensions: 3.5 in. H X 23 in. W X 11 in. D
- Weight: 12 lbs. (chassis only)
- Network Interfaces:
- Transport: DS1
- Capacity: 1 to 4 T1 plus 1 protect T1
- Line Rate: 1.544 Mbps +/- 75 bps
- Physical interface: Wire wrap
- Framing: D4 (SF)/ESF, TR-08
- Input signal: 0 to -36 dB
- Environmental:
- Operating temperature: -40°C to +65°C
- Storage temperature: -20° to +70° C
- Relative humidity: Up to 95 percent, non-condensing
- Electrical:
- DC Power: -40 to +56 VDC
- Connection: Screw terminals (A and B feed)
- Regulatory Standards:
- NEBS Level 3
- UL 1950
- FCC Part 15 (Class A) and Part 68
Adtran 1180109L2 Data Networking Overview
This Adtran Total Access 1500 Quad LIU is a common module for the ADTRAN standard Total Access 1500 chassis (P/N 1180001L1) or the Total Access 1500 19-inch chassis (P/N 1180019L1). It connects the chassis to a T1 line at the DSX-1 or DS1 level. All data formatting and line encoding as well as backplane timing and control are performed by this Quad LIU. The Quad LIU incorporates SLC Mode II operation, fast failover to the optional redundant offline LIU, and works in conjunction with the SCU to provide for Voice Frequency (VF) Test Access.
Technical Information
Physical Characteristics
Height:
3.1"
Width:
1.1"
Depth:
10.1"
Weight (Approximate):
1 lb
Miscellaneous
Package Contents:
- Total Access 1500 Quad Line Interface Unit (LIU)
- Quad Line Interface Unit (LIU) Installation and Maintenance Practice
Additional Information:
Features:
- Terminates up to 4 T1 lines providing DSX-1 or DS1 interface to the network
- Terminates 1 T1 Protect Line for LIU protection
- Supports up to 96 DS0s
- SF, ESF, or SLC-96 data framing formats
- AMI or B8ZS line code formats
- Local and remote loopbacks
- Front panel bantam jacks for monitoring T1s
- Local, loop, or external timing modes
- Supports ANSI T1.403 in-band payload and line loopback
- Supports SLC Mode I, II, and III
Compatibility:
ADTRAN Total Access 1500 chassis
Warranty
Limited Warranty:
10 Year
Item Numbers
GTIN:
0607565021824
UPC:
607565021824
EAN:
0607565021824
UNSPSC:
43201404
