Full specifications (PDF)
Number of Total Expansion Slots:
18

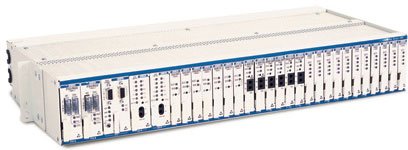

Adtran 1180019L1 Data Networking
Part Number:
1180019L1
Model:
Total Access 1500
Adtran Total Access 1500 Accessory Model Overview
The Total Access 1500 Narrowband Multiservice Access Platform is designed for carriers seeking efficient TDM network access solutions. Compact and versatile, this platform integrates multiple functionalities within a sleek, 2U-high chassis, making it ideal for tight spaces in Central Offices (COs) or Remote Terminals (RTs). It supports a variety of services like POTS, special services, and data applications, enabling service providers to meet diverse customer needs with ease and reliability. With a 10-year warranty and NEBS Level 3 compliance, the Total Access 1500 ensures unmatched reliability and long-term performance.
Key Features
Specifications
Key Features
- Up to 96 two-wire interfaces
- Compact 2U design
- Fully redundant commons
- Five times the density of competing platforms
- SNMP management and TL1 interface support
- Integrated testing capabilities
- Industry-leading 10-year warranty
Specifications
- Mechanical:
- Dimensions: 3.5 in. H X 23 in. W X 11 in. D
- Weight: 12 lbs. (chassis only)
- Network Interfaces:
- Transport: DS1
- Capacity: 1 to 4 T1 plus 1 protect T1
- Line Rate: 1.544 Mbps +/- 75 bps
- Physical interface: Wire wrap
- Framing: D4 (SF)/ESF, TR-08
- Input signal: 0 to -36 dB
- Environmental:
- Operating temperature: -40°C to +65°C
- Storage temperature: -20° to +70° C
- Relative humidity: Up to 95 percent, non-condensing
- Electrical:
- DC Power: -40 to +56 VDC
- Connection: Screw terminals (A and B feed)
- Regulatory Standards:
- NEBS Level 3
- UL 1950
- FCC Part 15 (Class A) and Part 68
Adtran 1180019L1 Data Networking Overview
The 19-Inch Chassis is intended for use in Central Office (CO), Remote Terminal (RT), and customer premises applications. The Total Access 1500 System is comprised of the chassis, common modules, and access modules. The Chassis is 19-inches wide by 3.50-inches high by 10.75 inches deep, and the chassis mounts in a standard 19-inch wide rack.
I/O Expansions
Power Description
Input Voltage:
48 V DC
Redundant Power Supply Supported:
Yes
Physical Characteristics
Form Factor:
Rack-mountable
Height:
3.5"
Width:
19"
Depth:
10.8"
Weight (Approximate):
10 lb
Item Numbers
GTIN:
0778890009396, 0888063113970
UPC:
778890009396, 888063113970
EAN:
0778890009396, 0888063113970
UNSPSC:
43201602
