Input Voltage:
-48 V DC
Output Voltage:
- 3.6 V DC
- 5.5 V DC
- -12 V DC
- -36 V DC
- 120 V AC

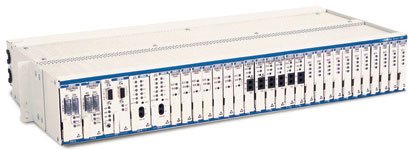

This PSU/RGU Power Module is a plug-in unit designed for use in the ADTRAN Total Access 1500 channel bank. It converts the incoming -48 VDC to regulated +5 VDC, +3.3 VDC and unregulated -7.5 VDC, -24 VDC, and -48 VDC for distribution to other modules. It also generates 95 Vrms nominal, 20 Hz ring voltage for distribution to the channel bank's voice access modules.
