Full specifications (PDF)
Application/Usage:
Data Networking
Adtran 1175407L2 Data Networking
Part Number:
1175407L2
Model:
Total Access 1500

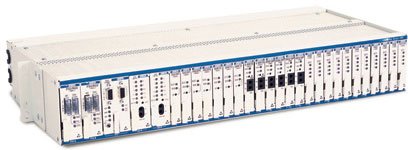

Adtran Total Access 1500 Accessory Model Overview
The Total Access 1500 Narrowband Multiservice Access Platform is designed for carriers seeking efficient TDM network access solutions. Compact and versatile, this platform integrates multiple functionalities within a sleek, 2U-high chassis, making it ideal for tight spaces in Central Offices (COs) or Remote Terminals (RTs). It supports a variety of services like POTS, special services, and data applications, enabling service providers to meet diverse customer needs with ease and reliability. With a 10-year warranty and NEBS Level 3 compliance, the Total Access 1500 ensures unmatched reliability and long-term performance.
Key Features
Specifications
Key Features
- Up to 96 two-wire interfaces
- Compact 2U design
- Fully redundant commons
- Five times the density of competing platforms
- SNMP management and TL1 interface support
- Integrated testing capabilities
- Industry-leading 10-year warranty
Specifications
- Mechanical:
- Dimensions: 3.5 in. H X 23 in. W X 11 in. D
- Weight: 12 lbs. (chassis only)
- Network Interfaces:
- Transport: DS1
- Capacity: 1 to 4 T1 plus 1 protect T1
- Line Rate: 1.544 Mbps +/- 75 bps
- Physical interface: Wire wrap
- Framing: D4 (SF)/ESF, TR-08
- Input signal: 0 to -36 dB
- Environmental:
- Operating temperature: -40°C to +65°C
- Storage temperature: -20° to +70° C
- Relative humidity: Up to 95 percent, non-condensing
- Electrical:
- DC Power: -40 to +56 VDC
- Connection: Screw terminals (A and B feed)
- Regulatory Standards:
- NEBS Level 3
- UL 1950
- FCC Part 15 (Class A) and Part 68
Adtran 1175407L2 Data Networking Overview
The Foreign Exchange Office (FXO) module is used in the Total Access® 750 and 850 to provide analog voice extension.
Technical Information
Interfaces/Ports
Total Number of Ports:
24
Interfaces/Ports Details:
24 x Channel FXO
Physical Characteristics
Height:
3.3"
Depth:
10"
Weight (Approximate):
1 lb
Miscellaneous
Additional Information:
- Four analog voice interfaces (up to 24 ports per chassis)
- Supports ground start,loop start
- Long loop capability - 1200 ohm
- V.90 modem compliant
- Installs in any slot one through six
- Hot swappable
- Operating Modes:
- FXO
- Foreign Exchange Office (FXO)
- Dial Pulse Terminate (DPT)
- Termination Impedance:
- 600 or 900 ohm, 2.15uF
- Signaling Methods:
- Loop start
- Ground start
- Wink start to loop start
- Wink start to ground start
- Immediate start to loop start
- Immediate start to ground start
- TR-08: Single Party Ringing (SPR) and Universal Voice Grade (UVG) analog ports supported
- Range:
- Loop Range: 0 to 1200 ohm loop
- Transmit Gain: 0 to -9 dBm
- Receive Gain: 0 to -9 dBm
Compatibility:
- Total Access 750/850 Voice Access
Warranty
Limited Warranty:
10 Year
Item Numbers
GTIN:
0607565006791, 0938914077743
UPC:
607565006791, 938914077743
EAN:
0607565006791, 0938914077743
UNSPSC:
43201404
