Fixed Focal Length:
4.20 mm

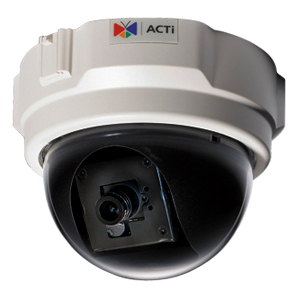

ACTi TCM-3111 Security Camera
Part Number:
TCM-3111
Model:
ACTi Parts Accessory Model Overview
Products and parts from ACTi.
ACTi TCM-3111 Security Camera Overview
This is a cutting-edge digital video surveillance camera. It can compress and transmit real time images with outstanding image quality (18 FPS @ SXGA, 1280x1024) through a standard TCP/IP network. This camera is your best choice to build an intelligent IP surveillance system.
Technical Information
Display & Graphics
Image Sensor Type:
CMOS
White Balance Modes:
- Hold
- Auto
- Manual
- Preset
Maximum Illumination:
0.5 lux
Color Supported:
- Color
- Monochrome
Video
Video Formats:
- MPEG-4
- MJPEG
- H.264
Maximum Video Resolution:
1280 x 1024
Lens
Lens Type:
Fixed
Maximum Focal Length:
4.20 mm
Lens Included:
Yes
Maximum Aperture:
f/1.8
Focus Modes:
Fixed Focus
Exposure
Shortest Shutter Speed:
1/15000 Second
Longest Shutter Speed:
1/5 Second
Exposure Control:
- Auto
- Manual
Network & Communication
Connectivity Technology:
Wired
Ethernet:
Yes
Ethernet Technology:
Fast Ethernet
Protocols:
- TCP
- UDP
- HTTP
- HTTPS
- DHCP
- PPPoE
- RTP
- RTSP
- IPv6
- DNS
- DDNS
- NTP
- ICMP
- ARP
- IGMP
- SMTP
- FTP
- UPnP
- SNMP
- Bonjour
Controls/Indicators
Status Indicators:
Power LED
Power Description
Maximum Power Consumption:
4.37 W
Physical Characteristics
Form Factor:
Dome
Height:
3.9"
Diameter:
5.1"
Weight (Approximate):
9.52 oz
Miscellaneous
Package Contents:
- TCM-3111 H.264 Megapixel IP PoE Fixed Dome
- Product CD
- Accessories
- Warranty Card
- Drill Template
Certifications & Standards:
- CE
- FCC
Security Features:
- IP Address Filtering
- HTTPS Encryption
- Password Protected User Levels
- IEEE 802.1X Network Access Control
Environmentally Friendly:
Yes
Environmental Certification:
- RoHS
- WEEE
Item Numbers
GTIN:
4718201792933
EAN:
4718201792933
UNSPSC:
46171610
The ACTi TCM-3111 Security Camera is also known as
ACI-TCM3111
