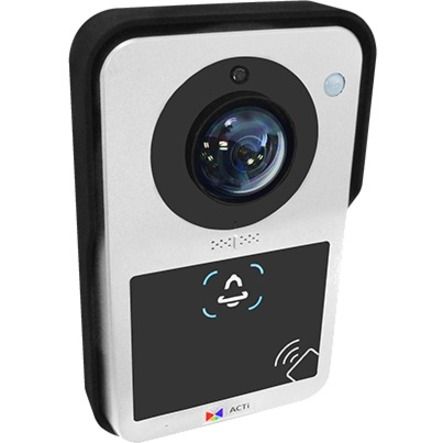

ACTi Q950 Security System Products

Overview

ACTi Parts Accessory Model Overview

Products and parts from ACTi.

Detailed Specs

Technical Information

Communication Mode:

Full-duplex

Camera

Image Sensor Type:

CMOS

Camera Resolution:

6 Megapixel

Minimum Illumination:

0.1 lux

Horizontal Viewing Angle:

199°

Vertical Viewing Angle:

199°

Power Description

Input Voltage:

12 V DC

Physical Characteristics

Durability:

Weather Proof
Vandal Resistant

Height:

4.3"

Width:

Depth:

1.9"

Weight (Approximate):

1.52 lb

Miscellaneous

Application/Usage:

Door Entry

Additional Information:

Device

Device Type Door Station
Image Sensor Progressive Scan CMOS
Sensor Size 1/1.8''
Day / Night Yes
Effective Pixels 3096 (H) x 2080 (V) (6.44 MP)
Horizontal Resolution 1800 TVL
Low Light Sensitvity Superior
Minimum Illumination Color: 0.1 lux at F2.8 (30 IRE, 2400°K), B/W: 0 lux at F2.8 (IR LED on)
Mechanical IR Cut Filter Yes
IR Sensitivity Range 700-1100 nm
IR LED / IR Distance IR LED x 6 (850 nm) / 5 m
Electronic Shutter 1/5 ~ 1/16,000 sec (manual mode); 1/5 ~ 1/16,000 sec (auto mode)
S/N Ratio 56 dB

Lens

Focal Length / Aperture Fixed Focal, f1.65 mm / F2.8
Iris Fixed Iris / Fixed Focus
Lens Mount Board Mount
Horizontal Viewing Angle 198.5° (overview area), 121.1° (high detail area)
Vertical Viewing Angle 198.5° (Fisheye View)

Video

Compression H.264 (Baseline/ Main/ High profile), MJPEG
Max. Resolution vs. Frame Rate Fisheye View: 20 fps at 3072 x 2048; 30 fps at 2048 x 2048; 20 fps at 1280 x 960; 30 fps at 1024 x 768; 30 fps at 800 x 600; 30 fps at 640 x 480
Dewarped View: 30 fps at 1920 x 1080; 30 fps at 1280 x 720; 30 fps at 640 x 480
Multi-Streaming Simultaneous triple streams based on three configurations
Bit Rate 128 Kbps - 12 Mbps (per stream)
Bit Rate Mode Constant, Variable
Image Enhancement Extreme WDR (130 dB), White Balance: Automatic, Hold, and Manual, Brightness, Contrast,
Sharpness, Auto Gain Control, 2D+3D Digital Noise Reduction, Flickerless, Defogging
Privacy Mask 4 configurable regions
Text Overlay User defined text on video
Built-in Analytics Shock Detection

Audio

Compression 8 kHz, 16 bit encoding, Mono, PCM, G.711
Audio-In / Out Built-in Microphone, Built-in Speaker, Line-in, and Line-out

Network

Protocol & Service IPv4/v6, TCP, UDP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, NTP, RTP, RTSP, RTCP, SMTP, FTP, IGMP, ICMP, ARP, Bonjour, UPnP, QoS, SNMP, IEEE 802.1X
Ethernet Port 1, Ethernet (10/100 Base-T), RJ-45 connector
Security IP Address Filtering, HTTPS Encryption, Password Protected User Levels, Anonymous Login, IEEE 802.1X Network Access Control

General

Power Source / Consumption

PoE Class3 (IEEE802.3af) / 4.2 W DC 12V / 3.8 W

Environmental Casing Weatherproof (IP66 rated), Vandal Resistant (IK09 rated)
Mount Type Surface, Gang Box
Starting / Operating Temperature -40°C ~ 50°C (-40°F ~ 122°F) / -40°C ~ 50°C (-40°F ~ 122°F)
Operating Humidity 10% ~ 85% RH
Approvals CE (EN 55022 Class B EN55024), FCC (Part15 Subpart B Class B), IP66, IK09, NEMA 4X, UL (for optional PoE injector and power adapter)

Integration

Unified Solution Fully compatible with ACTi software
ISV Integration Software Development Kit (SDK) available; ONVIF compliant (Profile S, Profile G)
Firmware Access Browser Microsoft Internet Explorer 11
Auto Firmware Upgrade Yes
GPS Position Manual Setting

Warranty

Limited Warranty:

3 Year

Item Numbers

GTIN: 0888034009554

UPC: 888034009554

EAN: 0888034009554

UNSPSC: 43191500
