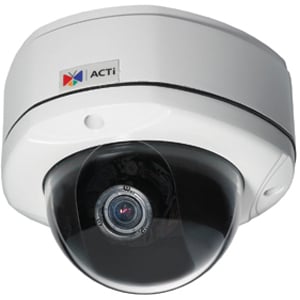

ACTi KCM-7311 Security Cameras

Part Number: KCM-7311
Model: Parts
$1,747.90
Item on backorder — chat for lead time

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Image Sensor Type
CMOS
Image Sensor Size
1/3.2"
White Balance Modes
AutoHoldManual
Color Supported
ColorMonochrome

Product Description:

  4MP FULL HD 1080P DOME CAMERA VANDAL/RUGGED D/N POE 3.6ZOOM

ACTi Parts Accessory Model Overview

Products and parts from ACTi.
Display & Graphics
Image Sensor Type:
CMOS
Image Sensor Size:
1/3.2"
White Balance Modes:
  • Auto
  • Hold
  • Manual
Color Supported:
  • Color
  • Monochrome
Field of View:
22.62° to 77.22°
Effective Camera Resolution:
4 Megapixel
Video
Video Formats:
  • H.264
  • MPEG-4
  • MJPEG
Maximum Video Resolution:
2032 x 1920
Maximum Frame Rate:
30 fps
Lens
Lens Type:
Zoom
Minimum Focal Length:
3.30 mm
Maximum Focal Length:
12 mm
Lens Included:
Yes
Lens Mount Type:
Board Mount
Minimum Aperture:
f/1.4
Maximum Aperture:
f/2.9
Optical Zoom:
3.6x
Focus Modes:
Automatic
Exposure
Shortest Shutter Speed:
1/2000 Second
Longest Shutter Speed:
1/15 Second
Network & Communication
Connectivity Technology:
Wired
Ethernet:
Yes
Ethernet Technology:
Fast Ethernet
Protocols:
  • TCP
  • UDP
  • HTTP
  • HTTPS
  • DHCP
  • PPPoE
  • RTP
  • RTSP
  • IPv6
  • DNS
  • DDNS
  • NTP
  • ICMP
  • ARP
  • IGMP
  • SMTP
  • FTP
  • UPnP
  • SNMP
  • Bonjour
Interfaces/Ports
Network (RJ-45):
Yes
Audio Line In:
Yes
Audio Line Out:
Yes
Power Description
Maximum Power Consumption:
12.24 W
Physical Characteristics
Mount Type:
  • Corner Mount
  • Flush Mount
  • Pendant Mount
  • Pole Mount
  • Surface Mount
  • Wall Mount
Height:
4.5"
Diameter:
6"
Weight (Approximate):
2.65 lb
Miscellaneous
Indoor/Outdoor:
Outdoor
Package Contents:
  • KCM-7311 Network Camera
  • Quick Installation Guide
  • Product CD
  • Terminal Blocks for Power DI/O and Audio
  • Accessories
  • Warranty Card
  • Drill Template
System Requirements:

Browser Supported: Microsoft Internet Explorer 6.0 or newer

Certifications & Standards:
  • CE
  • FCC
  • IP66
Ingress Protection Rating:
IP66
Security Features:
  • IP address filtering
  • HTTPS encryption
  • Password protected user levels
  • IEEE 802.1X network access control
Warranty
Limited Warranty:
3 Year
Item Numbers
GTIN: 0093534468149, 0758149319667, 0888034000070, 4718201790533
UPC: 093534468149, 758149319667, 888034000070
EAN: 0093534468149, 0758149319667, 0888034000070, 4718201790533
UNSPSC: 46171610
