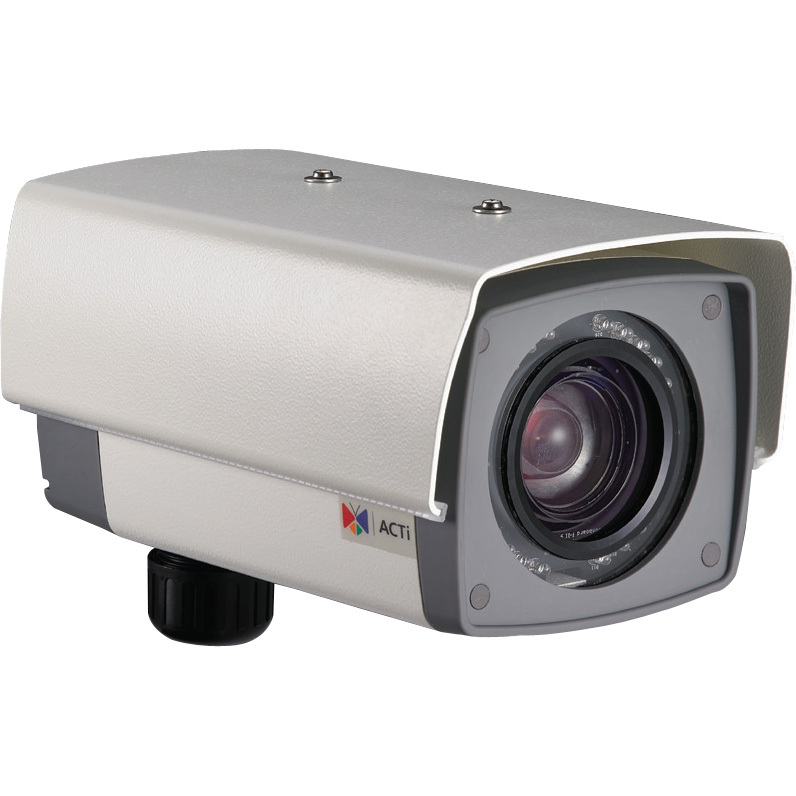

ACTi KCM-5611 Security Camera

ACTi - ACTi Network Camera - H.264, MPEG-4, MJPEG - 1920 x 1080 - 18x Optical - CMOS - Fast Ethernet
  • For remote surveillance needs, this network camera is best suited
  • Up to 1920 x 1080 resolution for surveillance in real-time
  • CMOS sensor is cheaper as compare to CCD and consumes less power while producing better HD videos
  • 84.60 mm maximum focal length provides incredible detail and how effective is your network camera
  • f/2.8 maximum aperture for productive capturing according to focal length and lighting conditions
  • 18x optical zoom for desired image clarity and maximum capturing convenience
  • Auto exposure control effectively recovers from the brightness stability, and the change related to the optimal exposure
  • Automatic focus mode for accurate, dedicated shots with maximum efficiency
  • Zoom lens type allows you to get a better, wide viewing angle, without compromising the quality of the image
  • Wired connectivity technology delivers exceptional performance to offer maximum usability
Read More

Need a different version? See all ACTi Parts Accessories

$924.89
Chat Now for Qty Discount
Add to Quote
Add to My Shopping List Add to Compare
ACTi KCM-5611 Security Camera
ACTi KCM-5611 Security Camera
ACTi KCM-5611 Security Camera ACTi KCM-5611 Security Camera
ACTi Parts Accessory Model Overview
Products and parts from ACTi.
Display & Graphics
Image Sensor Type:
CMOS
Image Sensor Size:
1/2.8"
White Balance Modes:
  • Auto
  • Hold
  • Manual
Color Supported:
  • Color
  • Monochrome
Field of View:
3.61° to 48.94°
Video
Video Formats:
  • H.264
  • MPEG-4
  • MJPEG
Maximum Video Resolution:
1920 x 1080
Maximum Frame Rate:
15 fps
Audio
Audio Formats:
PCM
Lens
Lens Type:
Zoom
Minimum Focal Length:
4.70 mm
Maximum Focal Length:
84.60 mm
Lens Included:
Yes
Minimum Aperture:
f/1.6
Maximum Aperture:
f/2.8
Optical Zoom:
18x
Focus Modes:
Automatic
Exposure
Shortest Shutter Speed:
1/2000 Second
Longest Shutter Speed:
1 Second
Exposure Control:
  • Auto
  • Manual
Network & Communication
Connectivity Technology:
Wired
Ethernet:
Yes
Ethernet Technology:
Fast Ethernet
Protocols:
  • TCP
  • UDP
  • HTTP
  • HTTPS
  • DHCP
  • PPPoE
  • RTP
  • RTSP
  • IPv6
  • DNS
  • DDNS
  • NTP
  • ICMP
  • ARP
  • IGMP
  • SMTP
  • FTP
  • UPnP
  • Bonjour
  • PELCO-D
Controls/Indicators
Status Indicators:

Power LED

Interfaces/Ports
Network (RJ-45):
Yes
Serial:
Yes
Audio Line In:
Yes
Audio Line Out:
Yes
Power Description
Maximum Power Consumption:
9.60 W
Physical Characteristics
Durability:
Weather Proof
Height:
5.1"
Width:
4.5"
Depth:
7.7"
Weight (Approximate):
2.92 lb
Miscellaneous
Indoor/Outdoor:
Outdoor
Certifications & Standards:
  • CE
  • FCC
  • IP66
Ingress Protection Rating:
IP66
Security Features:
  • IP address filtering
  • HTTPS encryption
  • Password protected user levels
  • IEEE 802.1X network access control
Platform Supported:
PC
Item Numbers
GTIN: 0092579719322, 0888034000544
UPC: 092579719322, 888034000544
EAN: 0092579719322, 0888034000544
UNSPSC: 46171610
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The ACTi KCM-5611 Security Camera is also known as ACI-KCM5611
