ACTi I96 Products

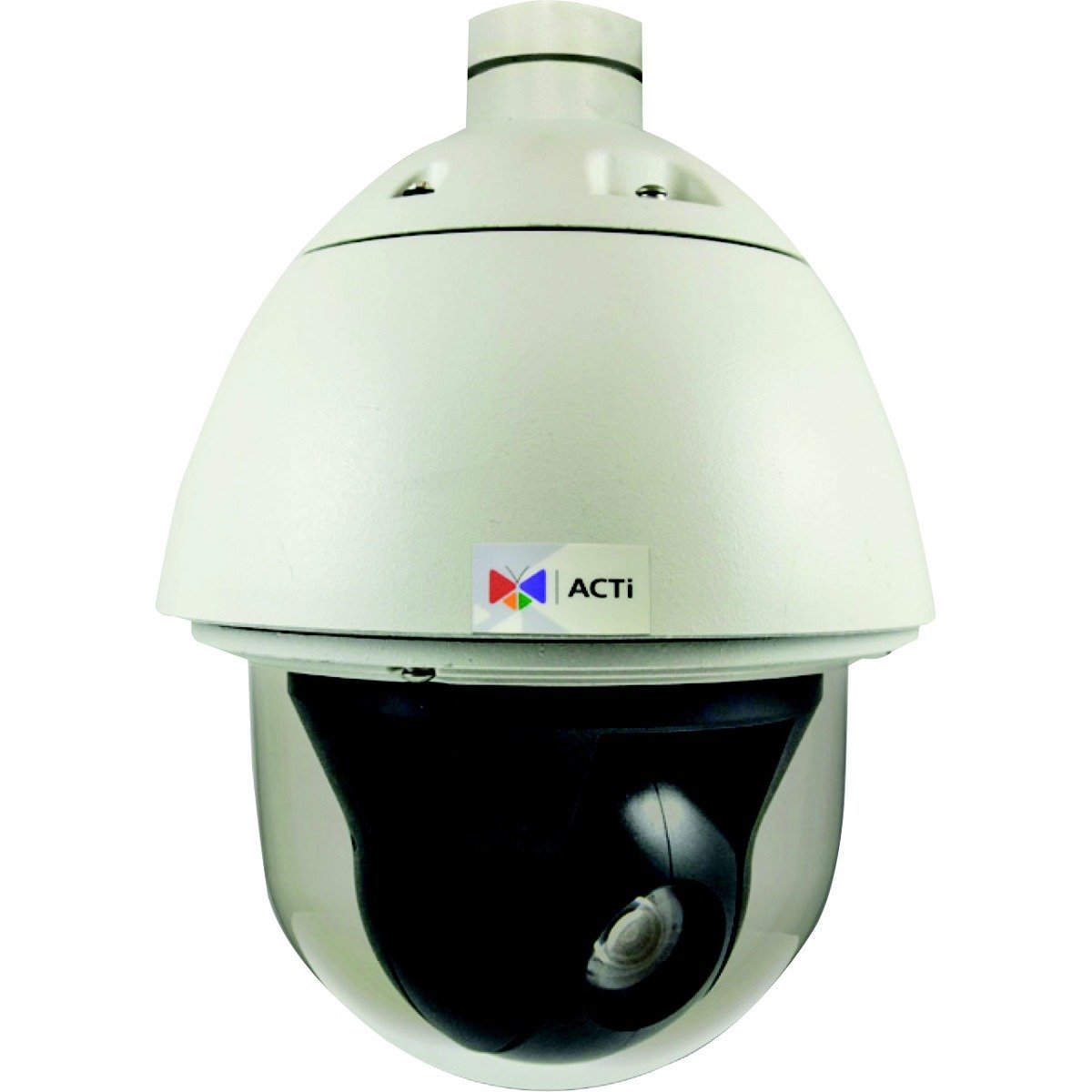

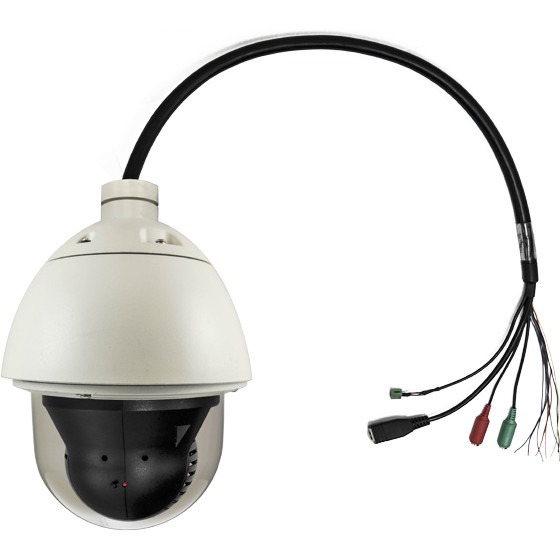

ACTi - ACTi I96 2 Megapixel Network Camera - Dome - MJPEG, H.264 - 1920 x 1080 - 30x Optical - CMOS - Fast Ethernet - Corner Mount, Pole Mount, Pendant Mount, Wall Mount
  • Up to 1920 x 1080 resolution for surveillance in real-time
  • CMOS sensor is cheaper as compare to CCD and consumes less power while producing better HD videos
  • 129 mm maximum focal length with sharp output to help identify and locate the object with added efficiency
  • f/5 maximum aperture for productive capturing according to focal length and lighting conditions
  • 30x optical zoom for desired image clarity and maximum capturing convenience
  • 16x digital zoom provides automatic magnification without compromising the image quality
  • Automatic focus mode for better reliance and sharp, detailed results
  • Zoom lens type allows you to conveniently change the angle of view quickly and without changing lenses
  • Corner Mount mount type ensures optimal results and maximum convenience
  • Day/Night feature for maximum efficiency and convenience
Read More

Need a different version? See all ACTi Parts Accessories

$3,250.68
Add to Quote
Add to My Shopping List Add to Compare
ACTi I96 Products
ACTi I96 Products ACTi I96 Products
ACTi I96 Products
ACTi I96 Products
ACTi Parts Accessory Model Overview
Products and parts from ACTi.
Display & Graphics
Image Sensor Size:
1/2.8"
Image Sensor Type:
CMOS
White Balance Modes:
  • Auto
  • Manual
  • Hold
Color Supported:
  • Color
  • Monochrome
Tilt:
-20° to 200°
Field of View:
2.61? to 66.4?
Swivel:
360°
Viewing Angle:
2.61° to 66.4°
Effective Camera Resolution:
2 Megapixel
Video
Video Formats:
  • MJPEG
  • H.264
Maximum Video Resolution:
1920 x 1080
Maximum Frame Rate:
30 fps
Audio
Audio Formats:
PCM
Lens
Lens Type:
Zoom
Minimum Focal Length:
4.30 mm
Maximum Focal Length:
129 mm
Lens Included:
Yes
Minimum Aperture:
f/1.6
Maximum Aperture:
f/5
Optical Zoom:
30x
Digital Zoom:
16x
Focus Modes:
Automatic
Exposure
Shortest Shutter Speed:
1/10000 Second
Longest Shutter Speed:
1/5 Second
Network & Communication
Connectivity Technology:
Wired
Ethernet:
Yes
Ethernet Technology:
Fast Ethernet
Protocols:
  • PELCO-D
  • PELCO-P
  • TCP
  • UDP
  • HTTP
  • HTTPS
  • DHCP
  • PPPoE
  • RTP
  • RTSP
  • IPv6
  • DNS
  • DDNS
  • NTP
  • ICMP
  • ARP
  • IGMP
  • SMTP
  • FTP
  • UPnP
  • SNMP
  • Bonjour
  • VISCA
Interfaces/Ports
Network (RJ-45):
Yes
Audio Line In:
Yes
Audio Line Out:
Yes
Power Description
Maximum Power Consumption:
31.50 W
Physical Characteristics
Mount Type:
  • Corner Mount
  • Pole Mount
  • Pendant Mount
  • Wall Mount
Form Factor:
Dome
Height:
10.9"
Diameter:
7.9"
Weight (Approximate):
5.51 lb
Miscellaneous
Features:
  • Day/Night
  • Weather Proof
  • Vandal Proof
  • 2D Digital Noise Reduction (2DNR)
  • 3D Digital Noise Reduction
  • Motion Detection
  • SD Card Local Storage
  • Built-in Heater
  • Built-in Fan
Indoor/Outdoor:
Outdoor
System Requirements:
Browser:
  • Internet Explorer 8.0 or newer
  • Safari
Certifications & Standards:
  • IP66
  • IK10
  • IK09
  • CE (EN 55022 Class B, EN 55024)
  • FCC (Part15 Subpart B Class B)
  • IP67
  • NEMA 4X

Impact Protection Rating:
  • IK09
  • IK10
Ingress Protection Rating:
  • IP67
  • IP66
Security Features:
  • IP Address Filtering
  • HTTPS Encryption
  • Password Protected User Levels
  • Anonymous Login
  • IEEE 802.1X Network Access Control
Warranty
Limited Warranty:
3 Year
Item Numbers
GTIN: 0097405778061, 0633556727284, 0888034003910, 4718201797587
UPC: 097405778061, 633556727284, 888034003910
EAN: 0097405778061, 0633556727284, 0888034003910, 4718201797587
UNSPSC: 46171610
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The ACTi I96 Products is also known as ACI-I96
