ACTi I92 Products

The ACTi I92 Products has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.

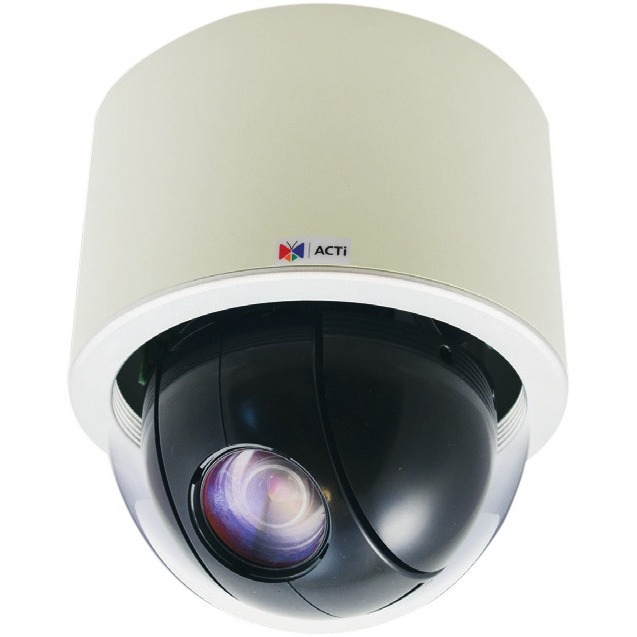

ACTi - ACTi I92 2 Megapixel Network Camera - Dome - MJPEG, H.264 - 1920 x 1080 - 30x Optical - CMOS - Fast Ethernet - Surface Mount, Wall Mount, Pendant Mount, Flush Mount, Corner Mount, Pole Mount
  • Up to 1920 x 1080 video resolution
  • CMOS sensor is cheaper as compare to CCD and consumes less power while producing better HD videos
  • 129 mm maximum focal length for dependable identification distances with better coverage
  • f/5 maximum aperture for better light absorption and dependable, better-quality results
  • 30x optical zoom ensures maximum surveillance productivity without compromising quality
  • 16x digital zoom provides automatic magnification without compromising the image quality
  • Automatic focus mode for better reliance and sharp, detailed results
  • Zoom lens type allows you to conveniently change the angle of view quickly and without changing lenses
  • Surface Mount mount type ensures optimal results and maximum convenience
  • Day/Night feature for maximum productivity with added dependability
Read More

Need a different version? See all ACTi Parts Accessories

Discontinued Need Assistance?
Chat Now for Qty Discount
Add to Quote
Add to My Shopping List Add to Compare
ACTi I92 Products
ACTi I92 Products
ACTi Parts Accessory Model Overview
Products and parts from ACTi.
Display & Graphics
Image Sensor Size:
1/2.8"
Image Sensor Type:
CMOS
White Balance Modes:
  • Auto
  • Manual
  • Hold
Color Supported:
  • Color
  • Monochrome
Tilt:
0° to 180°
Field of View:
2.68? to 66.4?
Swivel:
0° to 360°
Viewing Angle:
2.68° to 66.4°
Effective Camera Resolution:
2 Megapixel
Video
Video Formats:
  • MJPEG
  • H.264
Maximum Video Resolution:
1920 x 1080
Maximum Frame Rate:
30 fps
Video Signal Format:
NTSC
Audio
Audio Formats:
PCM
Lens
Lens Type:
Zoom
Minimum Focal Length:
4.30 mm
Maximum Focal Length:
129 mm
Lens Included:
Yes
Minimum Aperture:
f/1.6
Maximum Aperture:
f/5
Optical Zoom:
30x
Digital Zoom:
16x
Focus Modes:
Automatic
Exposure
Shortest Shutter Speed:
1/10000 Second
Longest Shutter Speed:
1/15 Second
Network & Communication
Connectivity Technology:
Wired
Ethernet:
Yes
Ethernet Technology:
Fast Ethernet
Protocols:
  • TCP
  • UDP
  • HTTP
  • HTTPS
  • DHCP
  • PPPoE
  • RTP
  • RTSP
  • IPv6
  • DNS
  • DDNS
  • NTP
  • ICMP
  • ARP
  • IGMP
  • SMTP
  • FTP
  • UPnP
  • SNMP
  • Bonjour
  • VISCA
  • PELCO-D
  • PELCO-P
Interfaces/Ports
Network (RJ-45):
Yes
Audio Line In:
Yes
Audio Line Out:
Yes
Power Description
Maximum Power Consumption:
12.94 W
Physical Characteristics
Mount Type:
  • Surface Mount
  • Wall Mount
  • Pendant Mount
  • Flush Mount
  • Corner Mount
  • Pole Mount
Form Factor:
Dome
Color:
White
Height:
6.4"
Diameter:
5.9"
Weight (Approximate):
3.41 lb
Miscellaneous
Features:
  • Day/Night
  • Vandal Resistant
  • SD Card Local Storage
  • 2D Digital Noise Reduction (2DNR)
  • 3D Digital Noise Reduction
  • Digital Image Stabilization
  • Privacy Masking
  • Motion Detection
Indoor/Outdoor:
Indoor
System Requirements:
Operating System:
  • Internet Explorer 8.0 or newer
Browser:
  • Safari
Certifications & Standards:
  • IK09
  • CE (EN 55022 Class B, EN 55024)
  • FCC (Part15 Subpart B Class B)
  • UL
Impact Protection Rating:
IK09
Security Features:
  • IP Address Filtering
  • HTTPS Encryption
  • Password Protected User Levels
  • Anonymous Login
  • IEEE 802.1X Network Access Control
Warranty
Limited Warranty:
3 Year
Item Numbers
GTIN: 0095276973783, 4718201796986
UPC: 095276973783
EAN: 0095276973783, 4718201796986
UNSPSC: 46171610
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The ACTi I92 Products is also known as ACI-I92
