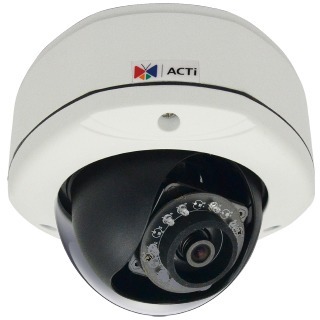

ACTi E73A Security Camera

ACTi - ACTi 5 Megapixel Network Camera - Dome - H.264, MJPEG - 2592 x 1944 - CMOS - Ethernet
  • Up to 2592 x 1944 video resolution
  • CMOS sensor is cheaper as compare to CCD and consumes less power while producing better HD videos
  • 2.93 mm maximum focal length with sharp output to help identify and locate the object with added efficiency
  • f/2 maximum aperture for productive capturing according to focal length and lighting conditions
  • Fixed Focus focus mode for better reliance and sharp, detailed results
  • Up to 98.43 ft of night vision
  • Infrared night vision type efficiently detects infrared waves that are invisible to the naked eye
  • Fixed lens type is ideal for indoor video surveillance where light levels are constant and unchanged
  • Gooseneck mount type is reliable and allows trouble-free and easy usage
  • Day/Night feature for maximum productivity with added dependability
Read More

Need a different version? See all ACTi Parts Accessories

Please Call for Pricing or to Purchase
In Stock
Add to Quote
Add to My Shopping List Add to Compare
ACTi E73A Security Camera
ACTi E73A Security Camera ACTi E73A Security Camera
ACTi E73A Security Camera
ACTi E73A Security Camera
ACTi Parts Accessory Model Overview
Products and parts from ACTi.
Technical Information
HD Recording:
Yes
Night Vision:
Yes
Night Vision Distance:
98.43 ft
Night Vision Type:
Infrared
Number of IR LEDs:
10
Display & Graphics
Image Sensor Type:
CMOS
Image Sensor Size:
1/3.2"
White Balance Modes:
  • Auto
  • Manual
  • Hold
Color Supported:
  • Color
  • Monochrome
Field of View:
Horizontal Viewing Angle : 82.3° ; Vertical Viewing Angle : 62.3°
Effective Camera Resolution:
5 Megapixel
Video
Video Formats:
  • H.264
  • MJPEG
Maximum Video Resolution:
2592 x 1944
Maximum Frame Rate:
30 fps
Lens
Lens Type:
Fixed
Maximum Focal Length:
2.93 mm
Lens Included:
Yes
Lens Mount Type:
Board Mount
Maximum Aperture:
f/2
Focus Modes:
Fixed Focus
Network & Communication
Connectivity Technology:
Wired
Ethernet:
Yes
Ethernet Technology:
Ethernet
Remote Management:
Yes
Storage
Storage Type:
Memory Card
Interfaces/Ports
Network (RJ-45):
Yes
Audio Line In:
Yes
Audio Line Out:
Yes
Power Description
Maximum Power Consumption:
4.58 W
Physical Characteristics
Mount Type:
  • Gooseneck
  • Wall Mount
  • Corner Mount
  • Junction Box Mount
  • Pole Mount
  • Ceiling Mount
Form Factor:
Dome
Durability:
  • Weather Proof
  • Vandal Proof
Diameter:
5.9"
Weight (Approximate):
2.22 lb
Environmental Conditions
Minimum Operating Temperature:
-40°F (-40°C)
Maximum Operating Temperature:
122°F (50°C)
Operating Humidity:
85%
Miscellaneous
Features:
  • Day/Night
  • Digital Noise Reduction
  • Privacy Masking
  • Motion Detection
  • SD Card Local Storage
Indoor/Outdoor:
Outdoor
Certifications & Standards:
  • IP66
  • IK10
Impact Protection Rating:
IK10
Ingress Protection Rating:
IP67
Security Features:
  • IP Address Filtering
  • HTTPS Encryption
  • Password Protected User Levels
  • Anonymous login
  • IEEE 802.1X Network Access Control
Warranty
Limited Warranty:
3 Year
Item Numbers
GTIN: 0633556728274, 0888034004122, 4718201797792
UPC: 633556728274, 888034004122
EAN: 0633556728274, 0888034004122, 4718201797792
UNSPSC: 46171610
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The ACTi E73A Security Camera is also known as ACI-E73A
