ACTi E42A Security Camera

Part Number: E42A
Model:
Discontinued Need Assistance?
Item on backorder — chat for lead time

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Image Sensor Type
CMOS
Image Sensor Size
1/3.2"
White Balance Modes
AutoHoldManual
Minimum Illumination
0 lux

Product Description:

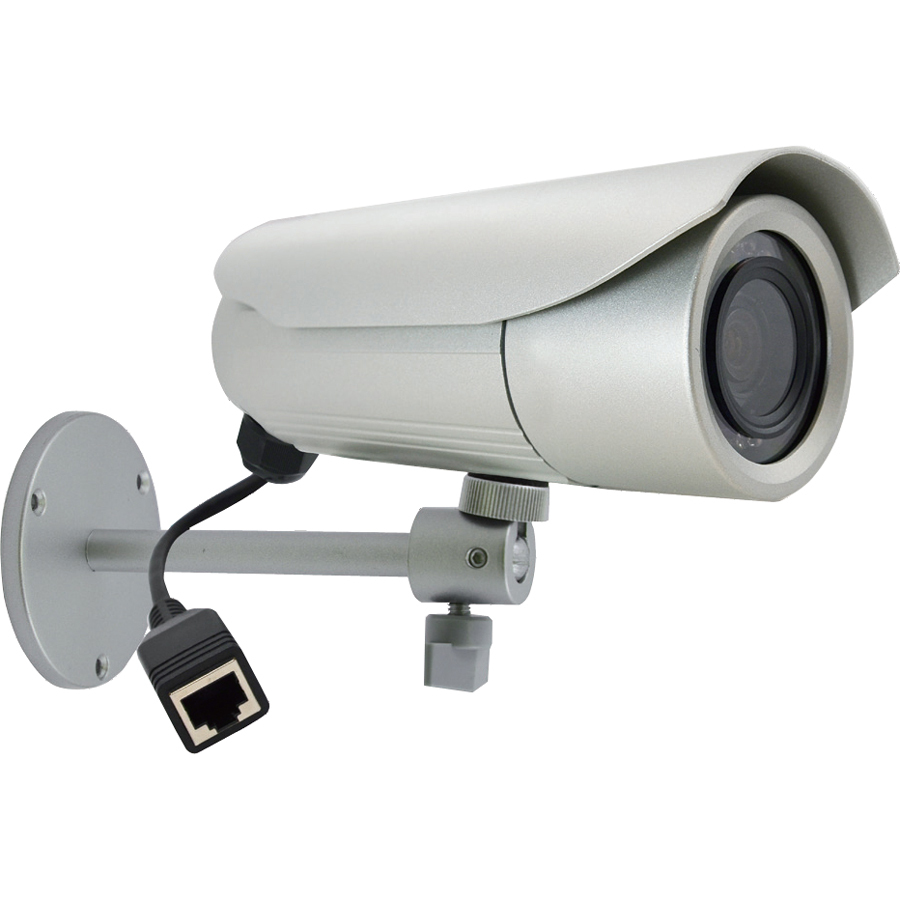

  ACTi E42A 3 Megapixel Network Camera - Bullet - H.264, MJPEG - 2048 x 1536 - 4.3x Optical - CMOS - Fast Ethernet

ACTi Parts Accessory Model Overview

Products and parts from ACTi.
Display & Graphics
Image Sensor Type:
CMOS
Image Sensor Size:
1/3.2"
White Balance Modes:
  • Auto
  • Hold
  • Manual
Minimum Illumination:
0 lux
Color Supported:
  • Color
  • Monochrome
Field of View:
28.2° to 70.5°
Effective Camera Resolution:
3 Megapixel
Video
Video Formats:
  • H.264
  • MJPEG
Maximum Video Resolution:
2048 x 1536
Maximum Frame Rate:
30 fps
Lens
Lens Type:
Zoom
Minimum Focal Length:
2.80 mm
Maximum Focal Length:
12 mm
Lens Included:
Yes
Lens Mount Type:
Board Mount
Maximum Aperture:
f/1.4
Optical Zoom:
4.3x
Focus Modes:
Manual
Exposure
Shortest Shutter Speed:
1/10000 Second
Longest Shutter Speed:
1/5 Second
Network & Communication
Connectivity Technology:
Wired
Ethernet:
Yes
Ethernet Technology:
Fast Ethernet
Protocols:
  • TCP
  • UDP
  • HTTP
  • HTTPS
  • DHCP
  • PPPoE
  • RTP
  • RTSP
  • IPv6
  • DNS
  • DDNS
  • NTP
  • ICMP
  • ARP
  • IGMP
  • SMTP
  • FTP
  • UPnP
  • SNMP
  • Bonjour
Power Description
Maximum Power Consumption:
4.61 W
Physical Characteristics
Form Factor:
Bullet
Durability:
Weather Proof
Depth:
8.6"
Diameter:
3"
Weight (Approximate):
1.31 lb
Miscellaneous
Features:
  • Day/Night
  • Motion Detection
  • Dual Stream
  • Digital Noise Reduction
Indoor/Outdoor:
Indoor/Outdoor
Package Contents:
  • 3MP Bullet with D/N, IR, Basic WDR, Vari-Focal Lens
  • Sunshield
  • Conduit Gland
  • Mounting Screw Kit
  • Sunshield Screw Kit
  • Quick Installation Guide
  • Bracket
  • Bracket Plate
  • Warranty Card
System Requirements:
Browser: Microsoft Internet Explorer 8.0 or newer
Certifications & Standards:
  • CE (EN 55022 Class B, EN 55024)
  • FCC (Part15 Subpart B Class B)
  • IP66
Ingress Protection Rating:
IP66
Security Features:
  • IP Address Filtering
  • HTTPs Encryption
  • Password Protected User Levels
  • Anonymous Login
  • IEEE802.1X Network Access Control
Warranty
Limited Warranty:
2 Year
Item Numbers
GTIN: 0038058494694
UPC: 038058494694
EAN: 0038058494694
UNSPSC: 46171610
