Recording Formats:
Full HD
HD Recording:
Yes
Night Vision:
Yes
Night Vision Distance:
98.43 ft
Night Vision Type:
Infrared

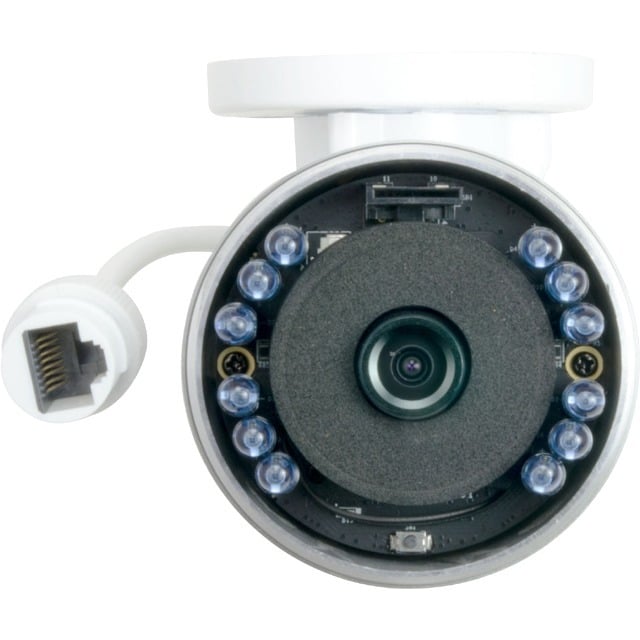

Number of IR LEDs:
12
ACTi Parts Accessory Model Overview
Products and parts from ACTi.
Technical Information
Display & Graphics
Image Sensor Type:
CMOS
Color Supported:
Color
Field of View:
Horizontal Viewing Angle 99° - Vertical Viewing Angle 52.8°
Effective Camera Resolution:
2 Megapixel
Video
Video Formats:
- H.264
- H.264 BP
- H.264 (MP)
- H.264 HP
- MJPEG
Maximum Video Resolution:
1920 x 1080
Maximum Frame Rate:
60 fps
Horizontal Resolution:
1100 TVL
Lens
Lens Type:
Fixed
Maximum Focal Length:
2.93 mm
Lens Included:
Yes
Lens Mount Type:
Board Mount
Maximum Aperture:
f/2
Optical Zoom:
1x
Exposure
Shortest Shutter Speed:
1/10000 Second
Longest Shutter Speed:
1/5 Second
Network & Communication
Connectivity Technology:
Wired
Remote Management:
Yes
Storage
Storage Type:
Memory Card
Interfaces/Ports
Network (RJ-45):
Yes
Physical Characteristics
Mount Type:
Bracket Mount
Form Factor:
Mini Bullet
Durability:
- Weather Proof
- Vandal Proof
Length:
5.8"
Diameter:
2.7"
Weight (Approximate):
12.77 oz
Environmental Conditions
Minimum Operating Temperature:
-40°F (-40°C)
Maximum Operating Temperature:
122°F (50°C)
Operating Humidity:
85%
Miscellaneous
Features:
- Wide Dynamic Range
- Removable IR Cut-off Filter
- Built-in IR LED
- White Balance
- Auto Gain Control
- Defog
- Digital Image Stabilization
- Electronic Image Stabilization
- Face Detection
- Motion Detection
- Tamper Detection
- Cross Line Detection
- Enter/Exit Detector
- HTTPS Encryption
- Password Protection
- SD Card Local Storage
Indoor/Outdoor:
Outdoor
Impact Protection Rating:
IK10
Ingress Protection Rating:
IP67
Warranty
Limited Warranty:
3 Year
Item Numbers
GTIN:
0097383640022, 4718201799734
UPC:
097383640022
EAN:
0097383640022, 4718201799734
UNSPSC:
46171610
Get help from a Barcoding Expert!
The ACTi E38 Products is also known as
ACI-E38
