Fixed Focal Length:
2.80 mm

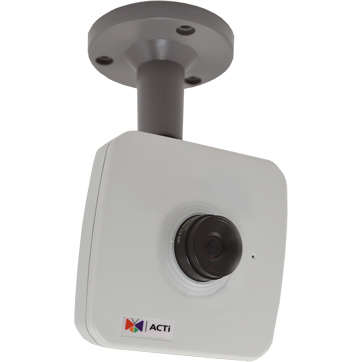

ACTi E12 Security Camera
Part Number:
E12
Model:
ACTi Parts Accessory Model Overview
Products and parts from ACTi.
Technical Information
Display & Graphics
Image Sensor Type:
CMOS
White Balance Modes:
- Auto
- Manual
- Hold
Minimum Illumination:
0.1 lux
Color Supported:
Color
Field of View:
81.6°
Video
Video Formats:
- MJPEG
- H.264
Maximum Video Resolution:
2048 x 1536
Maximum Frame Rate:
30 fps
Lens
Lens Type:
Fixed
Maximum Focal Length:
2.80 mm
Lens Included:
Yes
Lens Mount Type:
CS-Mount
Maximum Aperture:
f/2
Focus Modes:
Manual
Exposure
Shortest Shutter Speed:
1/2000 Second
Longest Shutter Speed:
1/5 Second
Network & Communication
Connectivity Technology:
Wired
Ethernet:
Yes
Ethernet Technology:
Fast Ethernet
Protocols:
- TCP
- UDP
- HTTP
- HTTPS
- DHCP
- PPPoE
- RTP
- RTSP
- IPv6
- DNS
- DDNS
- NTP
- ICMP
- ARP
- IGMP
- SMTP
- FTP
- UPnP
- SNMP
- Bonjour
Power Description
Maximum Power Consumption:
4.26 W
Physical Characteristics
Height:
3.8"
Width:
3.8"
Depth:
1.8"
Weight (Approximate):
7.23 oz
Miscellaneous
Features:
- Digital Noise Reduction
- Dual Stream
- Motion Detection
Indoor/Outdoor:
Indoor
Package Contents:
- E12 3MP Cube with Basic WDR, Fixed Lens
- Bracket
System Requirements:
Supported Browser: Microsoft Internet Explorer 6.0 or Newer
Certifications & Standards:
- CE
- FCC
- ONVIF
Security Features:
- IP Address Filtering
- HTTPS Encryption
- Password Protected User Levels
- IEEE 802.1X Network Access Control
Warranty
Limited Warranty:
2 Year
Item Numbers
GTIN:
4718201794555
EAN:
4718201794555
UNSPSC:
46171610
The ACTi E12 Security Camera is also known as
ACI-E12
