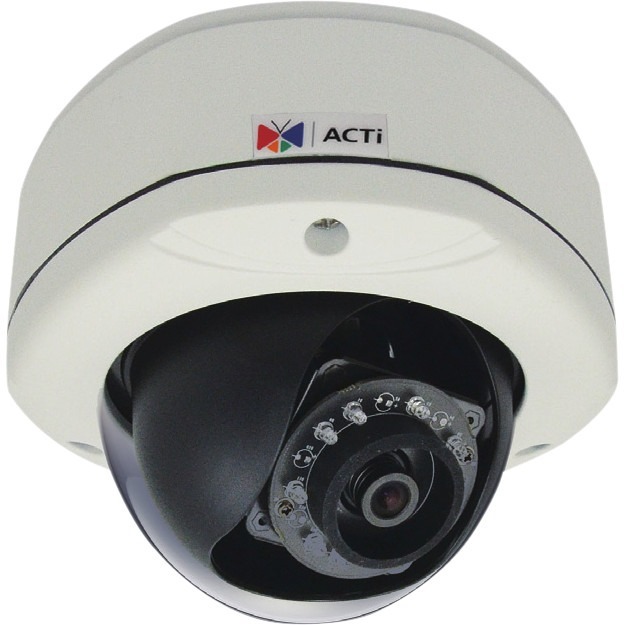

ACTi D72A Security Camera

The ACTi D72A Security Camera has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
ACTi - ACTi D72A 3 Megapixel Network Camera - Dome - H.264, MJPEG - 2048 x 1536 - CMOS - Fast Ethernet - Flush Mount, Wall Mount, Surface Mount, Corner Mount, Pole Mount
  • CMOS sensor is cheaper as compare to CCD and consumes less power while producing better HD videos
  • Up to 2048 x 1536 video resolution
Read More

Need a different version? See all ACTi Parts Accessories

Discontinued Need Assistance?
Add to Quote
Add to My Shopping List Add to Compare
ACTi D72A Security Camera
ACTi D72A Security Camera
ACTi D72A Security Camera
ACTi Parts Accessory Model Overview
Products and parts from ACTi.
Technical Information
Fixed Focal Length:
2.93 mm
Display & Graphics
Image Sensor Type:
CMOS
Image Sensor Size:
1/3.2"
White Balance Modes:
  • Auto
  • Manual
  • Hold
Minimum Illumination:
0 lux
Color Supported:
  • Color
  • Monochrome
Tilt:
17° to 163°
Swivel:
0° to 350°
Field of View:
83.3°
Effective Camera Resolution:
3 Megapixel
Video
Video Formats:
  • H.264
  • MJPEG
Maximum Video Resolution:
2048 x 1536
Maximum Frame Rate:
30 fps
Lens
Lens Type:
Fixed
Maximum Focal Length:
2.93 mm
Lens Included:
Yes
Lens Mount Type:
Board Mount
Wide Angle:
Yes
Maximum Aperture:
f/2
Focus Modes:
Fixed Focus
Exposure
Shortest Shutter Speed:
1/10000 Second
Longest Shutter Speed:
1/5 Second
Network & Communication
Connectivity Technology:
Wired
Ethernet:
Yes
Ethernet Technology:
Fast Ethernet
Protocols:
  • TCP
  • UDP
  • HTTP
  • HTTPS
  • DHCP
  • PPPoE
  • RTP
  • RTSP
  • IPv6
  • DNS
  • DDNS
  • NTP
  • ICMP
  • ARP
  • IGMP
  • SMTP
  • FTP
  • UPnP
  • SNMP
  • Bonjour
Physical Characteristics
Mount Type:
  • Flush Mount
  • Wall Mount
  • Surface Mount
  • Corner Mount
  • Pole Mount
Form Factor:
Dome
Durability:
  • Weather Proof
  • Vandal Proof
Height:
4.6"
Diameter:
5.9"
Weight (Approximate):
2.22 lb
Miscellaneous
Features:
  • Day/Night
  • SD Card Local Storage
  • Built-in IR LED
  • Digital Noise Reduction
  • Privacy Masking
  • Motion Detection
Indoor/Outdoor:
Outdoor
Certifications & Standards:
  • IP66
  • IK10
  • CE (EN 55022 Class B, EN 55024)
  • FCC (Part15 Subpart B Class B)
  • NEMA 4X
Impact Protection Rating:
IK10
Ingress Protection Rating:
IP66
Warranty
Limited Warranty:
2 Year
Item Numbers
GTIN: 0097383181099, 0633556728250, 0888034004092, 4718201797761
UPC: 097383181099, 633556728250, 888034004092
EAN: 0097383181099, 0633556728250, 0888034004092, 4718201797761
UNSPSC: 46171610
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The ACTi D72A Security Camera is also known as ACI-D72A
