Fixed Focal Length:
3.60 mm

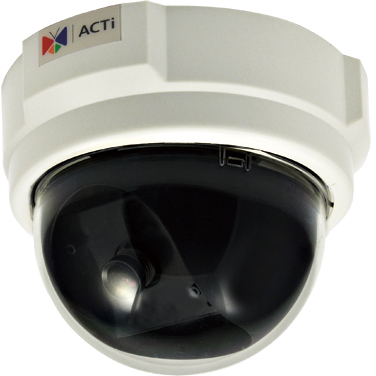

ACTi D51 Security Camera
Part Number:
D51
Model:
ACTi Parts Accessory Model Overview
Products and parts from ACTi.
Technical Information
Display & Graphics
Image Sensor Type:
CMOS
White Balance Modes:
- Auto
- Manual
- Hold
Minimum Illumination:
0.1 lux
Color Supported:
Color
Tilt:
180° to 0°
Swivel:
0° to 330°
Field of View:
61°
Video
Video Formats:
- MJPEG
- H.264
Maximum Video Resolution:
1280 x 720
Maximum Frame Rate:
30 fps
Lens
Lens Type:
Fixed
Maximum Focal Length:
3.60 mm
Lens Included:
Yes
Lens Mount Type:
Board Mount
Maximum Aperture:
f/2
Focus Modes:
Fixed Focus
Exposure
Shortest Shutter Speed:
1/2000 Second
Longest Shutter Speed:
1/5 Second
Network & Communication
Connectivity Technology:
Wired
Ethernet:
Yes
Ethernet Technology:
Fast Ethernet
Protocols:
- TCP
- UDP
- HTTP
- HTTPS
- DHCP
- PPPoE
- RTP
- RTSP
- IPv6
- DNS
- DDNS
- NTP
- ICMP
- ARP
- IGMP
- SMTP
- FTP
- UPnP
- SNMP
- Bonjour
Power Description
Maximum Power Consumption:
3.79 W
Physical Characteristics
Form Factor:
Dome
Height:
3.9"
Diameter:
5"
Weight (Approximate):
10.30 oz
Miscellaneous
Features:
- Digital Noise Reduction
- Dual Stream
- Motion Detection
Indoor/Outdoor:
Indoor
System Requirements:
Supported Browser: Microsoft Internet Explorer 6.0 or Newer
Certifications & Standards:
- CE
- FCC
- ONVIF
Security Features:
- IP Address Filtering
- HTTPS Encryption
- Password Protected User Levels
- IEEE 802.1X Network Access Control
Warranty
Limited Warranty:
1 Year
Item Numbers
GTIN:
0758149315768, 0888034000599, 4718201794425
UPC:
758149315768, 888034000599
EAN:
0758149315768, 0888034000599, 4718201794425
UNSPSC:
46171610
The ACTi D51 Security Camera is also known as
ACI-D51
