Fixed Focal Length:
4.20 mm

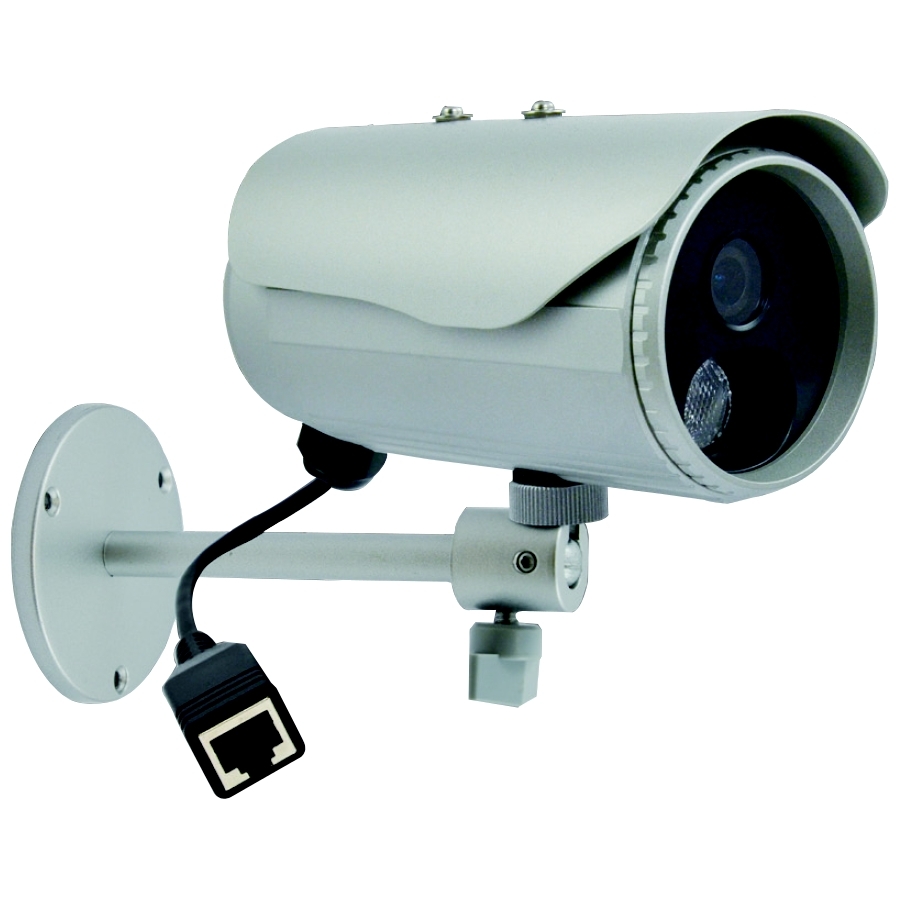

ACTi D31 Security Camera
Part Number:
D31
Model:
ACTi Parts Accessory Model Overview
Products and parts from ACTi.
Technical Information
Display & Graphics
Image Sensor Type:
CMOS
Image Sensor Size:
1/4"
White Balance Modes:
- Auto
- Manual
- Hold
Minimum Illumination:
0 lux
Color Supported:
- Monochrome
- Color
Field of View:
55.9°
Effective Camera Resolution:
1 Megapixel
Video
Video Formats:
- H.264
- MJPEG
Maximum Video Resolution:
1280 x 720
Maximum Frame Rate:
30 fps
Lens
Lens Type:
Fixed
Maximum Focal Length:
4.20 mm
Lens Included:
Yes
Lens Mount Type:
Board Mount
Maximum Aperture:
f/1.8
Focus Modes:
Fixed Focus
Exposure
Shortest Shutter Speed:
1/10000 Second
Longest Shutter Speed:
1/5 Second
Network & Communication
Connectivity Technology:
Wired
Ethernet:
Yes
Ethernet Technology:
Fast Ethernet
Protocols:
- TCP
- UDP
- HTTP
- HTTPS
- DHCP
- PPPoE
- RTP
- RTSP
- IPv6
- DNS
- DDNS
- NTP
- ICMP
- ARP
- IGMP
- SMTP
- FTP
- UPnP
- SNMP
- Bonjour
Power Description
Maximum Power Consumption:
3.79 W
Physical Characteristics
Mount Type:
- Wall Mount
- Ceiling Mount
- Pole Mount
- Corner Mount
Form Factor:
Bullet
Durability:
Weather Proof
Height:
7"
Diameter:
3"
Weight (Approximate):
1.14 lb
Miscellaneous
Features:
- Dual Stream
- Motion Detection
- Day/Night
- Digital Noise Reduction
Indoor/Outdoor:
Outdoor
Package Contents:
- 1MP Bullet with D/N, IR, Fixed Lens
- Bracket
System Requirements:
- Browser: Microsoft Internet Explorer 8.0 or newer
- VLC
Certifications & Standards:
- CE (EN 55022 Class B, EN 55024)
- FCC (Part15 Subpart B Class B)
- IP66
Ingress Protection Rating:
IP66
Security Features:
- IP Address Filtering
- HTTPS Encryption
- Password Protected User Levels
- Anonymous Login
- IEEE 802.1X Network Access Control
Platform Supported:
PC
Warranty
Limited Warranty:
1 Year
Item Numbers
GTIN:
0888034001077, 4718201794920
UPC:
888034001077
EAN:
0888034001077, 4718201794920
UNSPSC:
46171610
The ACTi D31 Security Camera is also known as
ACI-D31
