Recording Formats:
4K
HD Recording:
Yes
Night Vision:
Yes
Night Vision Distance:
65.62 ft
Night Vision Type:
Infrared
Number of IR LEDs:
12
ACTi Parts Accessory Model Overview
Products and parts from ACTi.
Technical Information
Display & Graphics
Image Sensor Type:
CMOS
Color Supported:
Color
Field of View:
Horizontal Viewing Angle 198.5° (overview area) 121.1° (high detail area) - Vertical Viewing Angle 198.5° (Fisheye View)
Effective Camera Resolution:
12 Megapixel
Video
Video Formats:
- H.264
- H.264 BP
- H.264 (MP)
- H.264 HP
- MJPEG
Maximum Video Resolution:
4000 x 3000
Maximum Frame Rate:
30 fps
Horizontal Resolution:
2250 TVL
Lens
Lens Type:
Fixed
Maximum Focal Length:
2.80 mm
Lens Included:
Yes
Lens Mount Type:
Board Mount
Maximum Aperture:
f/2.8
Exposure
Shortest Shutter Speed:
1/16000 Second
Longest Shutter Speed:
1/5 Second
Network & Communication
Connectivity Technology:
Wired
Remote Management:
Yes
Storage
Storage Type:
Memory Card
Interfaces/Ports
Network (RJ-45):
Yes
Power Description
Input Voltage:
12 V DC
Physical Characteristics
Mount Type:
- Surface Mount
- Gang Box Mount
- Flush Mount
- Pendant Mount
- Tilted Mount
- Wall Mount
- Pole Mount
- Corner Mount
- Straight Tube Mount
- Junction Box Mount
Form Factor:
Dome
Height:
1.7"
Diameter:
5.9"
Weight (Approximate):
15.73 oz
Environmental Conditions
Minimum Operating Temperature:
14°F (-10°C)
Maximum Operating Temperature:
122°F (50°C)
Operating Humidity:
85%
Miscellaneous
Features:
- Day/Night
- Built-in IR LED
- Wide Dynamic Range
- Auto Tracking
- Removable IR Cut-off Filter
- White Balance
- Auto Gain Control
- Defog
- 3D Digital Noise Reduction
- 2D Digital Noise Reduction (2DNR)
- Motion Detection
- Tamper Detection
- Shock Detection
- Cross Line Detection
- Built-in Microphone
- Microphone In
- Audio Compression
- HTTPS Encryption
- Password Protection
- SD Card Local Storage
Indoor/Outdoor:
Indoor
Warranty
Limited Warranty:
3 Year
Item Numbers
GTIN:
0888034008939
UPC:
888034008939
EAN:
0888034008939
UNSPSC:
46171610
Get help from a Barcoding Expert!

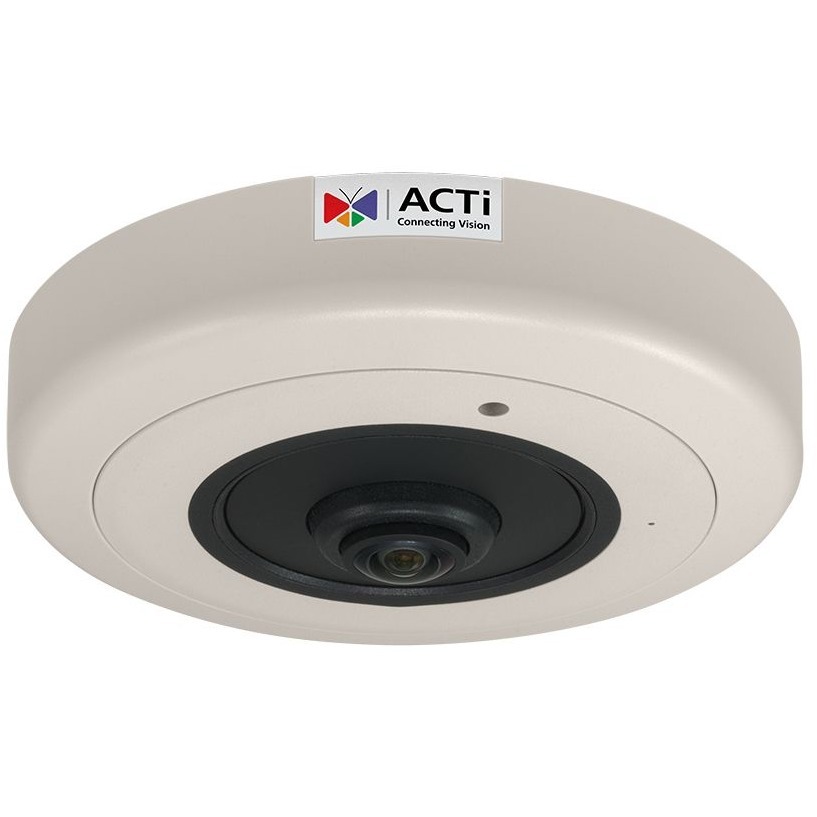

The ACTi B511A Security Camera is also known as
ACI-B511A
