ACTi B412 Security System Products

Part Number: B412
Model: Parts
Add to My Shopping List Add to Compare
$2,893.56

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
HD Recording
Yes
Night Vision
Yes
Night Vision Distance
196.85 ft
Night Vision Type
Infrared

Product Description:

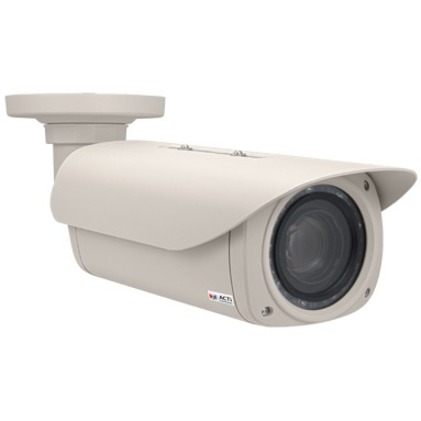

  ACTi 4 Megapixel Network Camera - H.264, MJPEG - 2688 x 1520 - 30x Optical - CMOS - Pole Mount, Ceiling Mount, Corner Mount, Wall Mount
Explore all ACTi Parts Accessories
Add to Quote
ACTi B412 Security System Products
ACTi B412 Security System Products
ACTi B412 Security System Products ACTi B412 Security System Products

ACTi Parts Accessory Model Overview

Products and parts from ACTi.
Technical Information
HD Recording:
Yes
Night Vision:
Yes
Night Vision Distance:
196.85 ft
Night Vision Type:
Infrared
Number of IR LEDs:
10
Display & Graphics
Image Sensor Type:
CMOS
Color Supported:
Color
Field of View:
Horizontal Viewing Angle 58° - 5.8° - Vertical Viewing Angle 45.3° - 5°
Effective Camera Resolution:
3 Megapixel
Video
Video Formats:
  • H.265
  • H.264
  • H.264 (MP)
  • H.264 HP
  • H.264 BP
  • MJPEG
Maximum Video Resolution:
2048 x 1536
Maximum Frame Rate:
30 fps
Horizontal Resolution:
1450 TVL
Lens
Lens Type:
Varifocal
Minimum Focal Length:
4.70 mm
Maximum Focal Length:
47 mm
Lens Included:
Yes
Lens Mount Type:
Board Mount
Minimum Aperture:
f/3
Maximum Aperture:
f/1.6
Optical Zoom:
10x
Exposure
Shortest Shutter Speed:
1/64000 Second
Longest Shutter Speed:
1/5 Second
Network & Communication
Connectivity Technology:
Wired
Remote Management:
Yes
Storage
Storage Type:
Memory Card
Interfaces/Ports
Network (RJ-45):
Yes
Power Description
Input Voltage:
12 V DC
Physical Characteristics
Mount Type:
  • Wall Mount
  • Ceiling Mount
  • Bracket Mount
  • Pole Mount
  • Gang Box Mount
  • Junction Box Mount
Form Factor:
Bullet
Durability:
  • Weather Proof
  • Vandal Proof
Color Family:
White
Product Color:
White
Height:
4.9"
Width:
4.1"
Depth:
14.5"
Weight (Approximate):
4.63 lb
Environmental Conditions
Minimum Operating Temperature:
-40°F (-40°C)
Maximum Operating Temperature:
140°F (60°C)
Maximum Operating Humidity:
85%
Miscellaneous
Features:
  • Wide Dynamic Range
  • Day/Night
  • Built-in IR LED
  • Removable IR Cut-off Filter
  • White Balance
  • Auto Gain Control
  • Defog
  • 3D Digital Noise Reduction
  • 2D Digital Noise Reduction (2DNR)
  • Privacy Masking
  • Motion Detection
  • Tamper Detection
Indoor/Outdoor:
Outdoor
Impact Protection Rating:
IK10
Ingress Protection Rating:
IP67
Warranty
Limited Warranty:
3 Year
Item Numbers
GTIN: 0888034010147
UPC: 888034010147
EAN: 0888034010147
UNSPSC: 46171610
The ACTi B412 Security System Products is also known as ACI-B412
