ACTi ACD-2100T Products

The ACTi ACD-2100T Products has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.

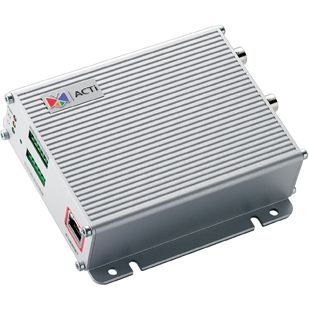

ACTi - ACTi One-Channel Entry-Level Video Server with Two Way Audio - Rack-mountable - 1 x Network (RJ-45) - 30 fps - 704 x 576 - PAL, NTSC

Need a different version? See all ACTi Parts Accessories

Discontinued Need Assistance?
Chat Now for Qty Discount
Add to Quote
Add to My Shopping List Add to Compare
ACTi ACD-2100T Products
ACTi ACD-2100T Products
ACTi Parts Accessory Model Overview
Products and parts from ACTi.
Interfaces/Ports
Network (RJ-45):
Yes
Audio Line In:
Yes
Audio Line Out:
Yes
Serial Port:
Yes
S-Video:
No
Token Ring:
No
Number of Network (RJ-45) Ports:
1
Network & Communication
Ethernet Technology:
Fast Ethernet
Wireless Specifications
Wireless LAN:
No
Management & Protocols
Protocols:
  • TCP/IP
  • UDP
  • HTTP
  • HTTPS
  • DHCP
  • PPPoE
  • RTP
  • RTSP
  • DNS
  • NTP
  • ICMP
  • ARP
  • IGMP
  • SMTP
  • FTP
  • UPnP
  • SNMP
  • PELCO-D
  • PELCO-P
  • VISCA
Video
Maximum Frame Rate:
30 fps
Maximum Video Resolution:
704 x 576
Video Signal Format:
  • PAL
  • NTSC
Video Formats:
  • MPEG-4
  • MJPEG
  • D1
Power Description
Input Voltage:
12 V DC
Physical Characteristics
Form Factor:
Rack-mountable
Height:
1.5"
Width:
4.4"
Depth:
4.7"
Weight (Approximate):
12.35 oz
Miscellaneous
Certifications & Standards:
  • CE
  • FCC
IEEE Standards:
  • 802.3
  • 802.3u
Item Numbers
UNSPSC: 43222619
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The ACTi ACD-2100T Products is also known as ACI-ACD2100T
