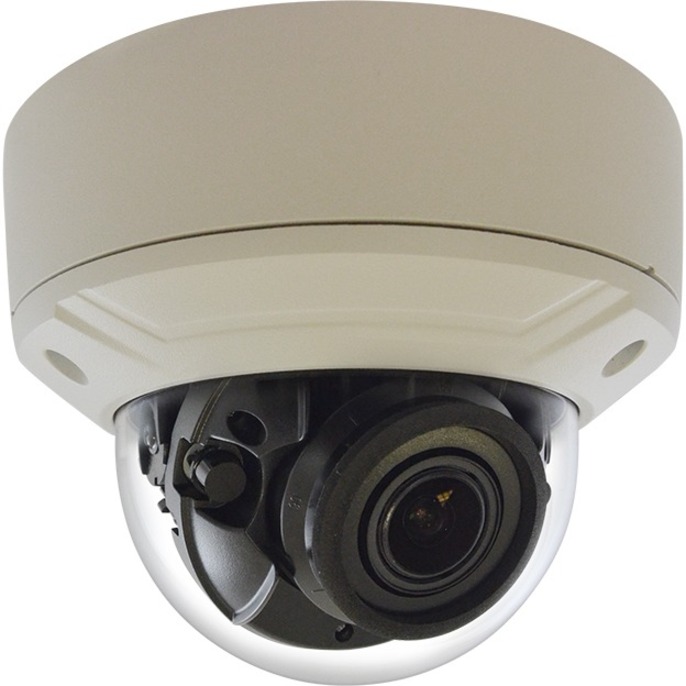

ACTi A811 Security Camera

ACTi - 4MP Outdoor Zoom Dome with D/N, Adaptive IR, Extreme WDR, SLLS, 5x Zoom lens, f2.7-13.5 mm/F1.6 (HOV: 104-29), Auto Focus (for installation), H.265/H.264, 1080p/30fps,, 3D DNR, Audio, MicroSDHC/MicroSDXC, PoE/DC12V, IP67, IK10, DI/DO
  • 4 Megapixel
  • Day & Night with Superior Low Light Sensitivity and IR LED
  • Extreme WDR
  • H.265 Compression
  • Super wide angle
  • Built-in Analytics
  • Event trigger, response and notification
Read More
$644.34
Recommended TrueSupport Coverage (/mo.)

x

Are you sure you don't need TrueSupport?

The average internal IT
cost for device support is over per year!

With TrueSupport you're
covered - and for way less!
  • Hardware Helpdesk Support
  • RMA Repair Facilitation
  • OEM Service Contract Management
  • Premium Phone & Email Support
  • Billed annually per device

Only /month
Subtotal ( items)

x
You've just added this product to the cart:

Go To Cart
Add to Quote
ACTi Parts Accessory Model Overview
Products and parts from ACTi.
Technical Information
HD Recording:
Yes
Night Vision:
Yes
Night Vision Distance:
278.87 ft
Night Vision Type:
Infrared
Display & Graphics
Image Sensor Type:
CMOS
Color Supported:
Color
Field of View:
Horizontal Viewing Angle: 104° - 29° - Vertical Viewing Angle: 55° - 17°
Effective Camera Resolution:
4 Megapixel
Video
Video Formats:
  • H.265
  • H.264
  • H.264 (MP)
  • H.264 HP
  • MJPEG
Maximum Video Resolution:
2688 x 1520
Maximum Frame Rate:
30 fps
Analog Video Signal Format:
CVBS
Lens
Lens Type:
Varifocal
Minimum Focal Length:
2.70 mm
Maximum Focal Length:
13.50 mm
Lens Included:
Yes
Lens Mount Type:
Board Mount
Maximum Aperture:
f/1.6
Optical Zoom:
5x
Exposure
Shortest Shutter Speed:
1/64000 Second
Longest Shutter Speed:
1/30 Second
Network & Communication
Connectivity Technology:
Wired
Remote Management:
Yes
Storage
Storage Type:
Memory Card
Interfaces/Ports
Network (RJ-45):
Yes
Power Description
Input Voltage:
12 V DC
Physical Characteristics
Mount Type:
  • Straight Tube Mount
  • Gooseneck
  • Wall Mount
  • Corner Mount
  • Pole Mount
  • Junction Box Mount
  • Gang Box Mount
  • Flush Mount
Form Factor:
Dome
Durability:
  • Weather Proof
  • Vandal Proof
Height:
3.9"
Diameter:
5.6"
Weight (Approximate):
2.31 lb
Environmental Conditions
Minimum Operating Temperature:
-22°F (-30°C)
Maximum Operating Temperature:
140°F (60°C)
Operating Humidity:
95%
Miscellaneous
Features:
  • Day/Night
  • Built-in IR LED
  • Wide Dynamic Range
  • Removable IR Cut-off Filter
  • White Balance
  • Back Light Compensation (BLC)
  • Auto Gain Control
  • 2D Digital Noise Reduction (2DNR)
  • 3D Digital Noise Reduction
  • Privacy Masking
  • Tamper Detection
  • Cross Line Detection
  • Face Detection
  • Motion Detection
  • Audio Compression
  • HTTPS Encryption
  • Password Protection
  • SD Card Local Storage
Indoor/Outdoor:
Outdoor
Impact Protection Rating:
IK10
Ingress Protection Rating:
IP68
Warranty
Limited Warranty:
3 Year
Item Numbers
UNSPSC: 46171610
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The ACTi A811 Security Camera is also known as ACI-A811
