HD Recording:
Yes
Night Vision:
Yes
Night Vision Distance:
213.25 ft
Night Vision Type:
Infrared
ACTi Parts Accessory Model Overview
Products and parts from ACTi.
Technical Information
Display & Graphics
Image Sensor Type:
CMOS
Color Supported:
Color
Field of View:
Horizontal Viewing Angle: 101.3° - Vertical Viewing Angle: 55.3°
Effective Camera Resolution:
4 Megapixel
Video
Video Formats:
- H.265
- H.264
- H.264 (MP)
- H.264 HP
- MJPEG
Maximum Video Resolution:
2688 x 1520
Maximum Frame Rate:
30 fps
Lens
Lens Type:
Fixed
Maximum Focal Length:
2.80 mm
Lens Included:
Yes
Lens Mount Type:
Board Mount
Maximum Aperture:
f/1.6
Exposure
Shortest Shutter Speed:
1/64000 Second
Longest Shutter Speed:
1/30 Second
Network & Communication
Connectivity Technology:
Wired
Remote Management:
Yes
Storage
Storage Type:
Memory Card
Interfaces/Ports
Network (RJ-45):
Yes
Power Description
Input Voltage:
12 V DC
Physical Characteristics
Mount Type:
- Pole Mount
- Junction Box Mount
- Bracket Mount
Form Factor:
Mini Bullet
Durability:
- Weather Proof
- Vandal Proof
Height:
2.6"
Width:
2.6"
Depth:
6.1"
Weight (Approximate):
1.04 lb
Environmental Conditions
Minimum Operating Temperature:
-22°F (-30°C)
Maximum Operating Temperature:
140°F (60°C)
Operating Humidity:
95%
Miscellaneous
Features:
- Day/Night
- Built-in IR LED
- Wide Dynamic Range
- Removable IR Cut-off Filter
- White Balance
- Back Light Compensation (BLC)
- Auto Gain Control
- 2D Digital Noise Reduction (2DNR)
- 3D Digital Noise Reduction
- Privacy Masking
- Tamper Detection
- Cross Line Detection
- Face Detection
- Motion Detection
- HTTPS Encryption
- Password Protection
- SD Card Local Storage
Indoor/Outdoor:
Outdoor
Impact Protection Rating:
IK10
Ingress Protection Rating:
IP68
Warranty
Limited Warranty:
3 Year
Item Numbers
UNSPSC:
46171610
Get help from a Barcoding Expert!

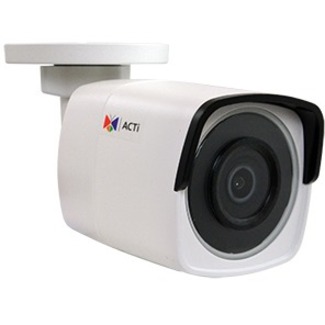

The ACTi A310 Security Camera is also known as
ACI-A310
