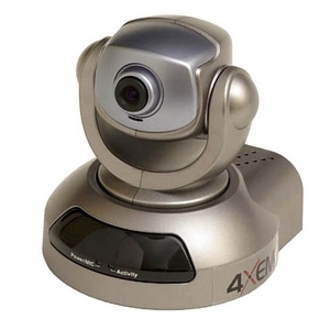

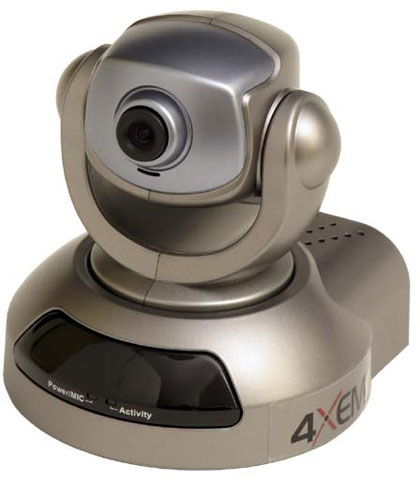

4XEM IPCAMWPT Security Camera

Part Number: IPCAMWPT
Model: IPCAMWPT

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Image Sensor Type
CCD
White Balance Modes
Auto
Maximum Illumination
1 lux
Color Supported
Color

Product Description:

  4XEM WPT Pan/Tilt IP Network Camera - Color - CCD - Cable

4XEM IPCAMWPT Security Camera Model Overview

4XEM's full function WPT wired IP Network Camera features a 1/4" CCD Image Sensor, MPEG 4 video compression, Generic I/O Ports (1 input, 1 output), a sensitive microphone and Pan/Tilt movement. Connections are also available for an external microphone and for audio output. The WPT IP Network Camera is ideal for demanding applications that require connection to external alarms and Pan/Tilt functionality for surveillance areas that are larger than the viewing span of one stationary IP camera.
4XEM IPCAMWPT Security Camera Overview

4XEM's full function WPT wired IP Network Camera features a 1/4" CCD Image Sensor, MPEG 4 video compression, Generic I/O Ports (1 input, 1 output), a sensitive microphone and Pan/Tilt movement. Connections are also available for an external microphone and for audio output. The WPT IP Network Camera is ideal for demanding applications that require connection to external alarms and Pan/Tilt functionality for surveillance areas that are larger than the viewing span of one stationary IP camera.

Display & Graphics
Image Sensor Type:
CCD
White Balance Modes:
Auto
Maximum Illumination:
1 lux
Color Supported:
Color
Tilt:
90° to 45°
Swivel:
135° to 135°
Video
Video Formats:
MPEG-4
Maximum Video Resolution:
704 x 480
Lens
Lens Type:
Zoom
Minimum Focal Length:
4.30 mm
Maximum Focal Length:
4.30 mm
Minimum Aperture:
f/2
Digital Zoom:
4x
Exposure
Shortest Shutter Speed:
1/100000 Second
Longest Shutter Speed:
1/60 Second
Network & Communication
Connectivity Technology:
Wired
Ethernet:
Yes
Ethernet Technology:
Fast Ethernet
Protocols:
  • TCP/IP
  • HTTP
  • SMTP
  • FTP
  • Telnet
  • NTP
  • DNS
  • DDNS
  • UPnP
  • DHCP
Storage
Flash Memory Capacity:
16 MB
Internal Memory:
16 MB
Controls/Indicators
Status Indicators:

LED Indicators:

  • Dual color system status indicator
Power Description
Maximum Power Consumption:
8.40 W
Input Voltage:
12 V DC
Physical Characteristics
Height:
4.5"
Width:
4.1"
Depth:
4.1"
Weight (Approximate):
13.93 oz
Miscellaneous
Package Contents:
  • WPT Pan/Tilt IP Network Camera
  • 16 Channel Software
  • Mounting Bracket
  • Power Adaptor
Additional Information:
  • Built-in intelligent motion detection
  • Three motion detection windows
  • Built-in microphone
  • CPU: Trimedia PNX1300
  • ROM: 2MB FLASH ROM
  • Microphone:
  • Omni-directional
  • Frequency: 20 ~ 20000Hz
  • S/N Ratio: More than 58dB
System Requirements:

OS:

  • Microsoft Windows XP
  • Microsoft Windows 2000
  • Microsoft Windows Me
  • Microsoft Windows 98SE

Browser:

  • Internet Explorer 5.x or above
Compatibility:
  • NTSC
Certifications & Standards:

EMI & Safety:

  • CE
  • FCC
Platform Supported:
PC
Warranty
Limited Warranty:
1 Year
Item Numbers
UNSPSC: 46171610
