4XEM IPCAMW40 Security Camera

The 4XEM IPCAMW40 Security Camera has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
4XEM IPCAMW40 - 4XEM W40 IP Network Camera - Color - CMOS - Cable
  • Network camera - Helps achieve high-quality video results
  • CMOS sensor is cheaper as compare to CCD and consumes less power while producing better HD videos
  • Up to 640 x 480 video resolution
Read More
Discontinued Need Assistance?
Add to Quote
4XEM IPCAMW40 Security Camera Model Overview

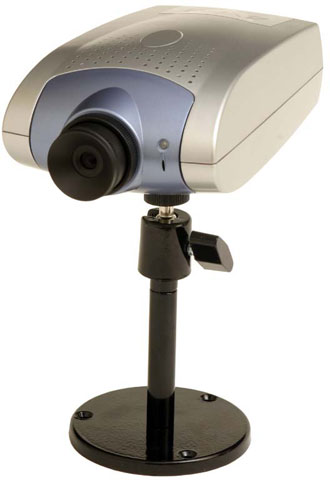

4XEM's IPCAMW40 wired IP Network Camera features a 1/4" CMOS Image Sensor, MPEG 4 video compression, Generic I/O Ports (1 input, 1 output) and a sensitive microphone. This IP Network Camera is ideal for applications that require one-way audio such as audio surveillance, reception points, remote instruction and simple video conferencing.
4XEM IPCAMW40 Security Camera Overview

4XEM's W40 wired IP Network Camera features a 1/4" CMOS Image Sensor, MPEG 4 video compression, Generic I/O Ports (1 input, 1 output) and a sensitive microphone. This IP Network Camera is ideal for applications that require one-way audio such as audio surveillance, reception points, remote instruction and simple video conferencing. An optional enclosure makes the W40 suitable for outdoor use. Bundled software allows monitoring and control of up to 16 IP Cameras from any web browser, and the quick and simple installation means you will be up in minutes viewing streamed video. The motion detection feature will trigger still image capture and send the image via e-mail or to an FTP location.

Display & Graphics
Image Sensor Type:
CMOS
White Balance Modes:
Auto
Minimum Illumination:
1.5 lux
Maximum Illumination:
10000 lux
Color Supported:
Color
Video
Video Formats:
MPEG-4
Maximum Video Resolution:
640 x 480
Lens
Lens Mount Type:
CS-Mount
Minimum Aperture:
f/2
Digital Zoom:
4x
Focus Modes:
Fixed Focus
Exposure
Shortest Shutter Speed:
1/15000 Second
Longest Shutter Speed:
1/60 Second
Network & Communication
Connectivity Technology:
Wired
Ethernet:
Yes
Ethernet Technology:
Fast Ethernet
Protocols:
  • TCP/IP
  • HTTP
  • SMTP
  • FTP
  • Telnet
  • NTP
  • DNS
  • DDNS
  • UPnP
  • DHCP
Storage
Flash Memory Capacity:
8 MB
Internal Memory:
8 MB
Controls/Indicators
Status Indicators:

LED Indicators:

  • Dual color system status indicator
Power Description
Maximum Power Consumption:
5.40 W
Input Voltage:
12 V DC
Physical Characteristics
Height:
2.3"
Width:
3.5"
Depth:
5.4"
Weight (Approximate):
7.83 oz
Miscellaneous
Package Contents:
  • W40 IP Network Camera
  • Mounting Bracket
  • Power Adaptor
  • 16 Channel Software
Additional Information:
  • Built-in camera and high sensitive microphone
  • Built-in web server
  • Motion detection with three sensitive windows
  • CPU: Trimedia PNX1300
  • ROM: 2MB FLASH ROM
System Requirements:

OS:

  • Microsoft Windows 98 SE
  • Microsoft Windows ME
  • Microsoft Windows 2000
  • Microsoft Windows XP

Browser:

  • Internet Explorer 5.0 or above
Compatibility:
  • NTSC
Certifications & Standards:

EMI & Safety:

  • CE
  • FCC
Platform Supported:
PC
Warranty
Limited Warranty:
1 Year
Item Numbers
GTIN: 0873791000173
UPC: 873791000173
EAN: 0873791000173
UNSPSC: 46171610
