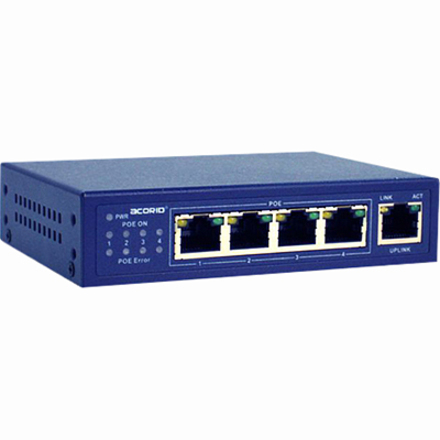

4XEM 4XLS5004P255 Data Networking

4XEM - 4XEM 4-Port PoE+(Plus) 25.5Watt 10/100Mbps Ethernet Switch, 4 Ports, Fast Ethernet, 10/100Base-TX, 2 Layer Supported, Twisted Pair, PoE Ports, Desktop, 1 Year Limited Warranty
  • Effectively increases available bandwidth on your network
  • With PoE+ Port, transfer data and up to 25.5 W of power on a single cable to?places where a power outlet is not present
  • Create your own LAN and connect your PC, laptop, printer and other peripherals with the help of 4 ports
  • Power Supply power source for a reliable connection even during power outages
  • Layer 2 switch provides a complete lineup of features including IGMP snooping, port mirroring, and spanning tree
  • Desktop form factor for added reliability and dependability
  • Fast Ethernet technology gives ideal solution for extending network connections to conference rooms, labs, lobbies and department workgroups
  • Twisted Pair media support for efficient and reliable connectivity
Read More
$82.08
Add to Quote
4XEM Parts Security Camera Model Overview
Products and parts from 4XEM.
4XEM 4XLS5004P255 Data Networking Overview

With 25.5 watt Power over Ethernet (PoE) available on all 4 ports, 4XEM'S 4-Port PoE+ 10/100M Desktop Switch (4XLS5004P255) delivers fast 10/100Mbps Ethernet network capabilities plus industry-standard IEEE 802.3af 25.5 watt power over UTP Cat 5 or higher to network devices requiring higher power needs. Works right out of the box, with no software to configure. A simple, cost-effective, and highly reliable network data connection, it makes a great solution for expanding your home or office network.

Problem it solves: No separate power supplies or power outlets needed. Drive up to 4 high powered IEEE 802.3af compliant devices with this hard working, high performing PoE+ switch.

4XEM gear is respected industry wide for its high performance, premium quality and durability.

More from the Manufacturer

Interfaces/Ports
Total Number of Network Ports:
4
Token Ring Port:
No
LRE Port:
No
Uplink Port:
Yes
Bypass:
No
Number of PoE+ (RJ-45) Ports:
4
Port/Expansion Slot Details:
4 x Fast Ethernet Network
Media & Performance
Media Type Supported:
Twisted Pair
Twisted Pair Cable Standard:
Category 5
Ethernet Technology:
Fast Ethernet
Network Technology:
10/100Base-TX
Network & Communication
Layer Supported:
2
Power Description
PoE (RJ-45) Port:
Yes
Power Source:
Power Supply
Physical Characteristics
Form Factor:
Desktop
Weight (Approximate):
10.58 oz
Miscellaneous
Certifications & Standards:
IEEE Standards:
  • 802.3i
  • 802.3x
  • 802.3af
  • 802.3at

Electromagnetic Emissions"

  • CE mark,commercial
  • FCC Part 15 class B
  • C tick
  • EN55024
  • VCCI Class B
  • EN55022,ClassB

Safety:

  • CE Mark,commercial
  • CE/LVD EN60950
Warranty
Limited Warranty:
1 Year
Item Numbers
GTIN: 0873791006670
UPC: 873791006670
EAN: 0873791006670
UNSPSC: 43222612
