3M Touch Systems 41-81365-227 Touchscreen


0.0

(No reviews)

Be the first to

Write a Review

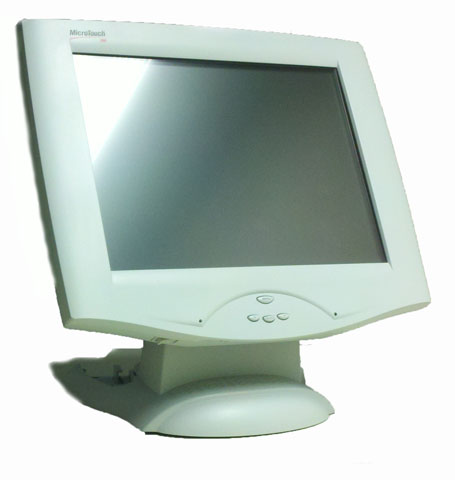

3M Touch Systems M150 FPD Touch Monitor - FPD Touch Monitor, 15 inch resistive LCD, with serial controller & multimedia speakers, beige.
Compact and adjustable

The M150 FPD monitor is offered with proven touch screen technology from 3M Touch Systems. MicroTouch ClearTek capacitive touch technology provides accuracy and sensitivity to the user's touch while offering outstanding durability. ClearTek provides scratch resistance and contaminant-resistance to dirt, liquids, and harsh chemicals. MicroTouch Resistive 5-wire touch technology provides fast, accurate, and reliable touch when input flexibility is the most important consideration. All monitors ship with cable and power supply.

Technical Information

  • Touch Screen Type: 5 Wire Resistive
  • Screen Size: 15" - Active Matrix TFT LCD
  • Dot Pitch: 0.297mm
  • Monitor Response Time: 16ms Typical
  • Mountable: VESA
  • Front Panel Controls: Menu Adjust Select Power
  • OSD Controls: Brightness Contrast Horizontal Position Vertical Position Clock Phase Auto Phase Color

General Information

  • Manufacturer: 3M
  • Product Line: MicroTouch
  • Product Name: MicroTouch M150 Touch Screen Monitor

Physical Characteristics

  • Color: Beige
  • Dimensions: 398.3mm (16") x 408mm (16") x 258.7mm (10") - Depth Includes Base
  • Weight: 7.4 kg (16.31 lb) - Net

Interfaces/Ports

  • Interfaces:
    • 15-pin - HD DB-15
    • Serial
    • Audio Input
    • Audio Output

Environmental Conditions

  • Temperature:
    • 0°C (32°F) to 50°C (122°F) Operating
    • -20°C (-4°F) to 60°C (140°F) Storage
  • Humidity: 85% Operating Non-condensing

Display & Graphics

  • Maximum Resolution: 1024 x 768
  • Brightness: 250 cd/m2
  • Ratio: 350:1 - Contrast Ratio

Power Description

  • Input Voltage: 12 V DC
  • Power Consumption: 28W - Normal Operation
  • Power Management: VESA DPMS

Agency Approvals

  • Agency Approvals: RoHS Compliant FCC Class B CE UL/cUL C-Tick VCCI CCC

Other

  • Additional Information: Color: 16 Millions Colors Viewing Angle: Horizontal: 150° Vertical: 135°

Warranty

  • Manufacturer Warranty: 3 Year(s) Limited

Full specifications (PDF)
