3M Touch Systems 11-91375-225 Touchscreen


(No reviews)

Be the first to

Write a Review

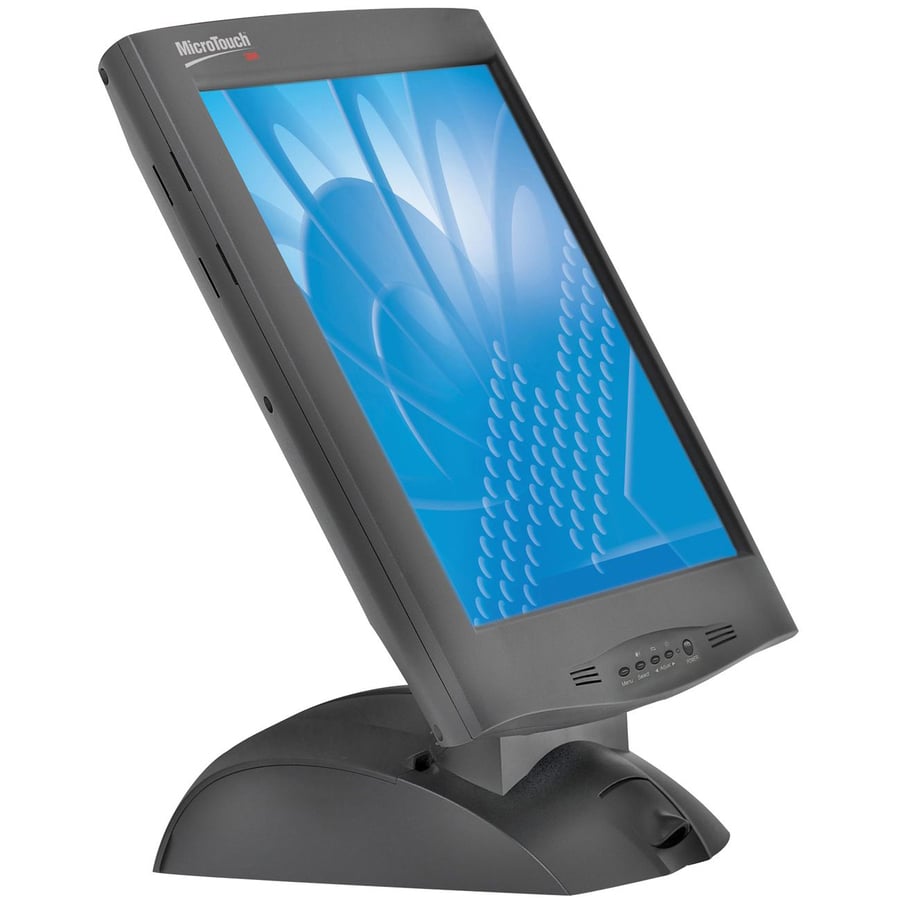

3M Touch Systems M170 FPD Touch Monitor - 17" LCD, ClearTek II touch screens, with USB controller & multimedia speakers, black.

The M170 FPD monitor is offered with proven touch screen technology from 3M Touch Systems. MicroTouch ClearTek capacitive touch technology provides accuracy and sensitivity to the user's touch while offering outstanding durability. ClearTek provides scratch resistance and contaminant-resistance to dirt, liquids, and harsh chemicals. MicroTouch Resistive 5-wire touch technology provides fast, accurate, and reliable touch when input flexibility is the most important consideration. All monitors ship with cable and power supply.

Technical Information

  • Touch Screen Type: Capacitive
  • Screen Size: 17" - Active Matrix TFT LCD
  • Dot Pitch: 0.264mm
  • Monitor Response Time: 16ms Typical
  • Mountable: Wall Mountable - VESA
  • Front Panel Controls:
    • Menu Adjust Select Power
    • MenuAdjustSelectPower
  • OSD Controls:
    • Brightness Contrast Horizontal Position Vertical Position Clock Phase Auto Config Color Recall
    • BrightnessContrastHorizontal PositionVertical PositionClockPhaseAuto ConfigColorRecall

General Information

  • Manufacturer: 3M
  • Product Line: MicroTouch
  • Product Name: MicroTouch M170 Touch Screen Monitor

Physical Characteristics

  • Color: Black
  • Dimensions:
    • 413.3mm (16") x 405mm (16") x 247mm (10") - Depth Includes Base
    • 413.3mm (16") x 405mm (16") x x 247mm (10") - Depth Includes Base
  • Weight: 8.6 kg (18.96 lb)


  • Interfaces:
    • 15-pin - HD DB-15
    • DVI-I
    • USB
    • Audio Input
    • Audio Output

Environmental Conditions

  • Temperature:
    • 0°C (32°F) to 40°C (104°F) Operating
    • -20°C (-4°F) to 60°C (140°F) Storage
  • Humidity: 80% Operating Non-condensing


  • Additional Information:
    • Display Colors: 16.7 Million Color Backlight Life: 40000 Hours User-Lockable OSD Controls 5-year Touch Sensor and Components Warranty Viewing Angle: Horizontal: 160° Vertical: 160°
    • Display Colors: 16.7 Million ColorBacklight Life: 40000 HoursUser-Lockable OSD Controls5-year Touch Sensor and Components WarrantyViewing Angle:Horizontal: 160°Vertical: 160°

Display & Graphics

  • Maximum Resolution: 1280 x 1024
  • Brightness: 344 cd/m2
  • Ratio: 450:1 - Contrast Ratio

Agency Approvals

  • Agency Approvals:
    • RoHS Compliant FCC Class B CE UL cUL C-Tick VCCI CCC
    • RoHS CompliantFCC Class BCEULcULC-TickVCCICCC

Power Description

  • Input Voltage: 12 V DC
  • Power Consumption: 25W - Normal Operation
  • Power Management: VESA DPMS


  • Manufacturer Warranty: 3 Year(s)

Full specifications (PDF)

Full specifications (PDF)

Brand 3M Touch Systems
Model M170 FPD
Screen Size 17
Display Type LCD
Touch Technology Capacitive
Form Factor Desktop
Color Black
Interface USB
