Full specifications (PDF)
Screen Size Class:
15"
Viewable Screen Size:
15"
Screen Mode:
XGA
Response Time:
25 ms

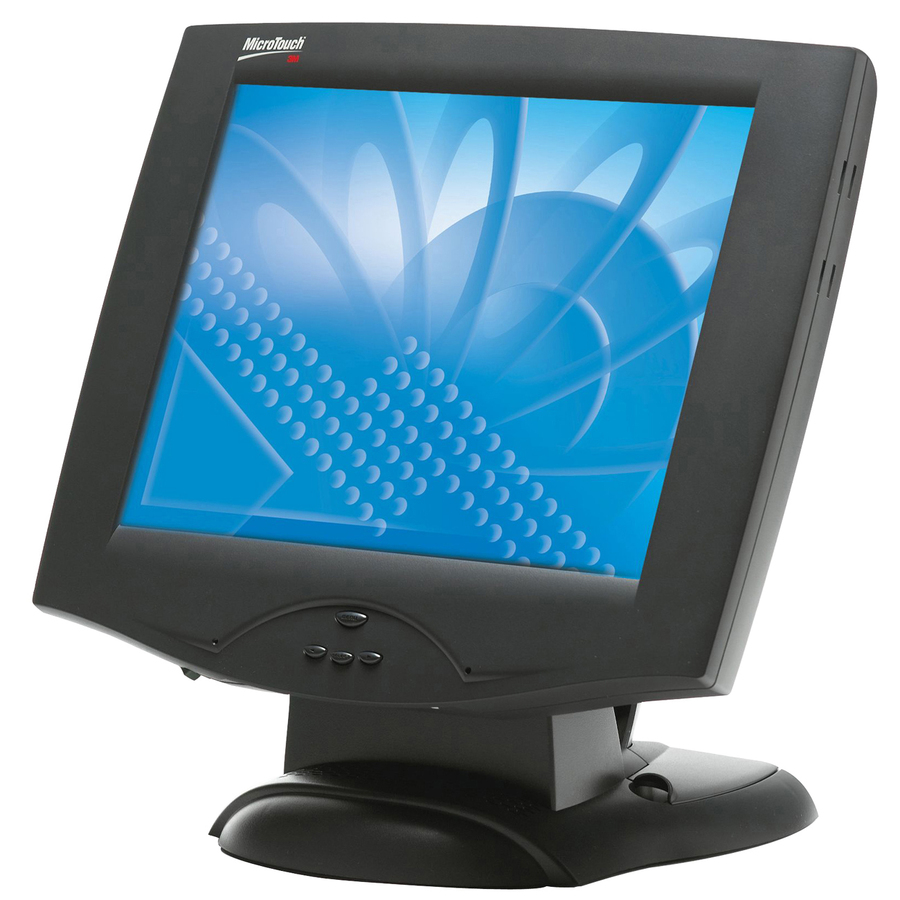

3M Touch Systems M150HB Touchscreen Model Overview
The 3M-MicroTouch M150HB High Brightness 15" LCD Touch Monitor delivers enhanced display performance in a built-for-touch form factor. With 550 nit brightness and a 500:1 contrast ratio, this touch screen monitor is ideal for a multitude of applications, and excels in high ambient light environments where standard display panels could "wash-out" or look dim. The M150HB High Brightness features enhanced brightness and contrast which also helps produce more vivid, distinct colors - giving graphics and color intensive applications ideal visual appeal.
3M Touch Systems 11-81376-225 Touchscreen Overview
The MicroTouch M150HB 15" LCD Touch Monitor delivers enhanced display performance in a built-for-touch form factor. With 500 Nit brightness and a 500:1 contrast ratio, this touch screen monitor is ideal for a multitude of applications, and excels in high ambient light environments where standard display panels could "wash-out" or look dim. The enhanced brightness and contrast also help produce more vivid, distinct colors - giving graphics and color intensive applications ideal visual appeal.
Technical Information
Video
Maximum Resolution:
1024 x 768
Color Supported:
16.7 Million Colors
Color Depth:
24-bit
Contrast Ratio:
500:1
Brightness:
500 Nit
Touchscreen Information
Touchscreen:
Yes
Touchscreen Type:
Capacitive
Interfaces/Ports
USB:
Yes
VGA:
Yes
Power Description
Input Voltage:
12 V DC
Physical Characteristics
Color:
Black
Height with Stand:
15.70"
Width with Stand:
16.10"
Depth with Stand:
10.20"
Weight (Approximate):
16.31 lb
Miscellaneous
Platform Supported:
PC
Warranty
Limited Warranty:
3 Year
Item Numbers
GTIN:
0511287707334
UPC:
511287707334
EAN:
0511287707334
UNSPSC:
43211903
Questions? Get help from
a POS Expert!
a POS Expert!
The 3M Touch Systems 11-81376-225 Touchscreen is also known as
MCT-1181376225
or 11-81376-225.
